Solar Panel 150W

Product Description
$159.99
Or 10 interest free payments from $15.99 with What's this?
Maximum quantity available reached.

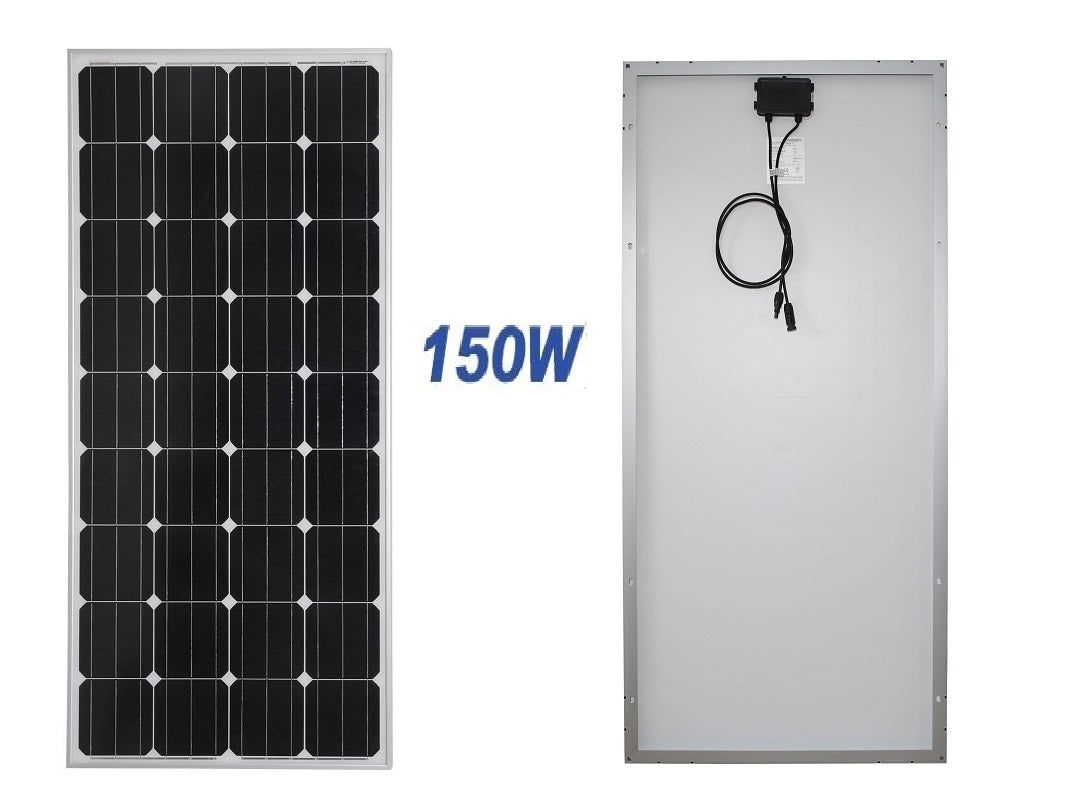

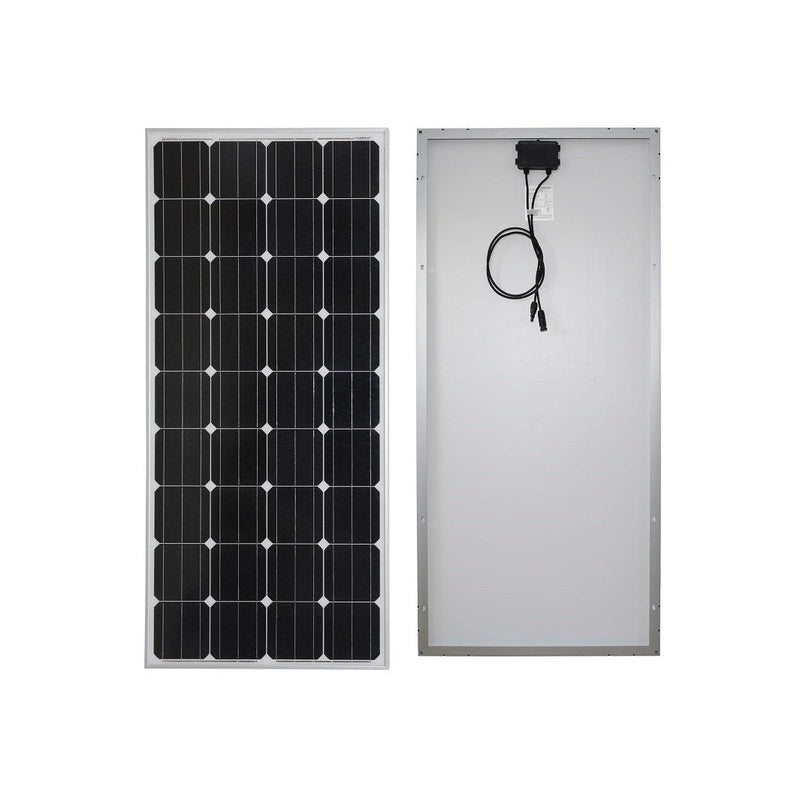

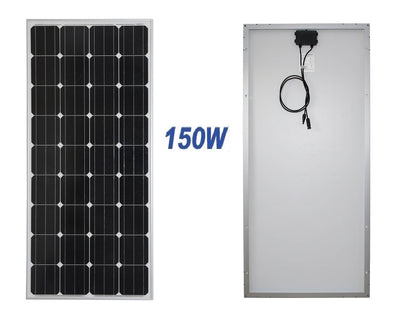

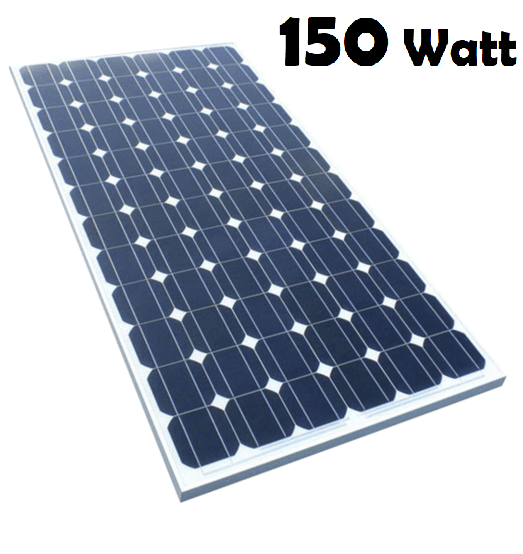

MONO 150W SOLAR PANEL ONLY

150w Mono-Crystalline Solar Panel Photo-voltaic for boat caravan home

Description

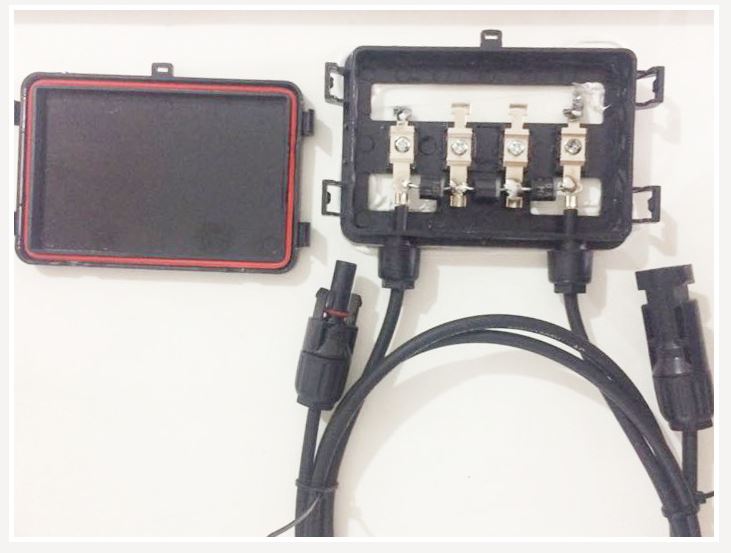

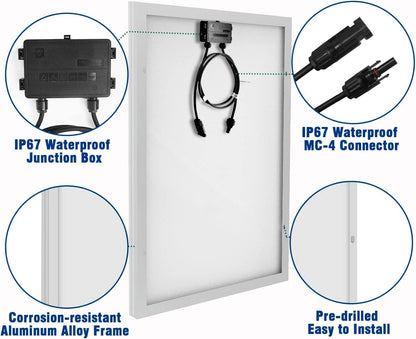

150w Lowenergie Mono-Crystalline Solar Panel with 1m cable & MC4 Connector Plugs
Maximum Power (Pmax): 150W
Maximum Power Voltage (VMP): 18.0V
Maximum Power Current (IMP): 8.33A
Open Circuit Voltage (VOC): 21.60V
Short Circuit Current (ISC): 9.17A
Weight: 9.85KG

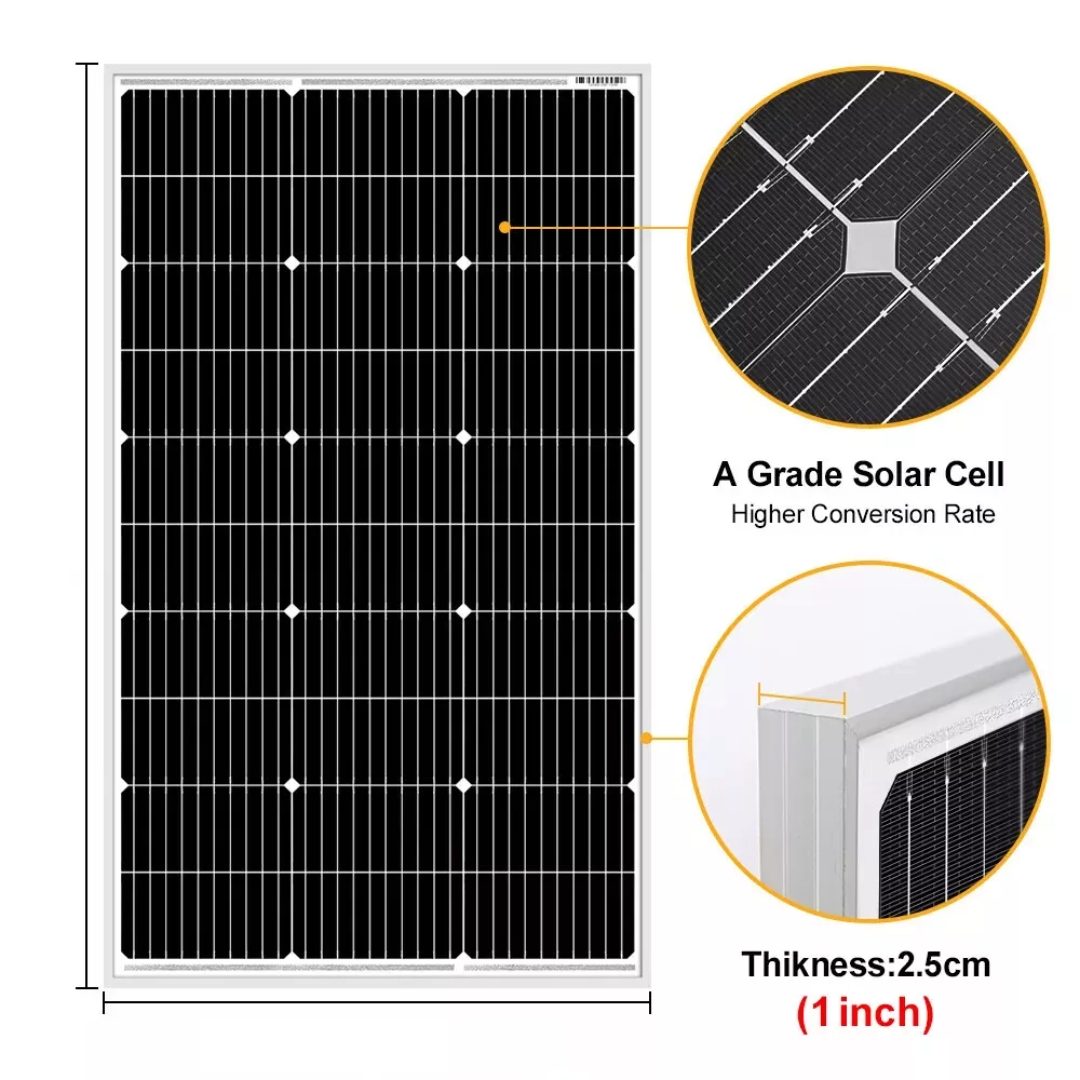

Size: 1480*680*35mm
Power Tolerance: +/-3%
Maximum System Voltage: DC1000V

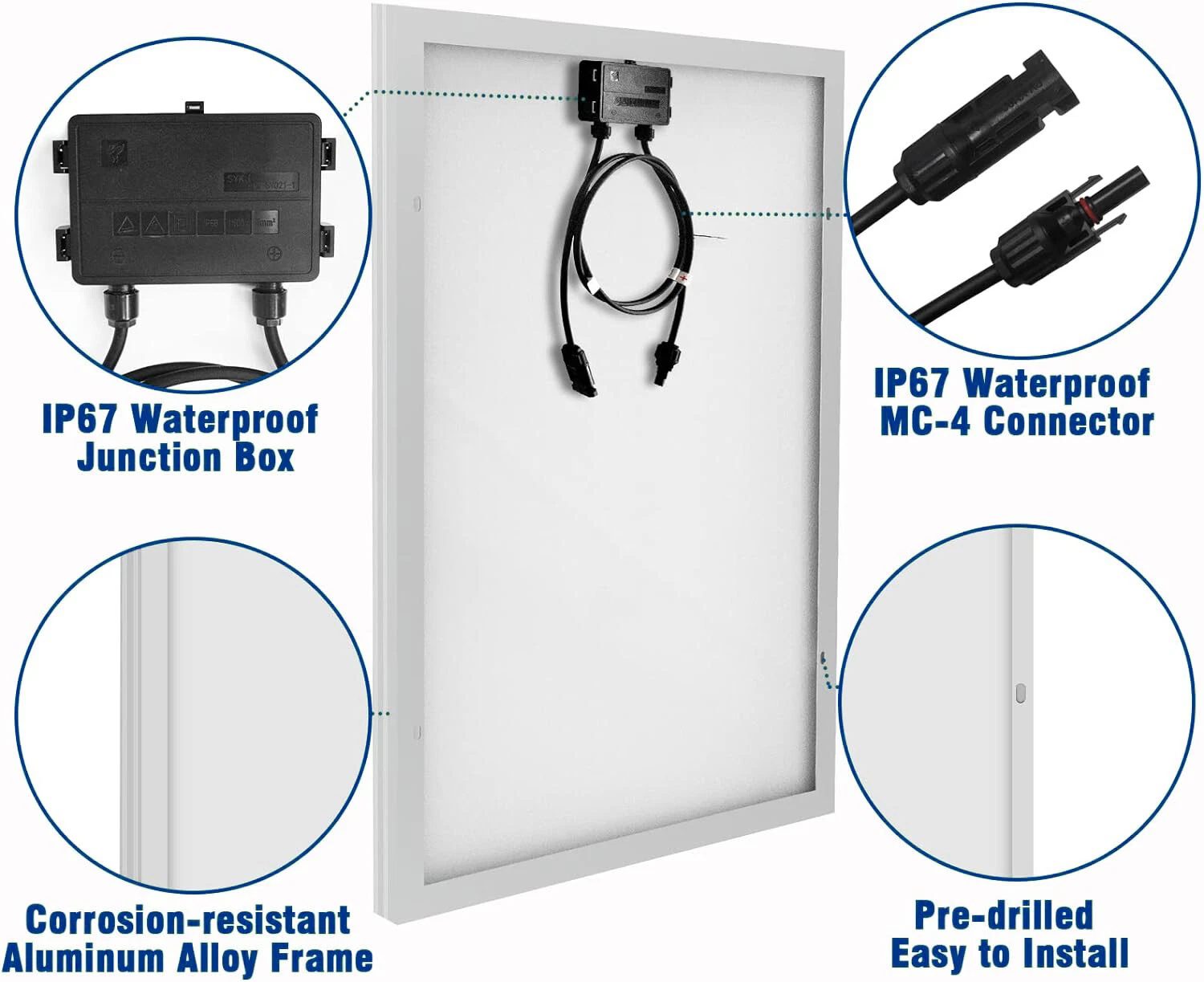

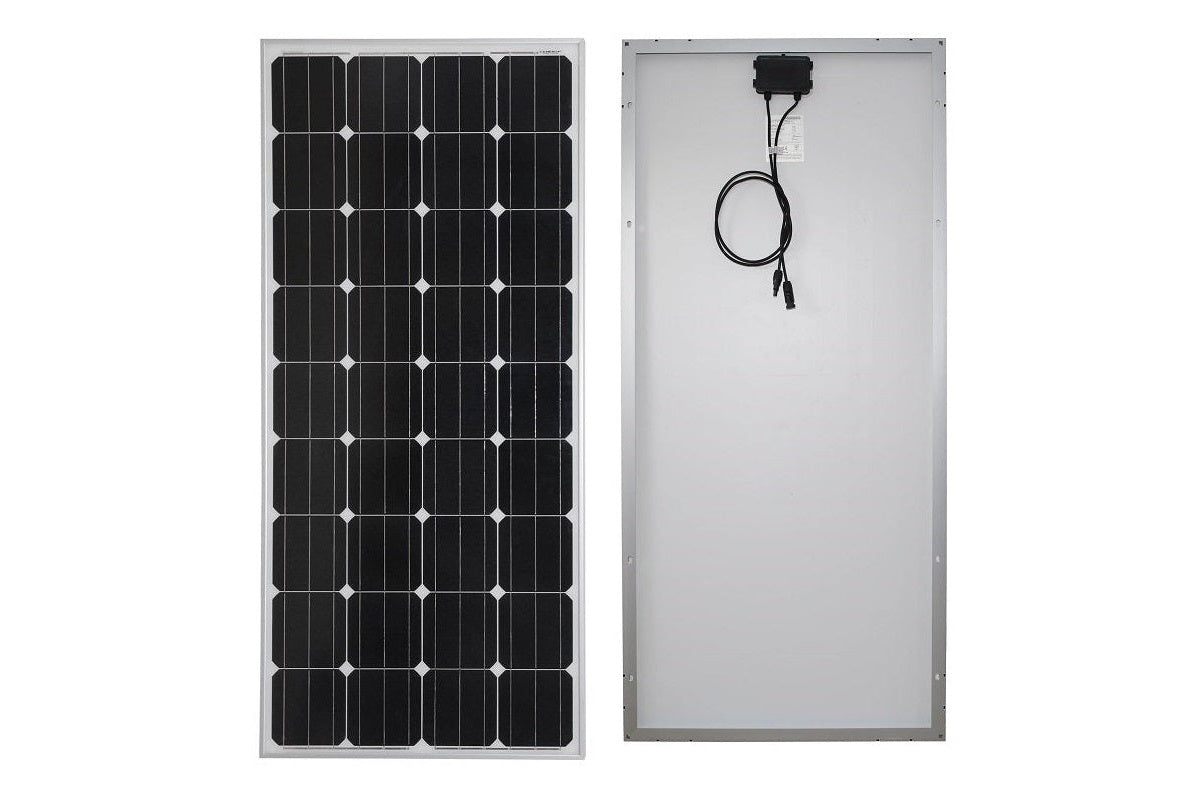

Lightweight design with rigid anodised aluminium alloy frame and toughened glass

Our Mono crystalline panels are 2 to 4% more efficient than polycrystalline.
Mono crystalline purest silicone 16-20% efficiency
performs better in lower light levels i.e. in overcast skies

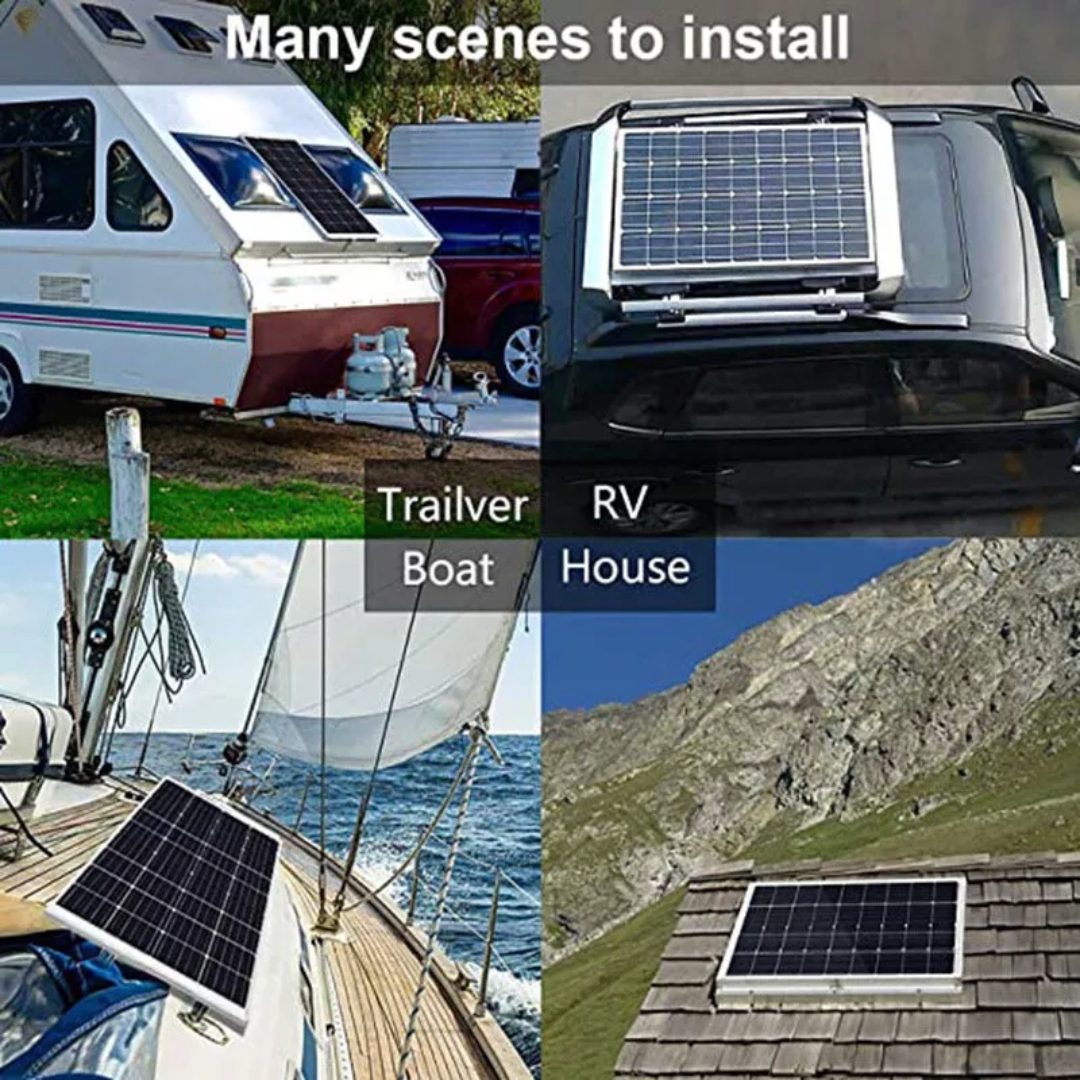

Applications
Sheds, Stables, Boats, Caravans, Motor homes, electric fencing, road/ path/ driveway illuminated signage, campsites, yurts, multi-panel off grid power source for small buildings, remote telecoms, mobile food outlets, and many more...

Product description:
Battery Voltage: 12V 24V Auto
Charging Current: 30A
Discharging Current: 30A
Max Solar input: 50V(for 24V battery) 25V(for 12V battery)
Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge: 13.7V(defaul,adjustable)
Discharge stop: 10.7V(defaul,adjustable)
Discharge reconnect: 12.6V(defaul,adjustable)
Operating temperature: -35?C~+60?C

Package Includes:
High-Efficiency 150w Mono-Crystalline Solar Panel

PWM 30A 12V/24V Auto Switch Charge Controller (Please send us an email if wish to add 30A PWM solar controller with LCD display, all adjustable parameter. Built-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.)

**Please note wiring as per photo no extra wiring including
