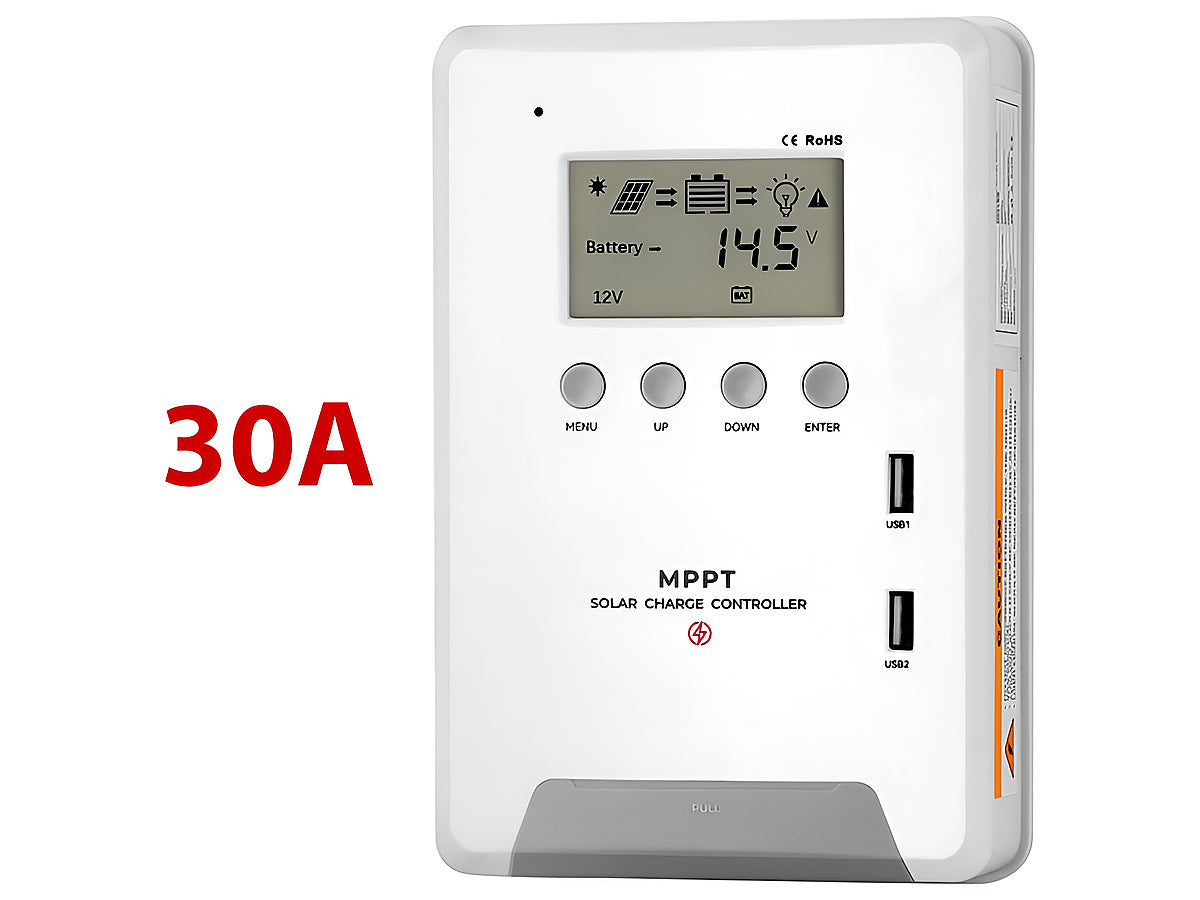

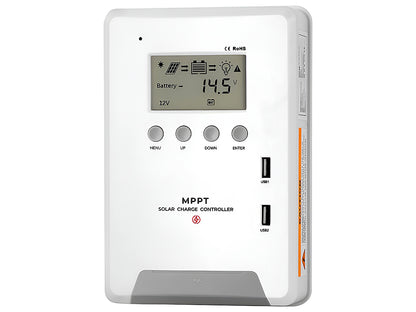

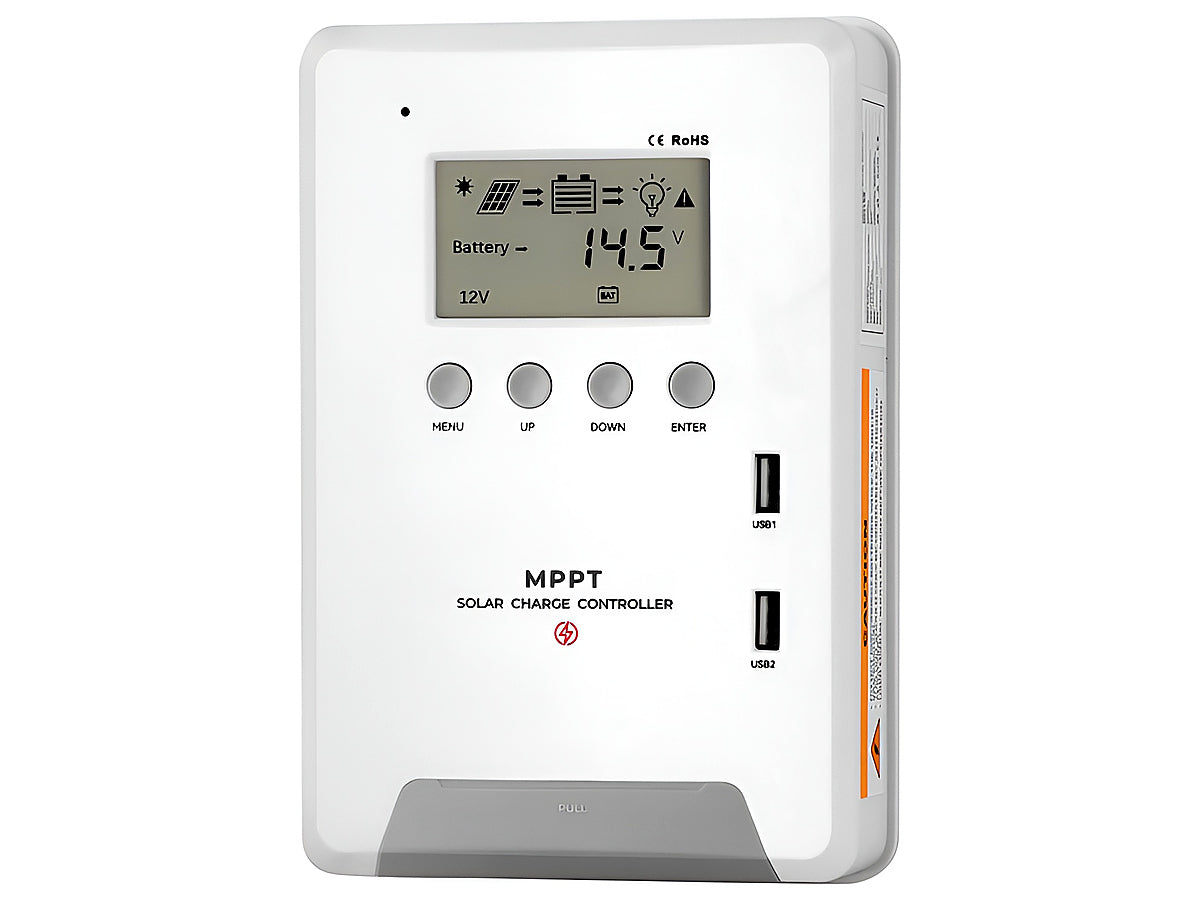

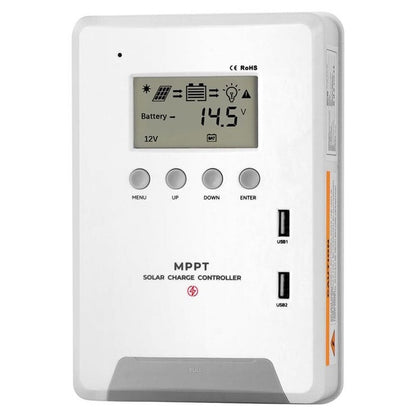

Solar Controller 30A MPPT

30A 12V/24V Solar Charge Controller MPPT Charge Controller with LCD Screen 5V 3A USB Port, Solar Controller for Lead Acid, Lithium and Lifepo4 Batteries

-Efficient MPPT technology: our solar 12v charge controller is equipped with a highly efficient chip and has peak power point tracking technology to improve the energy utilization of solar energy systems and a conversion efficiency ≥ 99% and PV utilization of ≥99% for efficient charging of SLD/FLD/GEL/AG. M lithium and lifelife,M po4 batteries.

-Circuit protection function: 12V 24V MPPT solar charge controller has insurance and protection devices to confirm the efficient and stable output of the system. Over charge/deep discharge/short circuit/battery open circuit/overheated temperature/battery over pressure/over current protection. Maximise the protection of the battery and extend the life of the battery.

-Automatic voltage detection: the mppt charge controller automatically detects the system voltage and supports 12 V/24 V lead-acid, lithium and Lifepo4 batteries. The maximum PV input voltage for solar charge controller is 80V

-Parameter setting with display: solar charge controller 12 V with simple LCD display for easy observation of charging data and parameter adjustment. If there is a fault, it will show the fault alarm. Easy to use buttons are adjustable for you at any time

-Dual USB Output: Supports charging multiple USB devices, including mobile phones, tablets, portable game consoles, Bluetooth headsets, digital cameras. Charge controller solar 12V MPPT suitable for off-grid solar energy systems such as solar motorhome, household system and industrial field monitoring, etc.

Specifications:
-Rated voltage: 12V/24V car
-Current: 30A
-Size: 193 x 132 x 63mm
-Application: Solar System Controller
-Max. PV input power:400W (12V), 800W (24V)
-Max. open circuit voltage:80V
-N.W:800G

Package includes:
1 x Solar Panel Battery Controller
1 x user manual
