Solar Panel

Product Description
$160.99
Maximum quantity available reached.

High modules conversion efficiency. Ideal output: 500-watt-hours per day (depends on sunlight availability)

Solar Panel Dimensions:1005x670x30mm

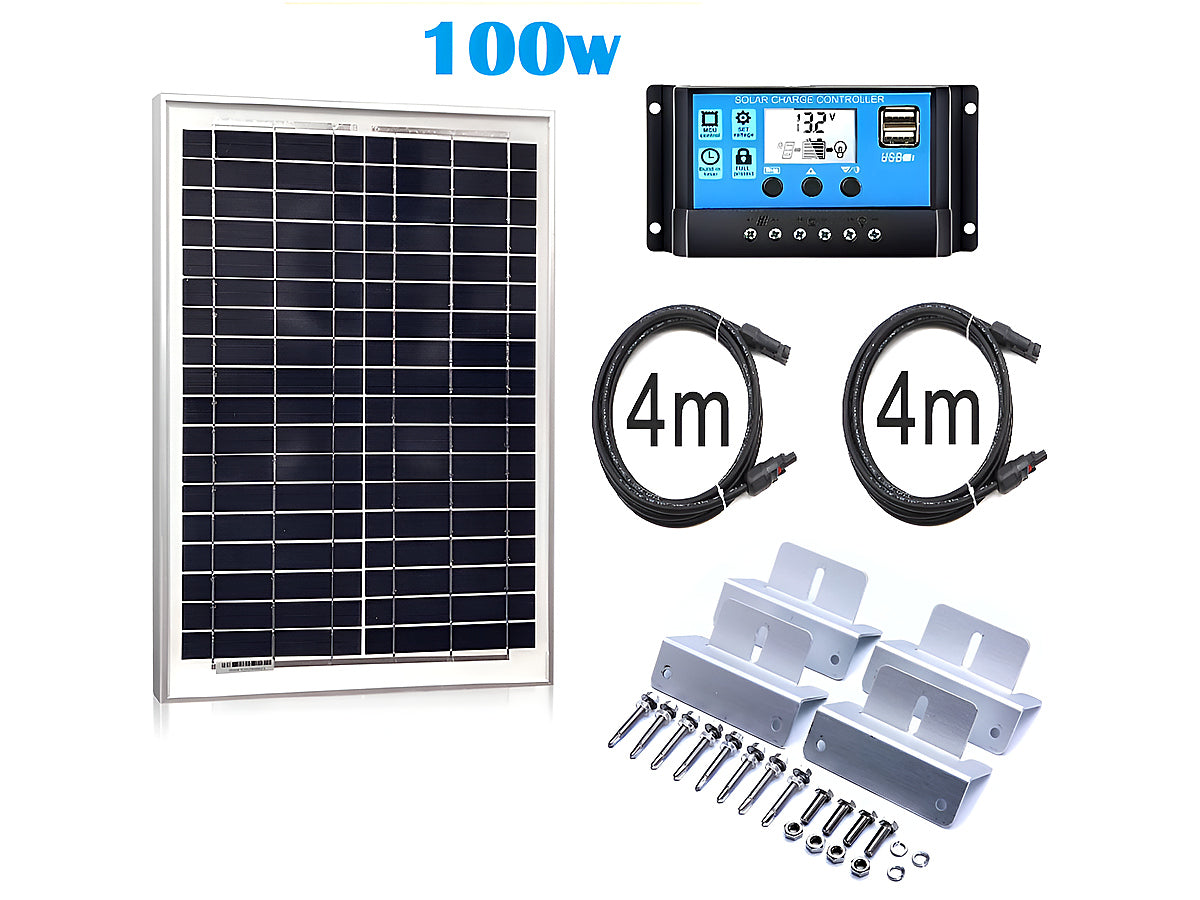

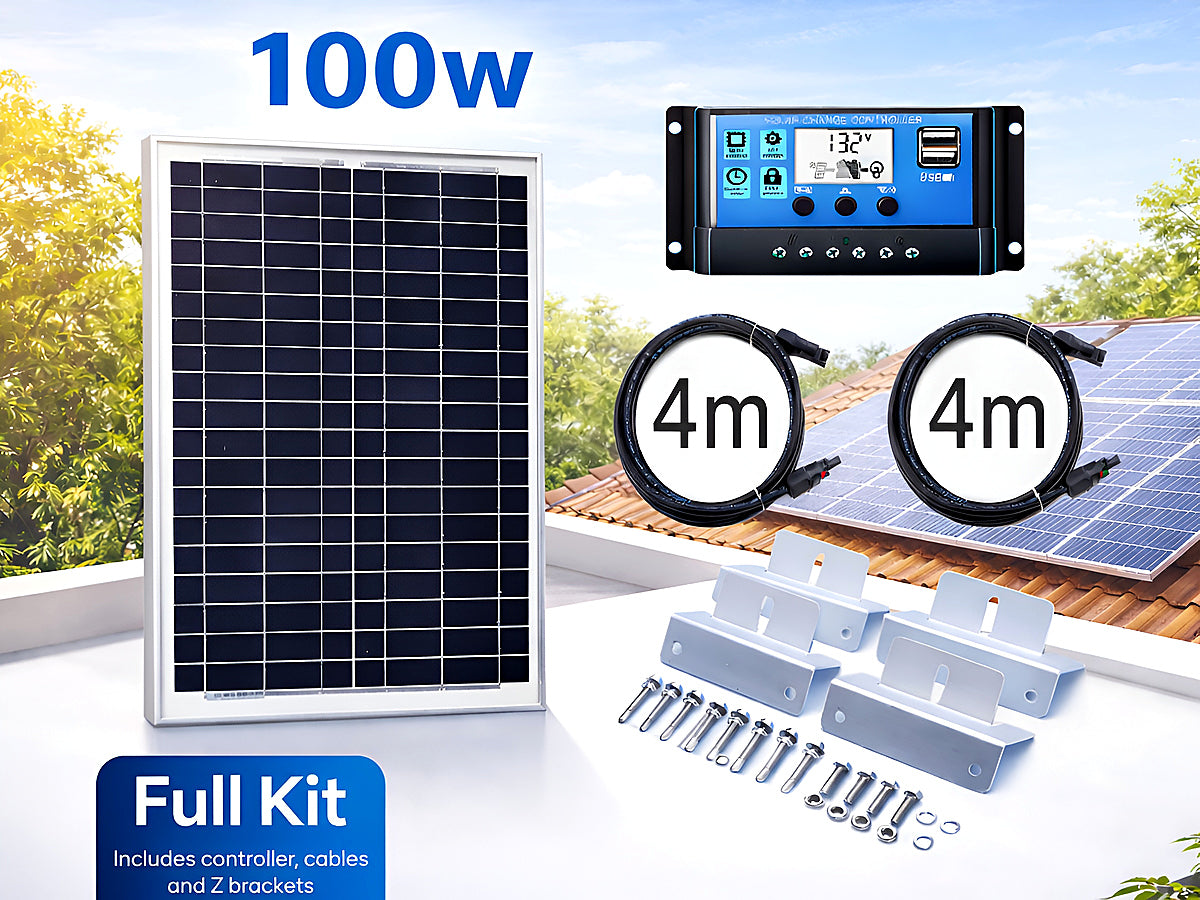

Package Includes:
1 x High-Efficiency 100w Poly Crystalline Solar Panel
1 x PWM 30A 12V/24V Auto Switch Charge Controller
2 x MC4 cables
1x Solar Mounting Kit


The low reflective Solar Panel properties of the 3.2mm Solar Panel safety/tempered Solar Panel glass front allows for maximum light absorption, while Solar Panel the low-iron content of the glass gives it more transparency Solar Panel than other types of glass for maximum solar production. A corrosion-resistant anodized aluminium frame surrounding the solar panel adds strength and allows for easy mounting.

Solar Panel Specifications for 100W poly-crystalline Solar Panel:

Solar Panel Maximum Power (Pmax) - 100W
Maximum Power Solar Panel Voltage (Vmpp) - 18.3V
Maximum Solar Panel Power Current (Impp) - 5.56A
Solar Panel Open Circuit Voltage (Voc) - 21.8V
Short Circuit Current Solar Panel (Isc) - 6.06A

Power Tolerance - 3%
Solar Panel Cell Efficiency: 20.60%
Module Efficiency Solar Panel STC - 18.40%
Operating Temperature Range - -40C - +85C Solar Panel
Solar Panel Number of Cells: 36
Cell Type:Trinasolar® Solar Panel
Maximum System Solar Panel Voltage - 1000V
Dimensions : Solar Panel 1040mm x 680mm x 35mm
Weight: 8kgs Solar Panel

Temperature Coefficient of Pmax : -0.435%/C
Solar Panel Temperature Coefficient of Voc : -0.35%/C
Temperature Coefficient of Solar Panel Isc : 0.043%/C
Normal Solar Panel Operating Cell Temperature : 47C +/- 2C

Wind Load: 2400Pascal
Solar Panel Snow Load: 5400Pascal
Warranty: 10Years Solar Panel

Vendor : Grabstore
