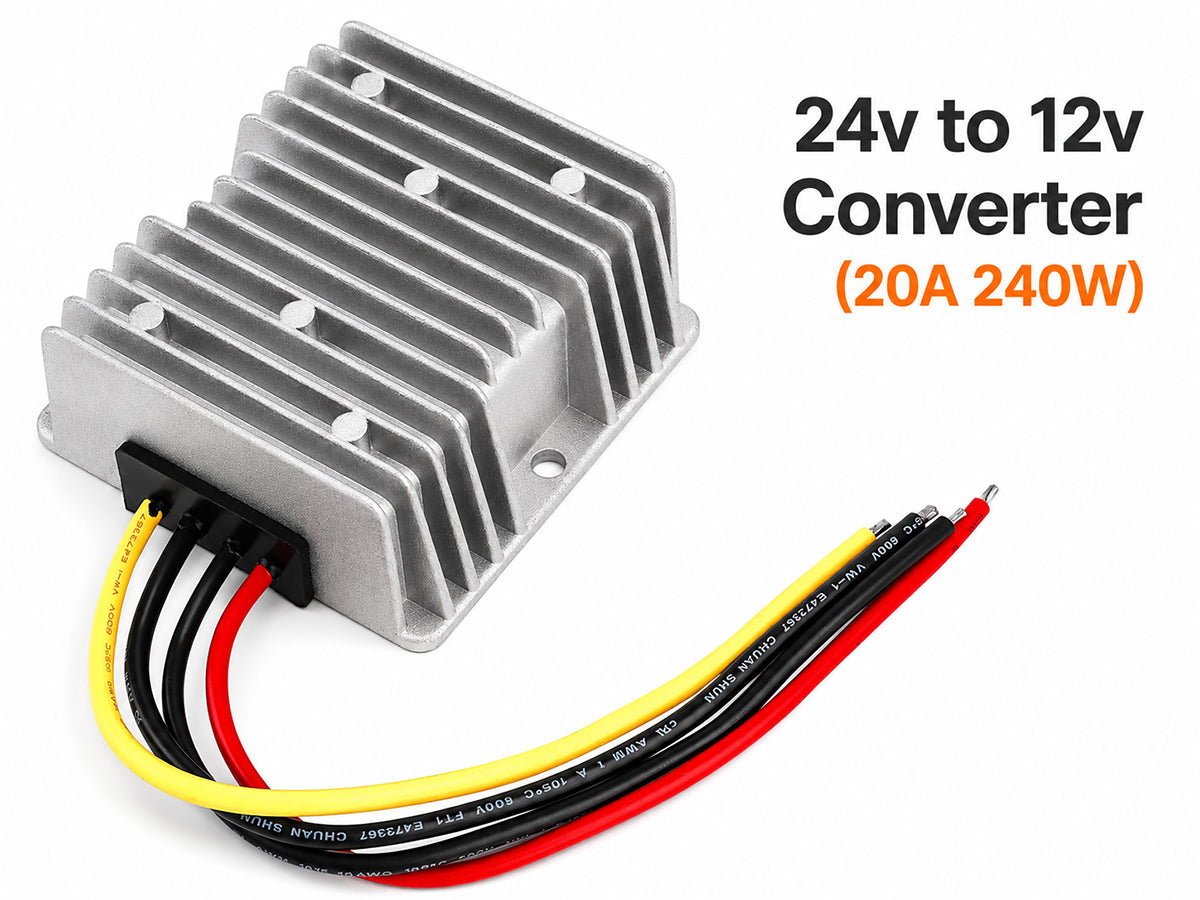

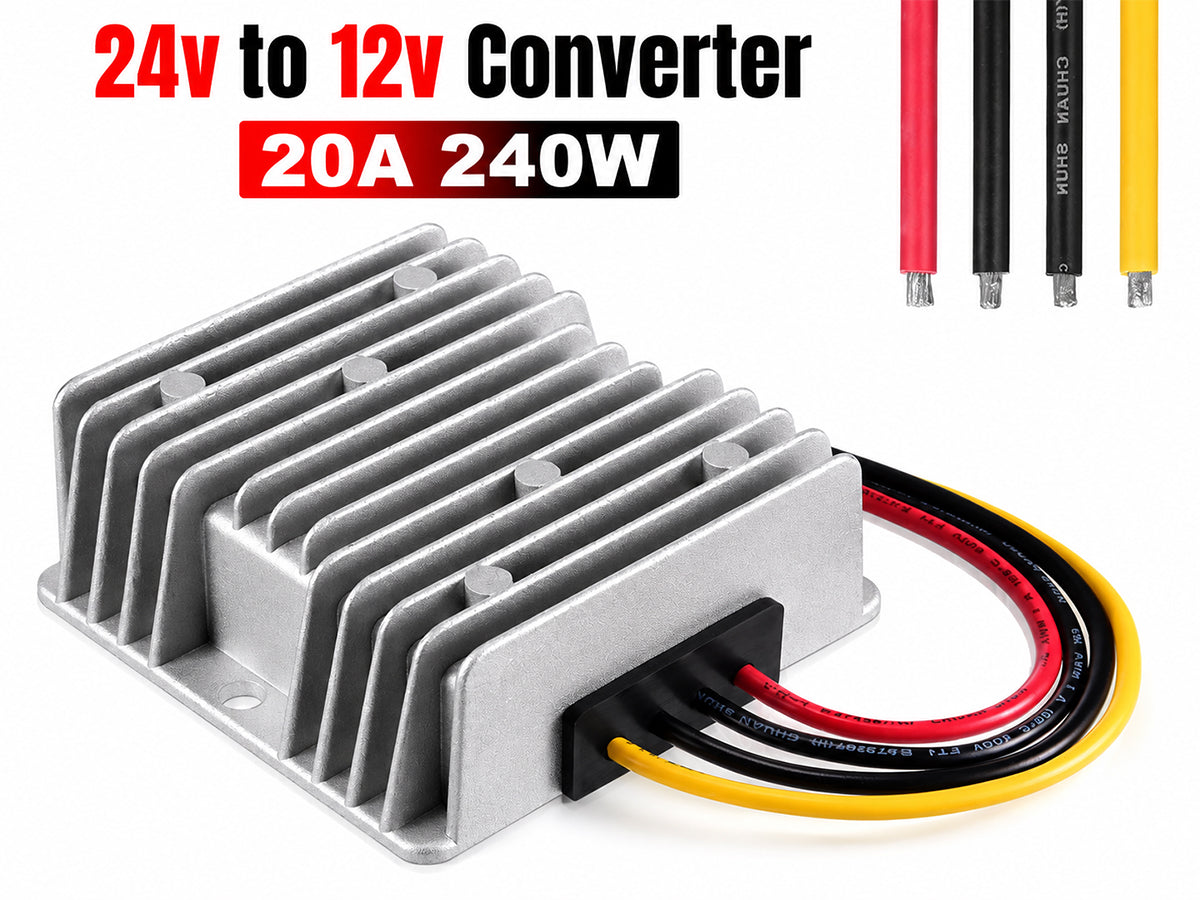

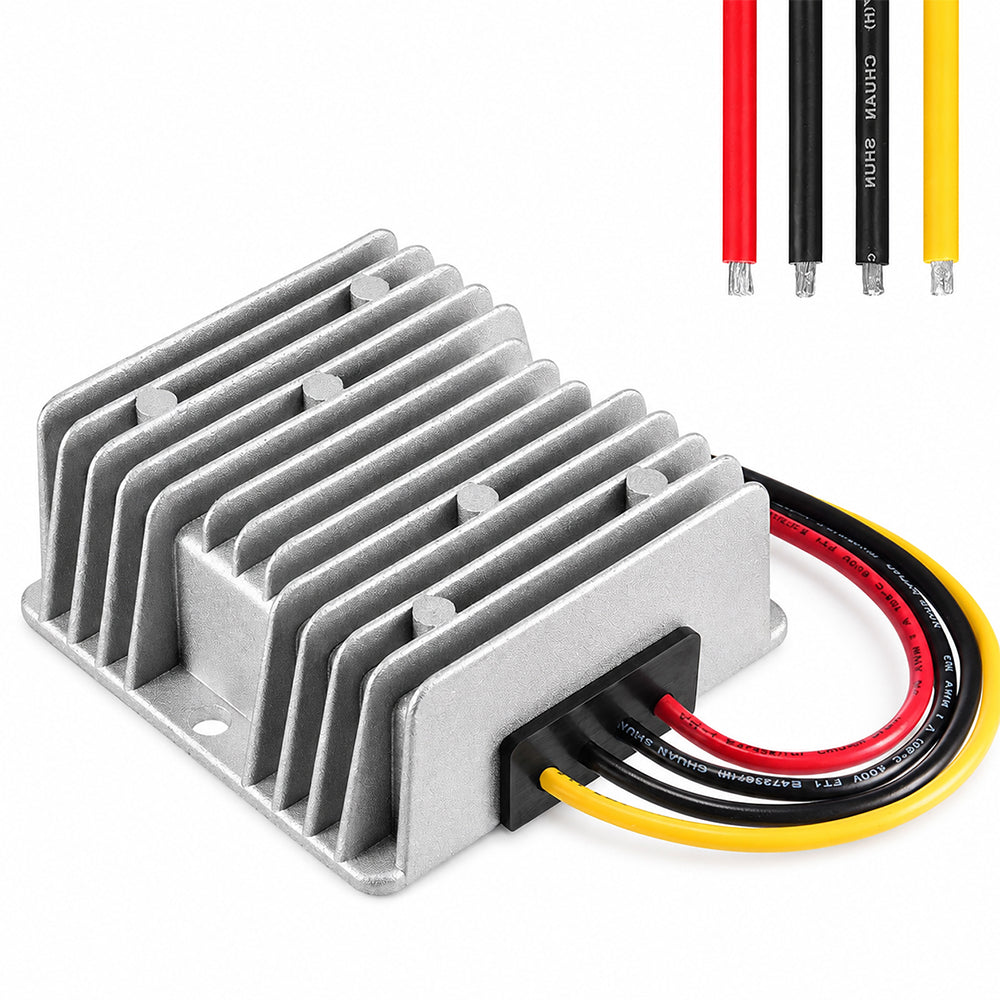

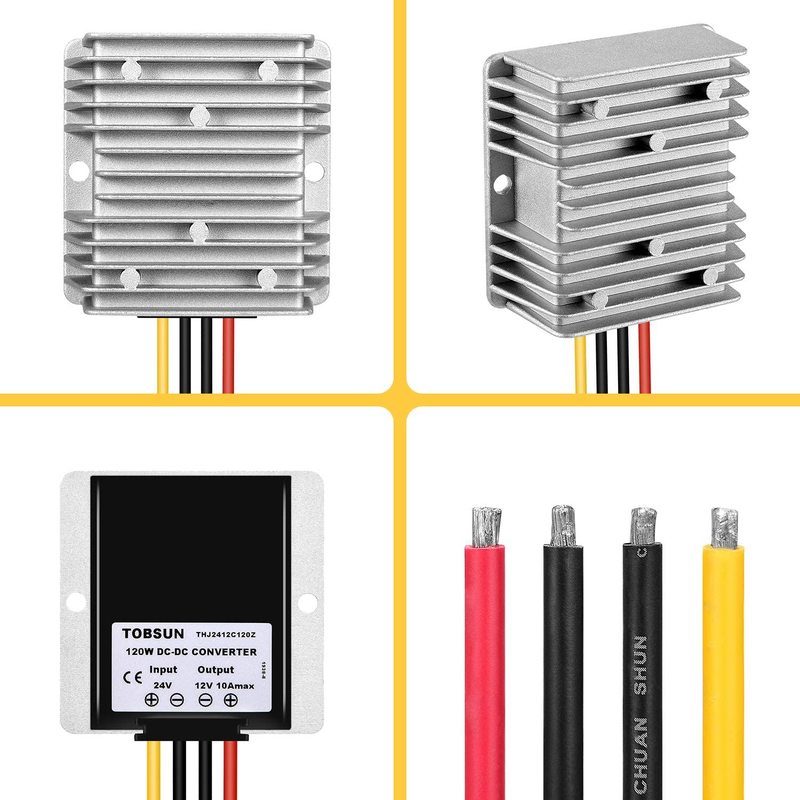

DC/DC Converter Regulator 24v to 12v -20A 240W

DC/DC Converter Regulator 24V Step Down To 12V 20A 240W

Features:
synchronous rectification, conversion rate is 93% with very low heat.
auto protect over voltage, over current, over temperature, short circuit, ,can work in normal condition when restored.
input voltage: DC 24V
output parameter : DC 12 V
Output power: 20A 240W
working temperature: (40 C – 80C) when it is more than 40 deg C, please make lower power, or enhance heat dissipation
full load temperature rise: 50C
Load regulation: + 1%
voltage regulation rate: +- 2%
minimum pressure: 2V

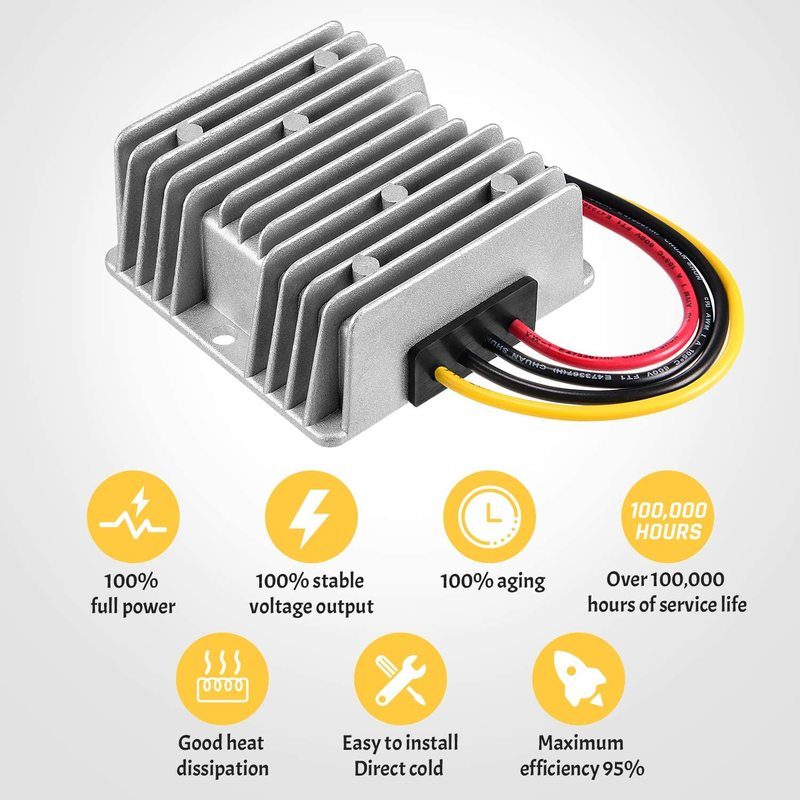

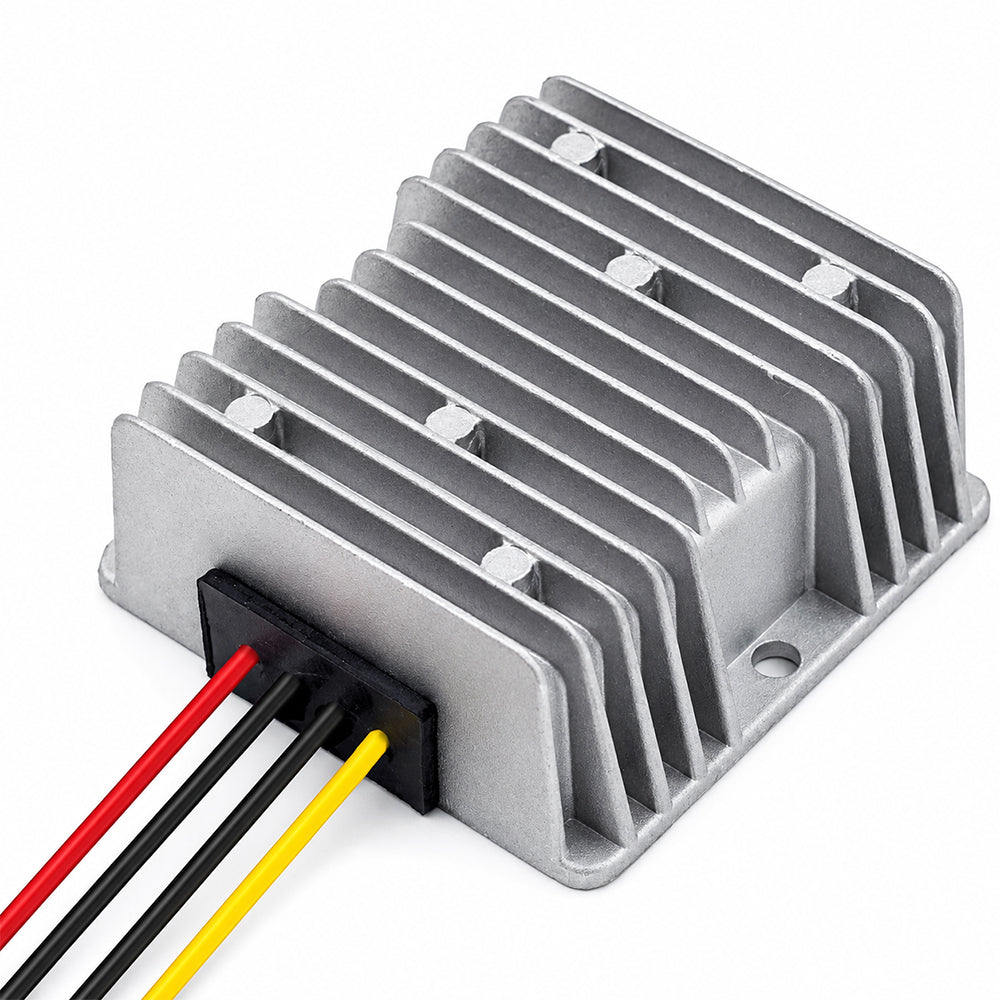

Aluminum Shell
Grade: IP68
Shell size: 74×74×32mm

Note:
1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2. please take with an average load, do not merge,if there are multiple output cables in the output port.
3. you need to pay attention to make the power module cool,if output is up to the maximum current value.

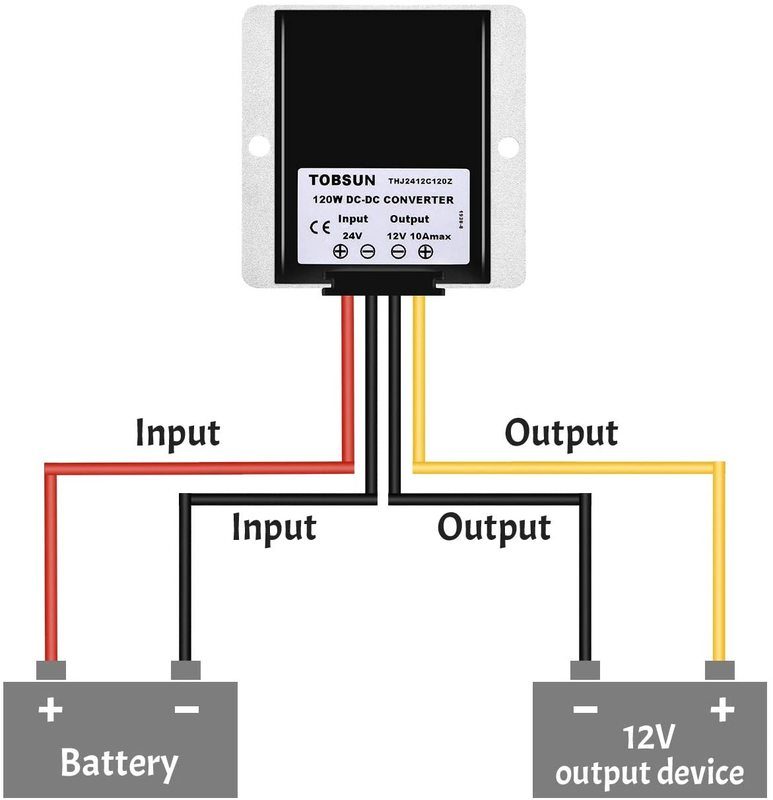

4. in strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment

Package list:
1X DC/DC Converter Regulator
