MPPT Solar Controller 20A

Product Description
$143.99
Maximum quantity available reached.

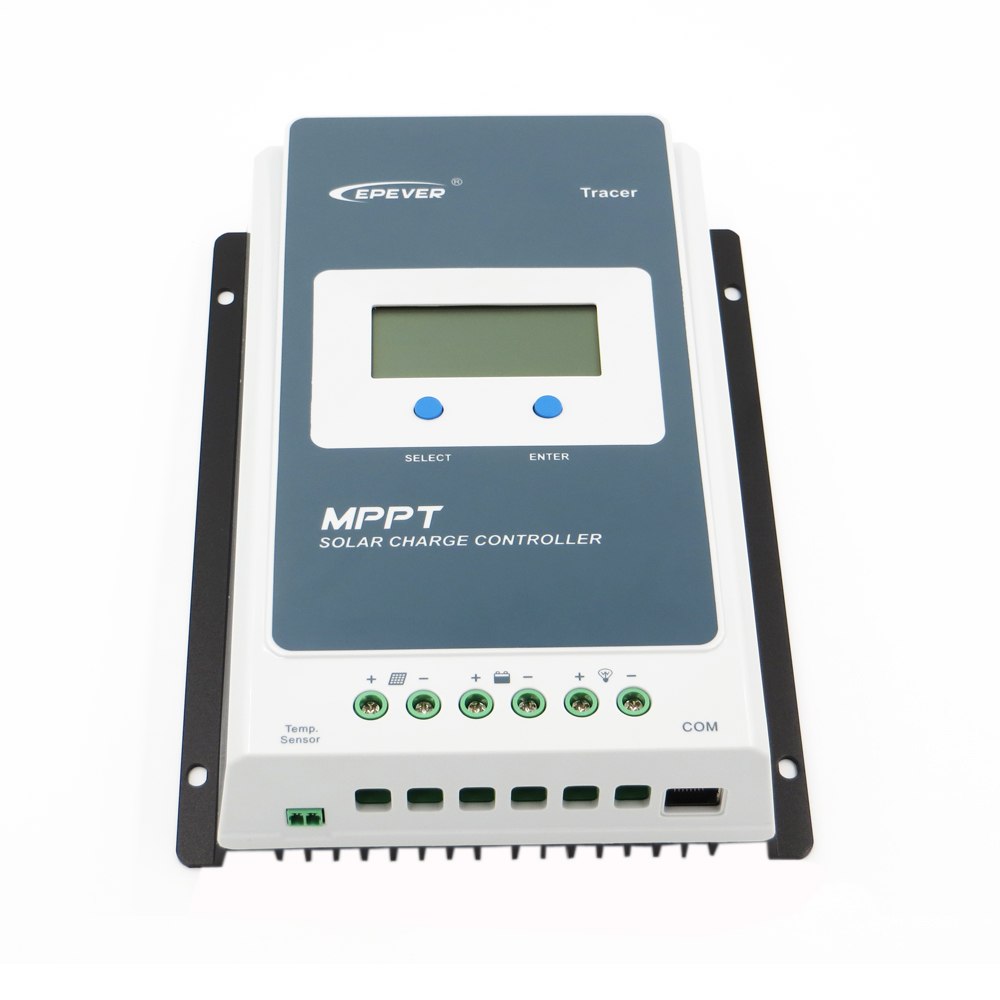

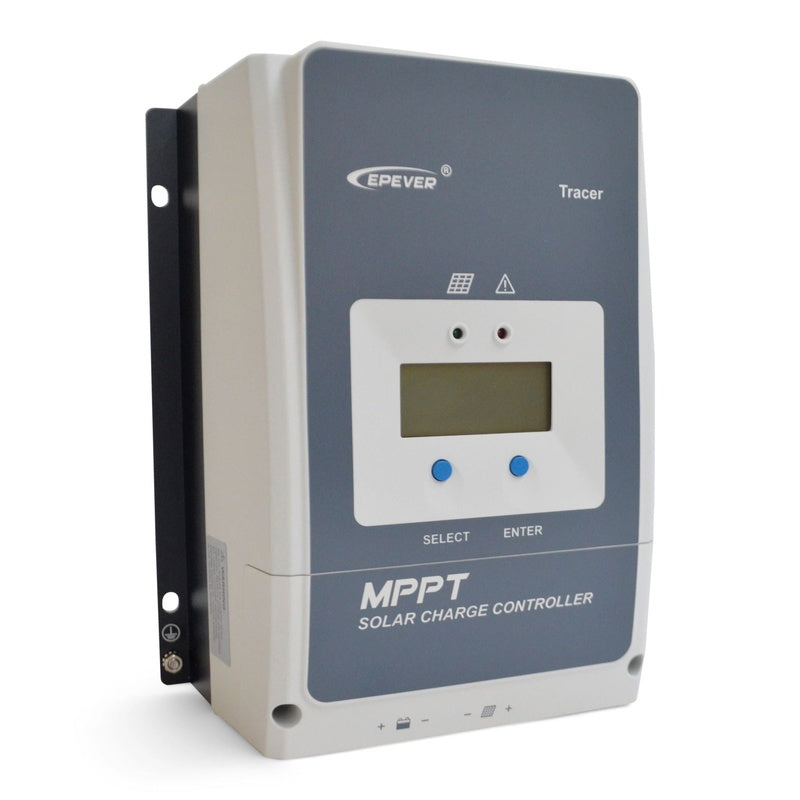

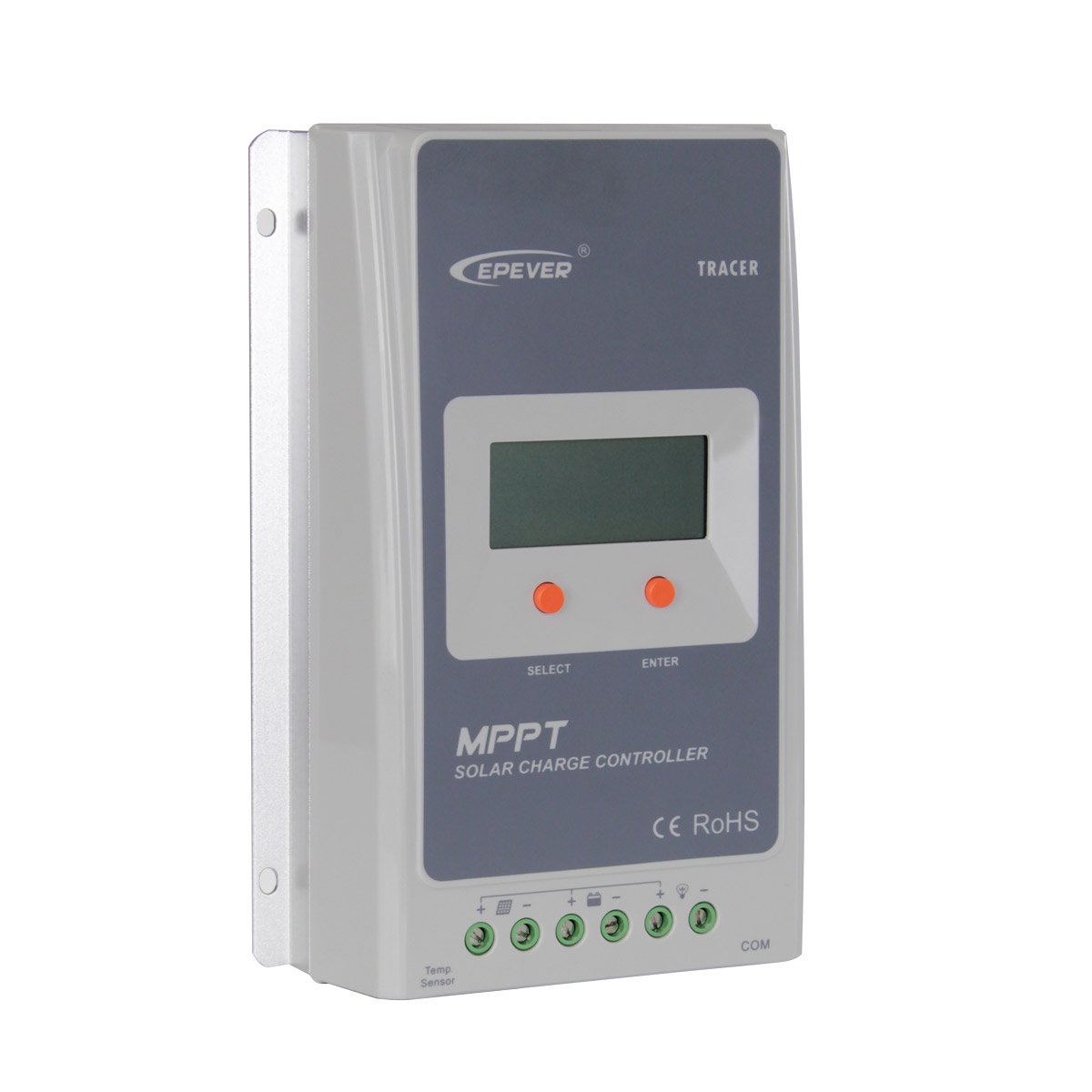

20A Tracer MPPT Solar Charge Controller Regulator

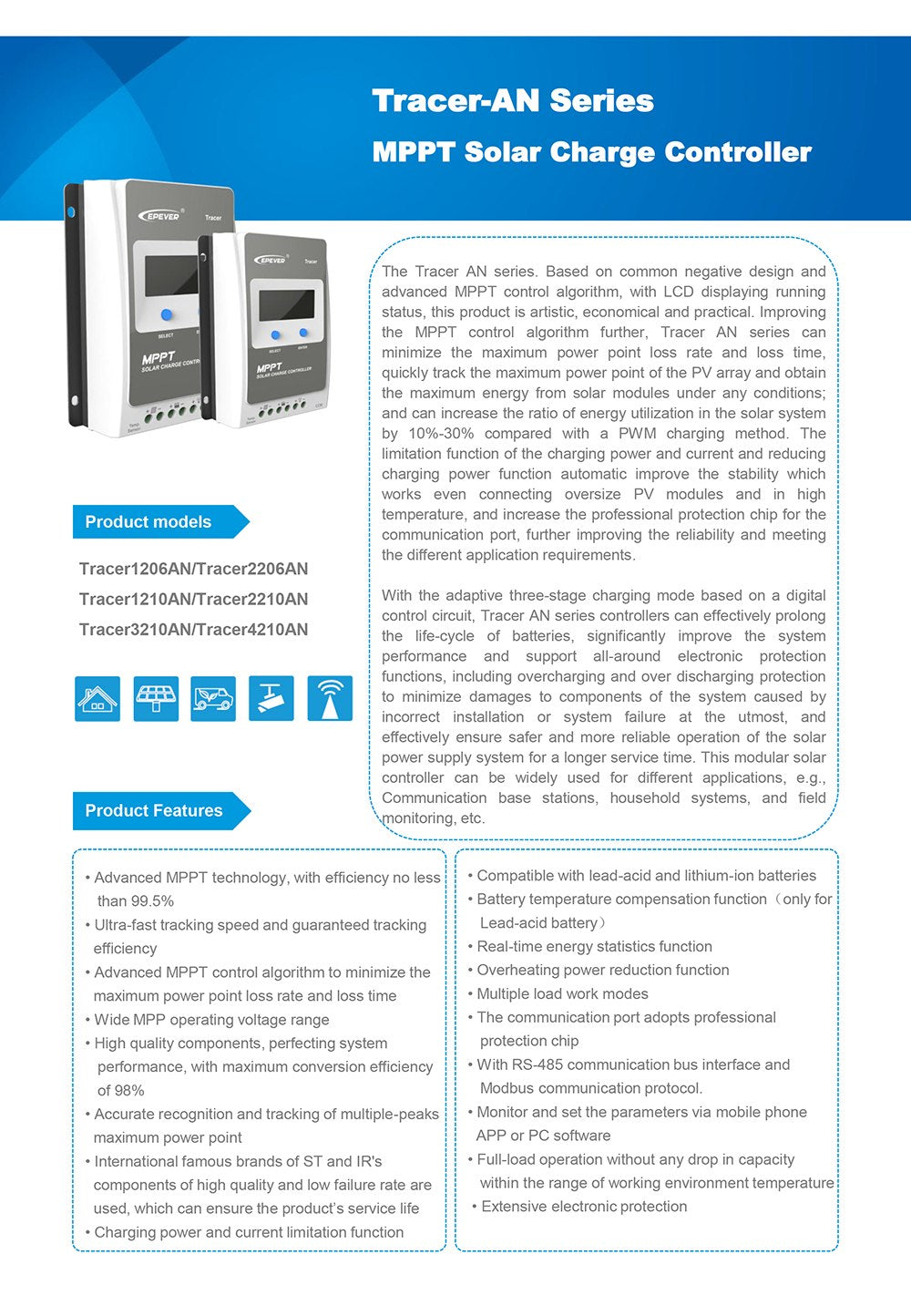

20A upgrade Tracer 2210AN MPPT Solar Charge Controller 12V 24V Auto Work Tracer AN series

come with 5 years warranty

Specification
Multiple load control modes: manual control, lighting ON/OFF, light On+Timer
Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%
Wide MPPT operating voltage range.
12/24VDC automatically identifying system voltage.
CD display design, dynamically displaying tool's operating data and working condition.
Available for PC monitoring and external display realizing real-time data checking and parameters setting.

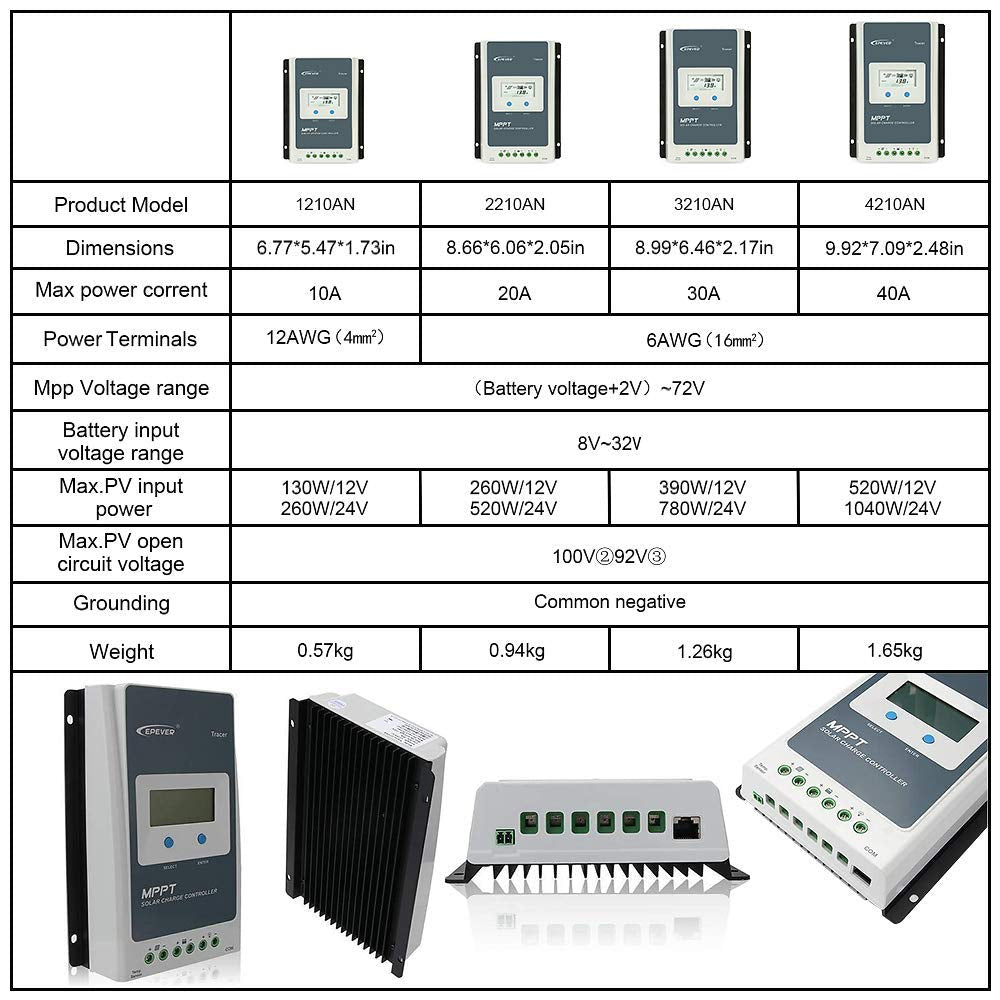

Rated charge current: 20A
Rated discharge current:20A
Max.PV input power: 12V/260W,24V/520W
Battery voltage range: 9V~32V
Max.PV open circuit voltage: 100VDC
Net weight :1.65kg
Enclosure :IP30

Electronic protections:
PV reverse polarity protection
PV short circuit protection
PV over current alarm protection
Load short circuit protection
Load overload protection
Controller Overheating protection
Battery overvoltage protection
Battery over-discharge protection
Battery reverse polarity protection
MT-50 Features

Automatic identify the controller and display the type, model and relevant parameter data

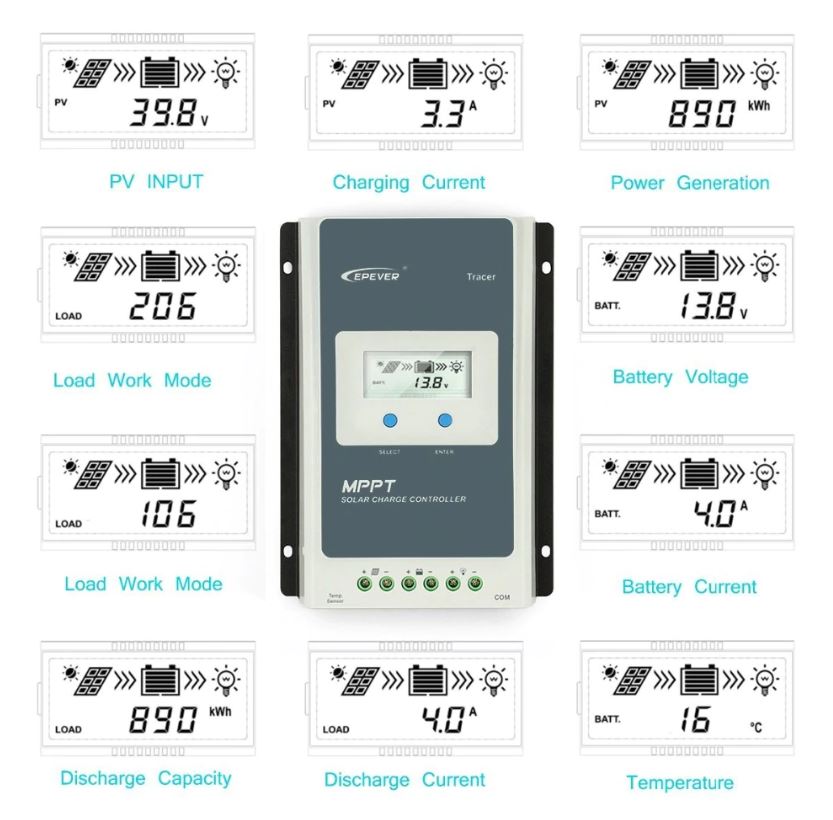

Large-screen multifunction LCD displays all the operational data and system working status
Real-time energy statistics recording
Longer communication distance based on RS485
More powerful function Via MT50

Diversified load control modes: manual, light ON/OFF, Light ON+ Timer, Time Control
Battery type selection: Gel, sealed, flooded and USER type
Package List:

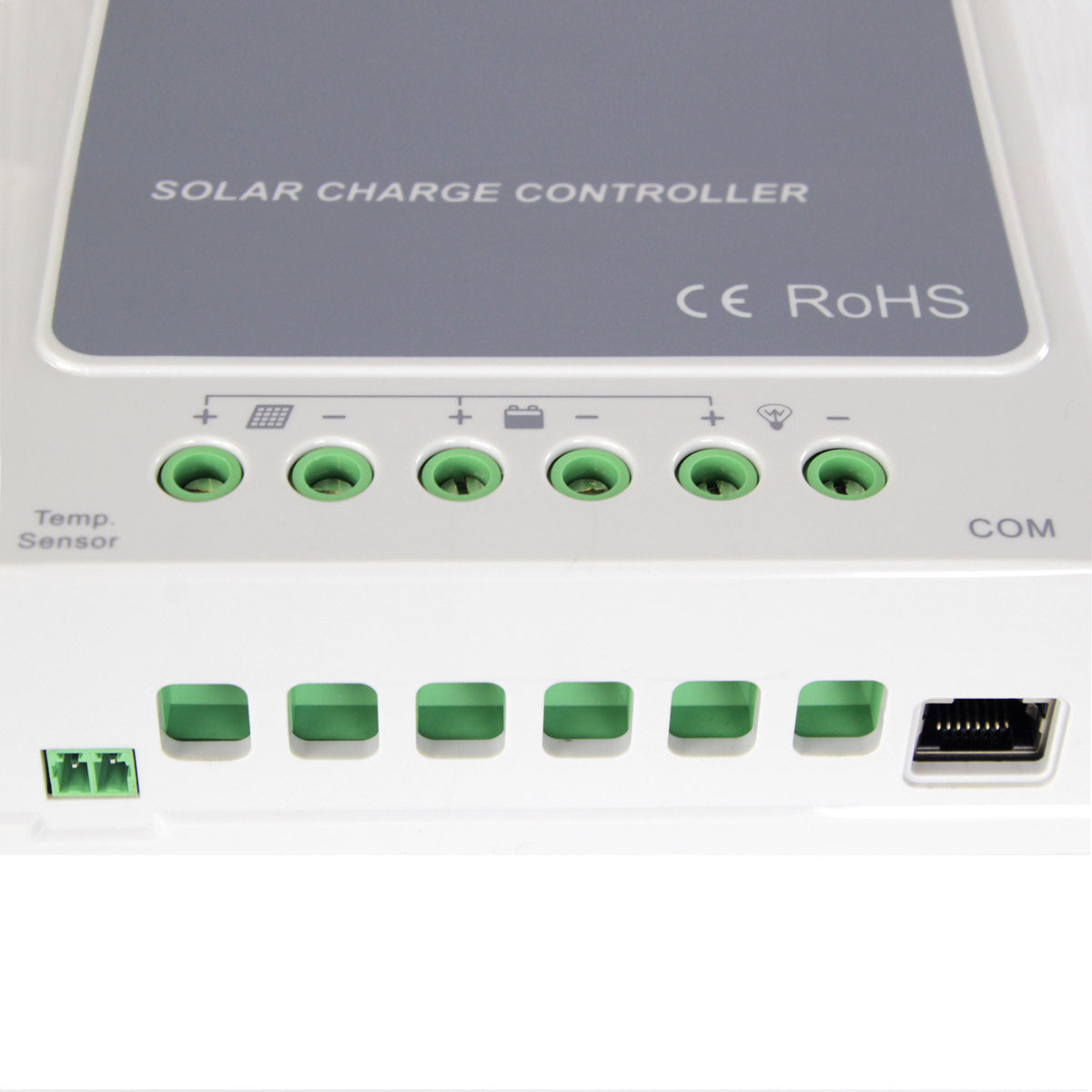

1 x Tracer 2210AN Solar Charging Controller
1 x User Manual
