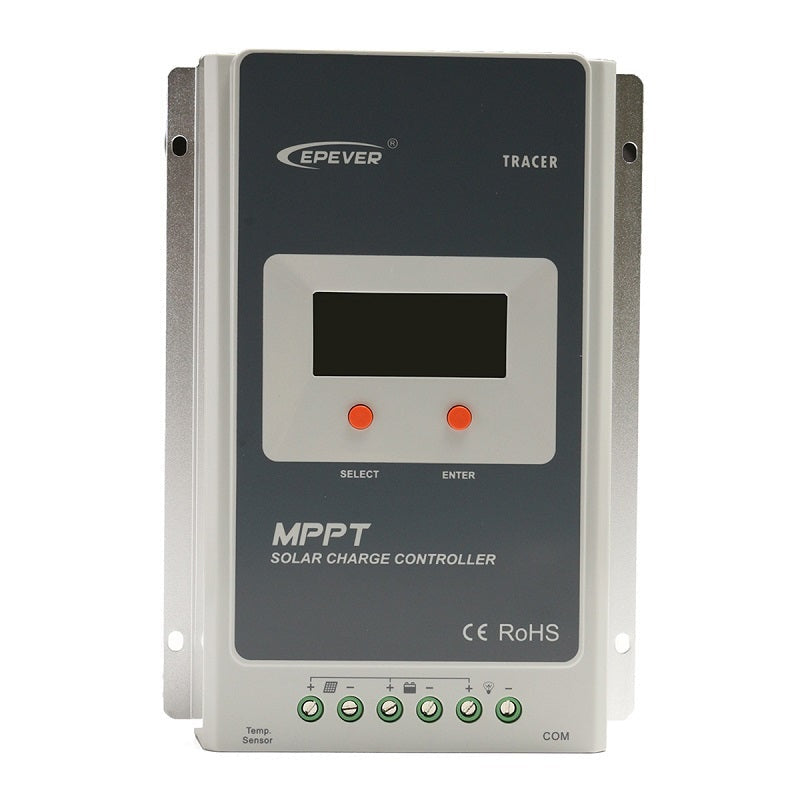

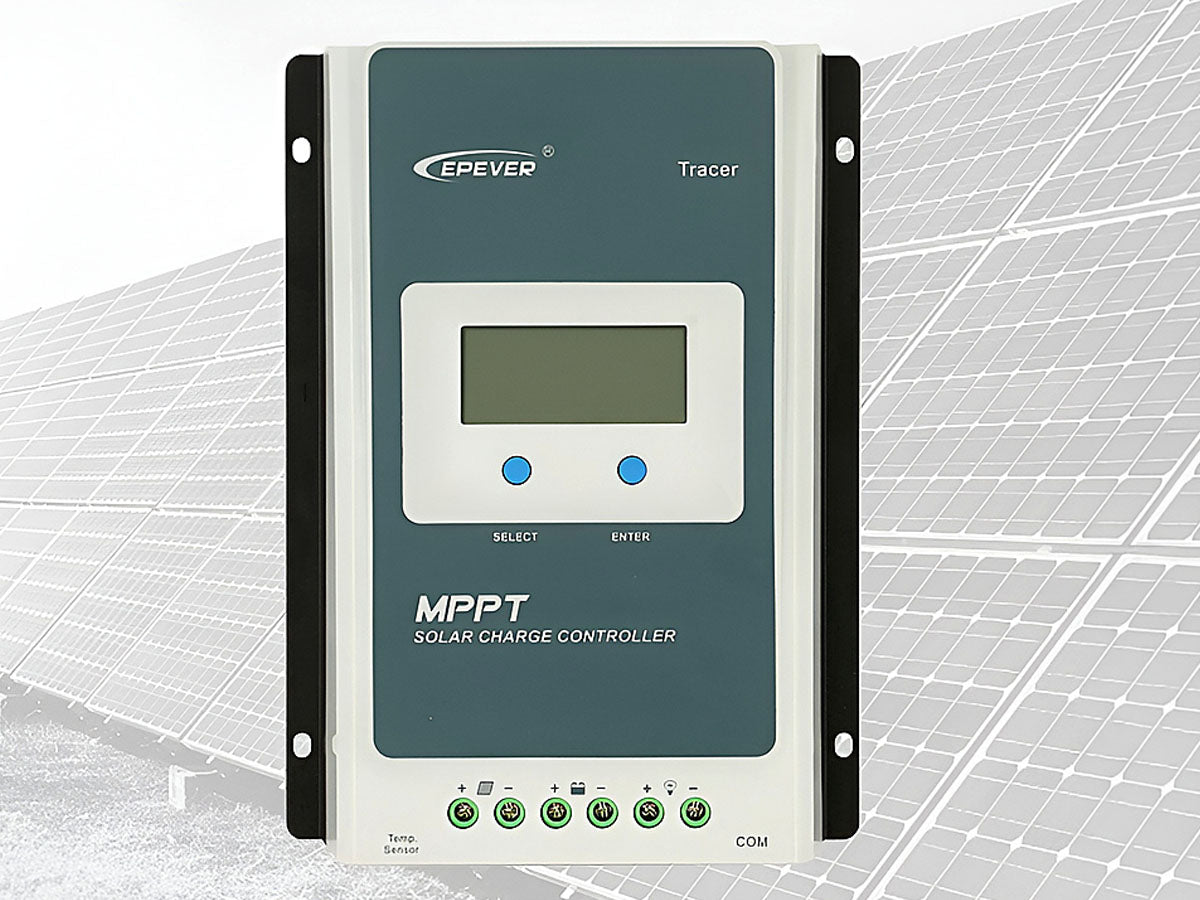

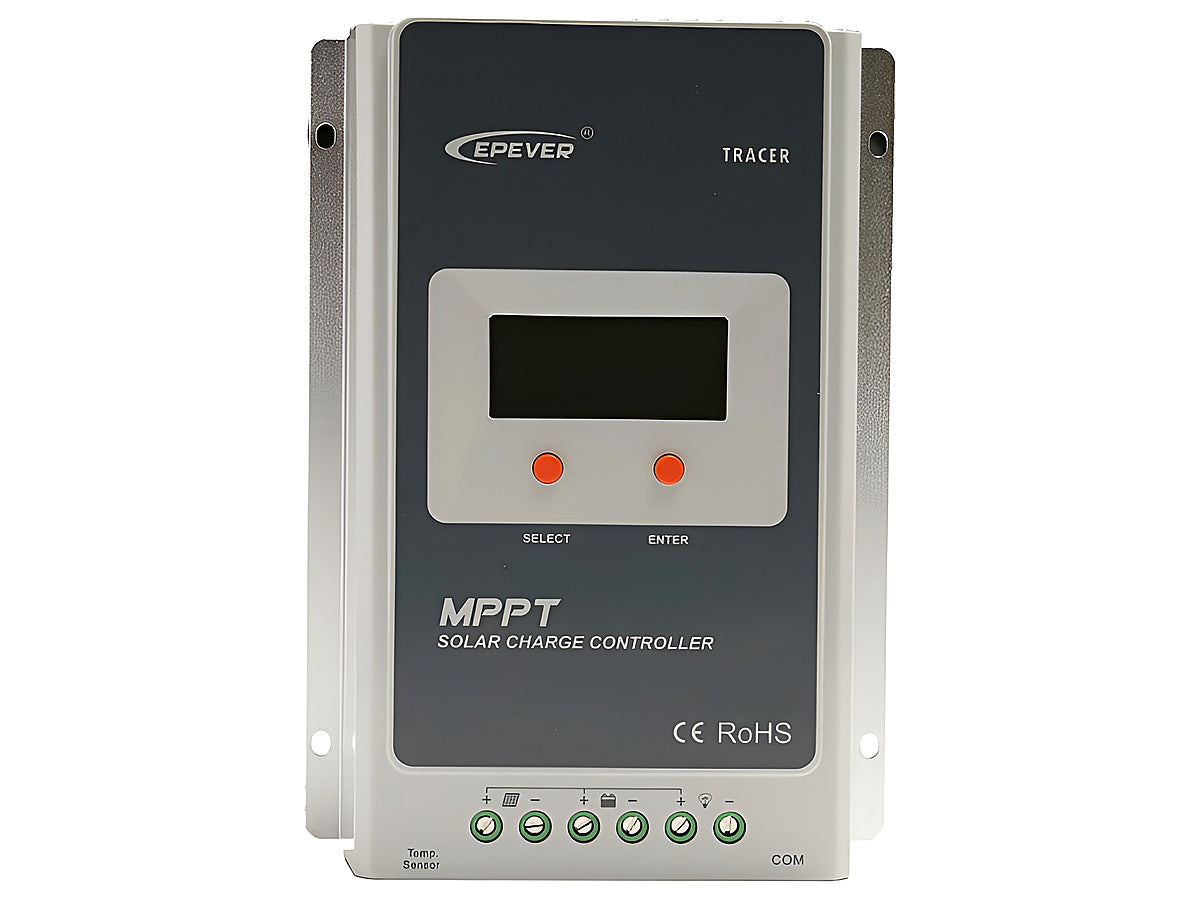

40A upgrade Tracer 4210AN MPPT Solar Charge Controller 12V 24V Auto Work Tracer AN series
come with 5 years warranty
Specification
Multiple load control modes: manual control, lighting ON/OFF, light On+Timer
Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%
Wide MPPT operating voltage range.
12/24VDC automatically identifying system voltage.

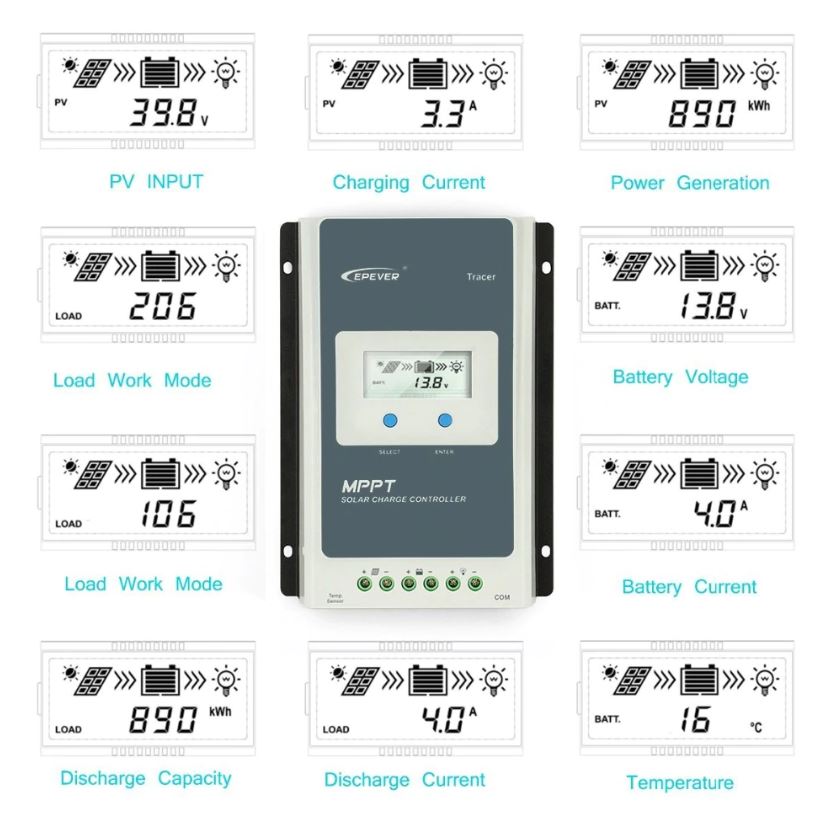

CD display design, dynamically displaying tool's operating data and working condition.
Available for PC monitoring and external display realizing real-time data checking and parameters setting.

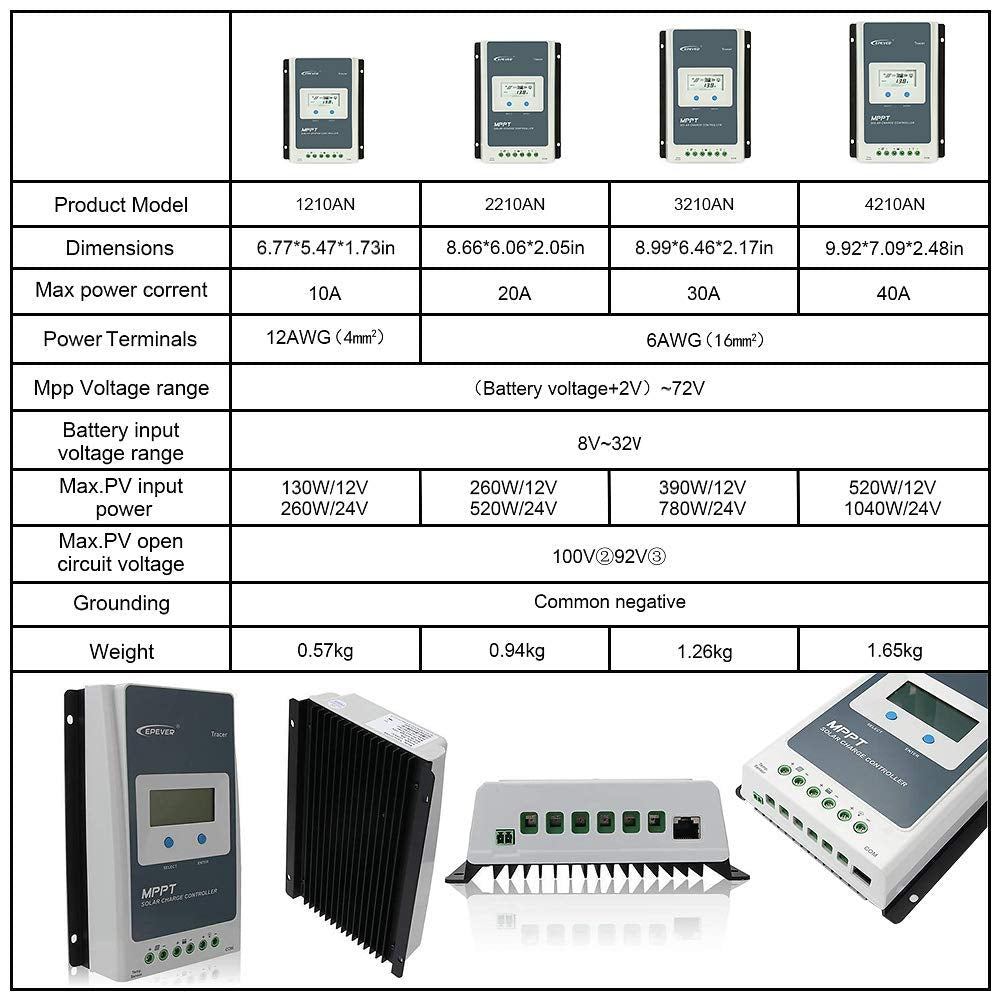

Rated charge current:40A
Rated discharge current:40A
Battery input voltage range:8-32V
Max. PV open circuit voltage:100V
Max. PV input power:520W(12V) 1040W(24V)
Self-consumption :≤20mA/12V; ≤16mA/24V
Temperature compensation coefficient :-13℉ ～+113 ℉
Overall dimension:252x180x63mm
Net weight :1.65kg
Enclosure :IP30
Electronic protections:
PV reverse polarity protection
PV short circuit protection
PV over current alarm protection
Load short circuit protection
Load overload protection
Controller Overheating protection
Battery overvoltage protection
Battery over-discharge protection
Battery reverse polarity protection
MT-50 Features
Automatic identify the controller and display the type, model and relevant parameter data
Large-screen multifunction LCD displays all the operational data and system working status
Real-time energy statistics recording
Longer communication distance based on RS485
More powerful function Via MT50
Diversified load control modes: manual, light ON/OFF, Light ON+ Timer, Time Control
Battery type selection: Gel, sealed, flooded and USER type
Package List:
1 x Tracer 4210AN Solar Charging Controller
1 x User Manual
