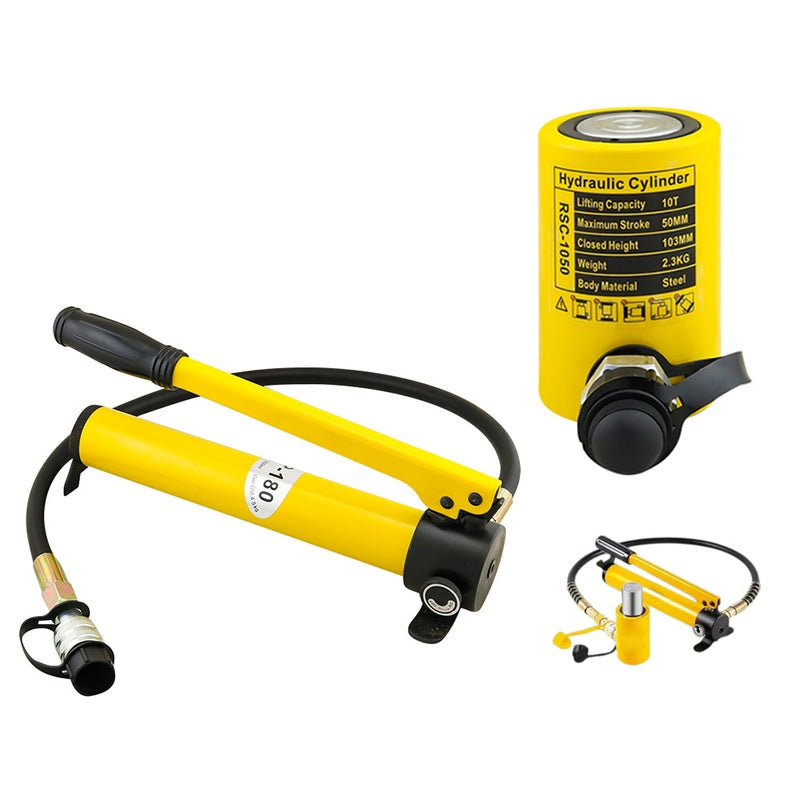

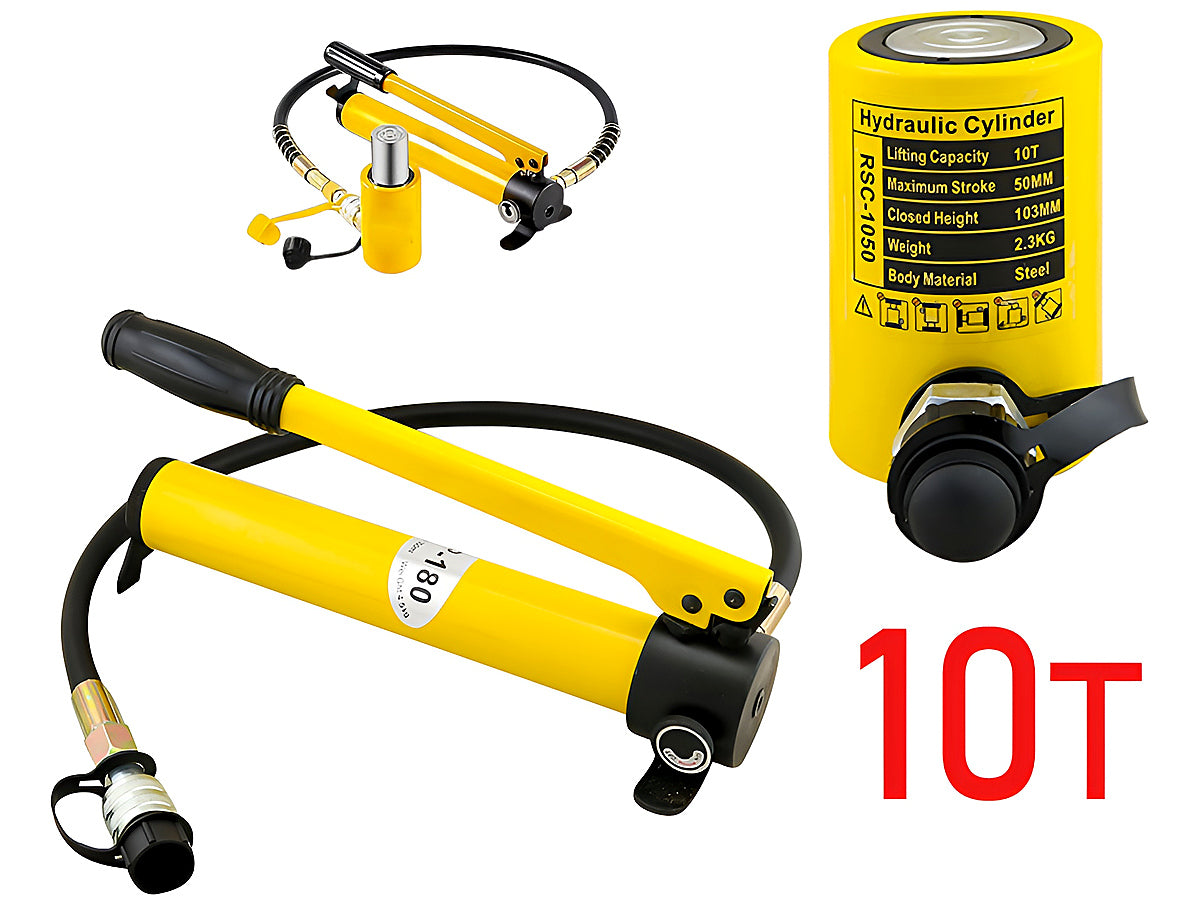

Hydraulic Ram Jack With Pump

10 Ton Manual Hydraulic Jack with Pump & Oil Pipe – Heavy Duty Steel Construction

Lift with confidence using this powerful Hydraulic Jack, built for tough industrial and mechanical tasks. Engineered from high-grade steel with precision seals, this 10 Ton Hydraulic Jack delivers reliable performance for vehicle lifting, machine installation, construction, and repair jobs.

Key Features:

• 10-Ton Load Capacity – Handles up to 22,046 lbs, ideal for heavy-duty machinery and vehicle maintenance.

• Durable Steel Build – Thickened body, chrome-plated spindle, and corrosion-resistant sprayed finish.

• Multi-Position Use – Works vertically, horizontally, and upside down to adapt to tight or awkward spaces.

• Leak-Free Operation – Steel ball oil interface prevents leakage; robust internal seals maintain pressure.

• Safety Features – Anti-slip rings and stop ring to prevent overextension or slipping.

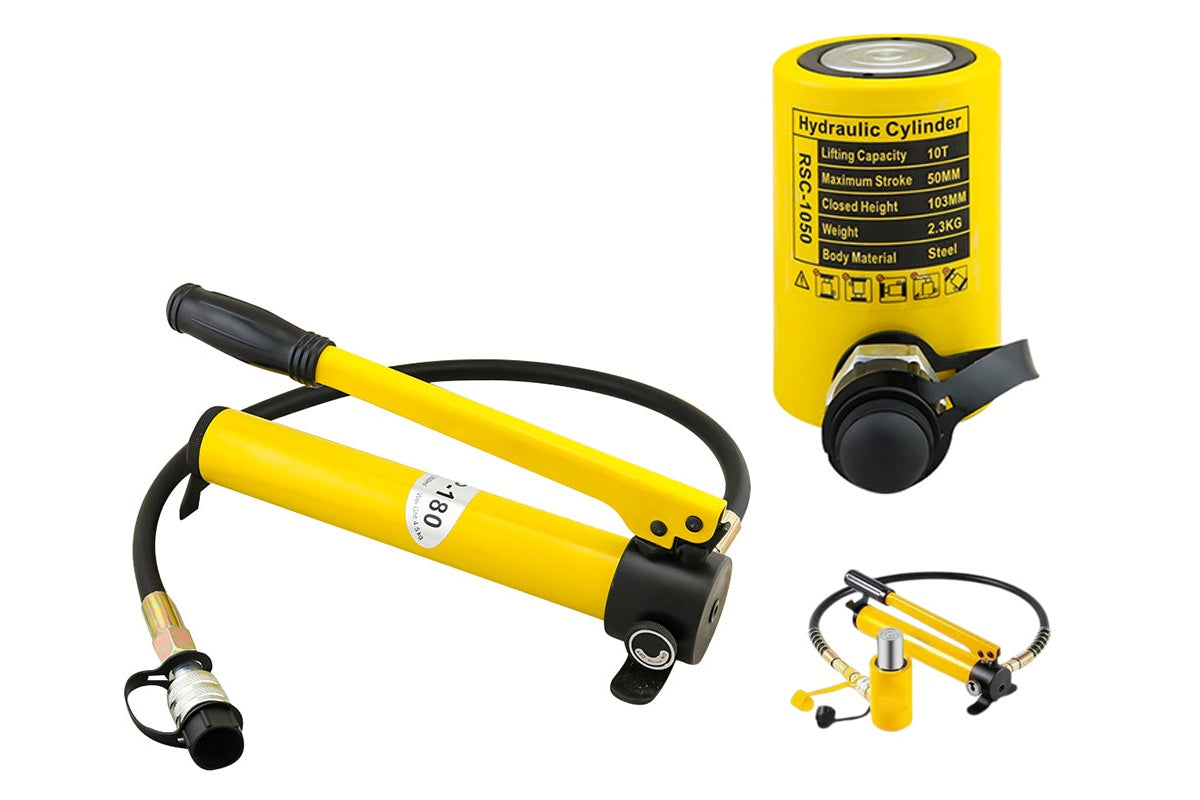

• Ergonomic Handle – Non-slip convex grip on the hydraulic pump for comfort and control.

Specifications:

• Load Capacity: 10T / 22,046 lbs

• Stroke: 50mm (1.97")

• Oil Storage: 72cc

• Max Pressure: 70 MPa

• Collapsed Height: 102mm

• Extended Height: 152mm

• Material: Hardened Steel

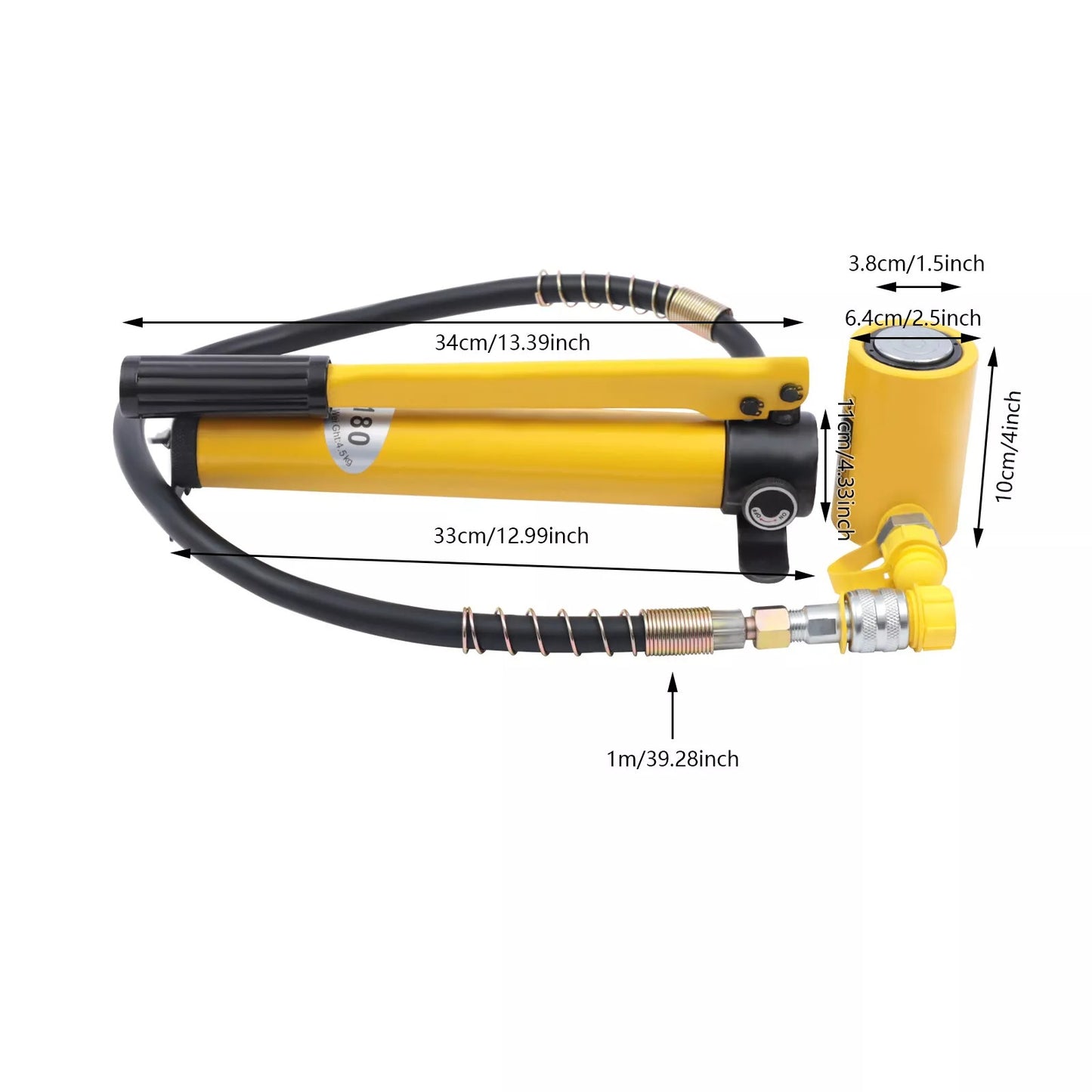

• Jack Size: 14 x 7.5 x 10 cm

• Outside Diameter: 60mm

• Inner Diameter: 45mm

• Joint Type: R2 3/8"

• Weight: 6.5 kg

• Color: Yellow & Black

Package Includes:

• 1 x Hydraulic Jack

• 1 x Manual Hydraulic Pump

• 1 x Rubber Oil Pipe

• 1 x User Manual

Applications:

Perfect for railway maintenance, vehicle repair, machinery installation, bridge supports, steel structure leveling, and more. A must-have for professional mechanics, engineers, and serious DIYers.
