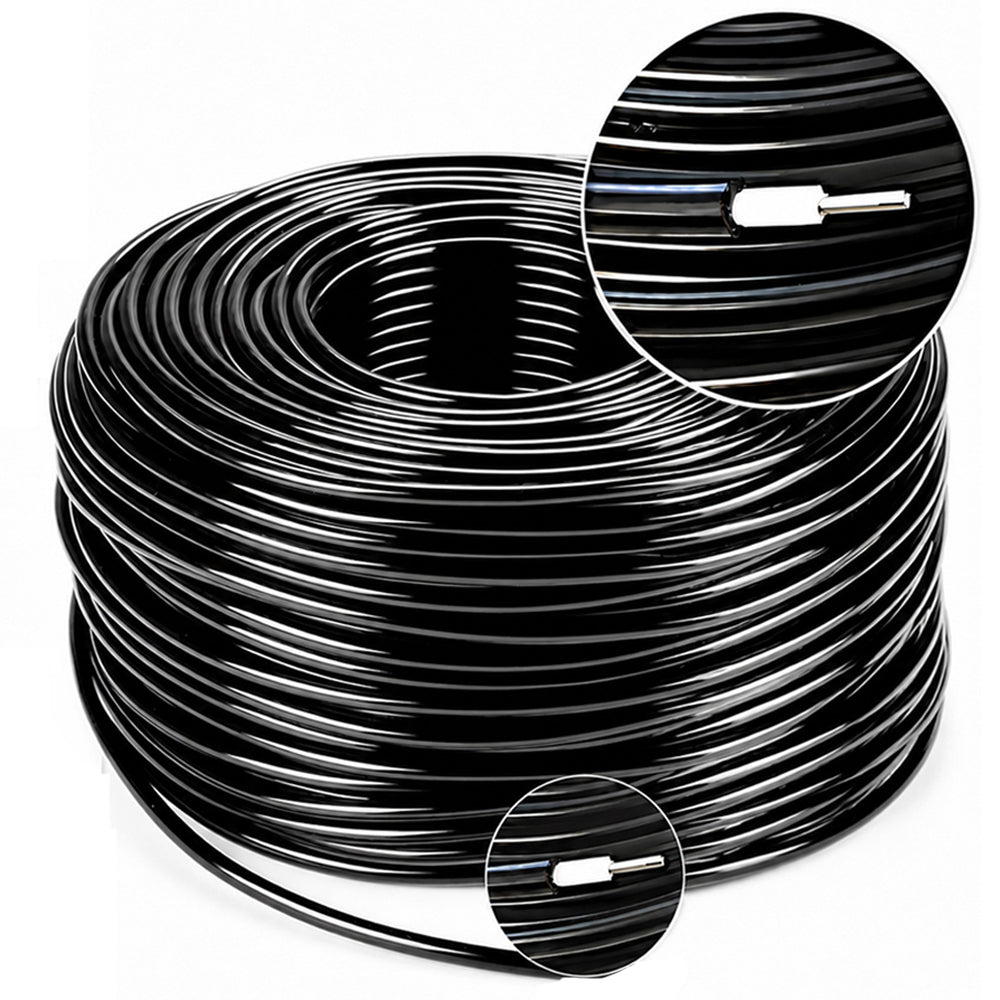

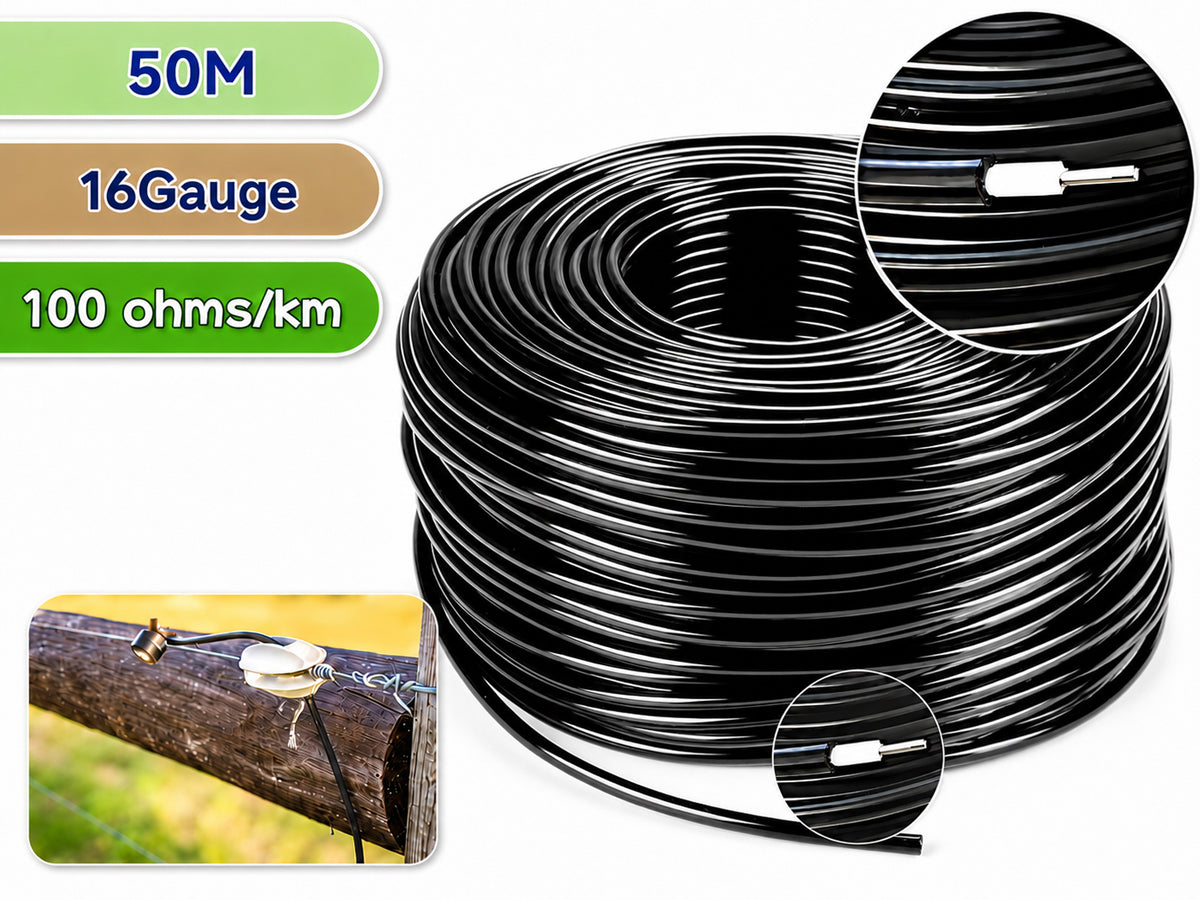

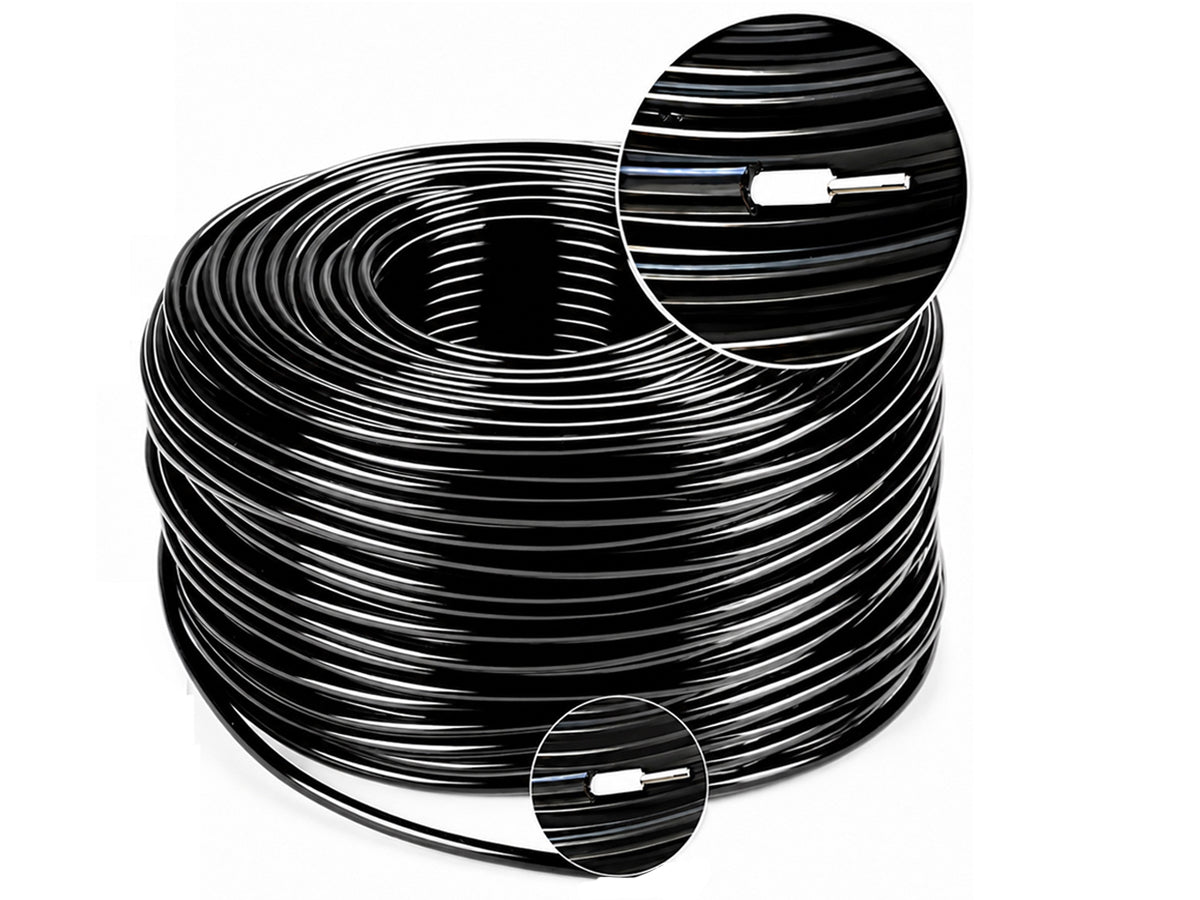

50M Double Insulated Underground Cable

Double Insulated Underground Cable – 50M 16 Gauge Electric Fence Lead-Out Wire

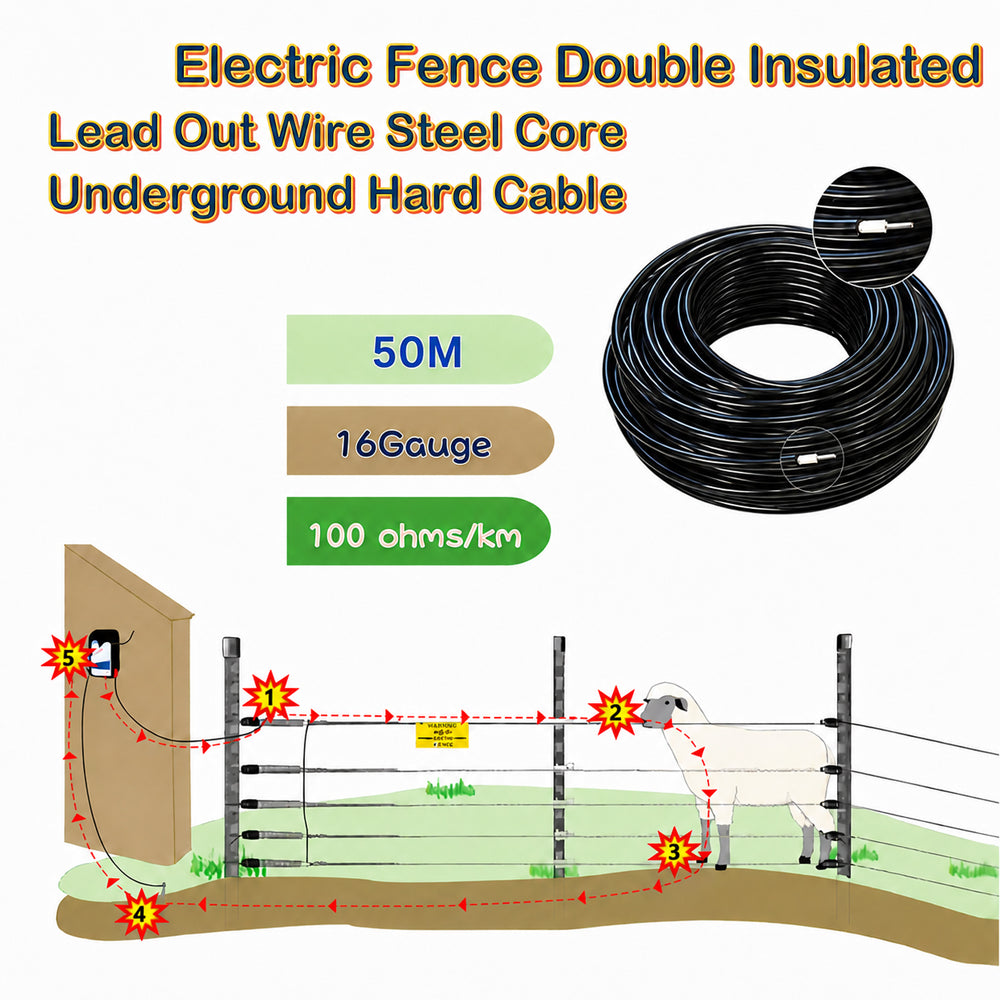

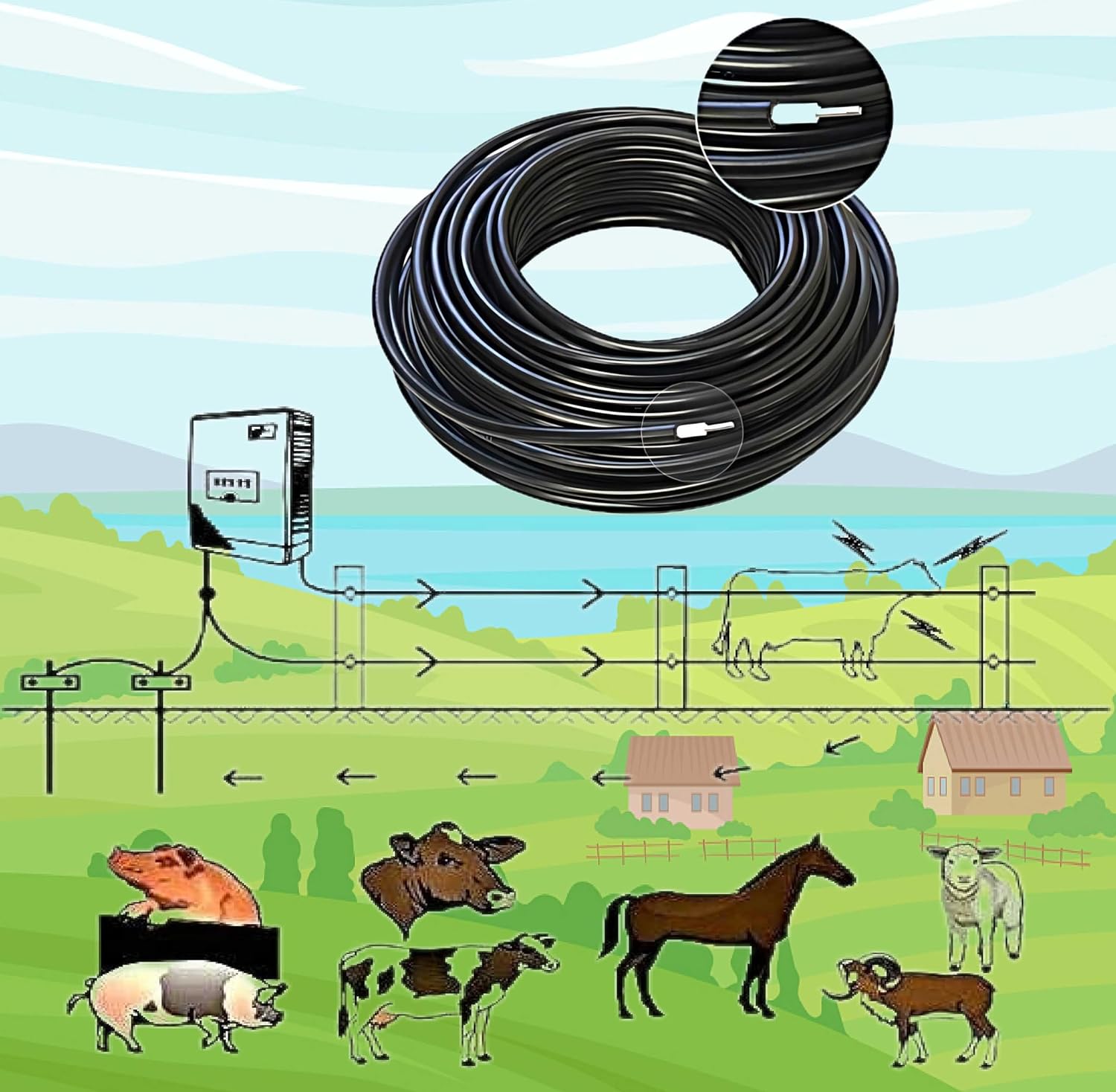

This Double Insulated Underground Cable is designed for connecting mains energisers to electric fencing, earth stakes, gateways and other permanent fence connections. The heavy-duty cable uses a galvanised steel core with durable polyethylene insulation to help reduce unwanted voltage loss over distance and protect the conductor when installed underground.

Features

• 50M double insulated underground cable for electric fence lead-out connections
• Suitable for direct burial and underground installation
• Double insulation helps reduce unintended voltage loss
• Tough polyethylene outer layer for abrasion resistance
• UV-stabilised outer insulation for outdoor durability
• 16 gauge galvanised steel conductor
• Rated up to 20,000V
• Suitable for connecting energisers, fences and earth stakes

Specifications

• Length: 50M
• Conductor: 16 gauge galvanised steel wire
• Resistance: 100 ohms/km
• Insulation Rating: Up to 20,000V
• Inner Insulation: Transparent low-density polyethylene
• Outer Insulation: UV-stabilised low-density polyethylene

Package Includes

• 1 x 50M Double Insulated Underground Cable

A 50M direct burial insulated cable for long-run electric fence energiser, earth stake and gateway connections.
