Digital Timer Socket

Digital Timer Socket – Programmable Plug-In Timer Switch for Lights, Appliances and Energy Saving

This Digital Timer Socket is a programmable plug-in time switch that lets you control lamps, heaters, fans and other appliances automatically. With flexible daily and weekly scheduling options, the Digital Timer Socket helps you simulate occupancy when you are away, take advantage of off-peak tariffs and reduce standby power consumption without changing your existing power points.

Features

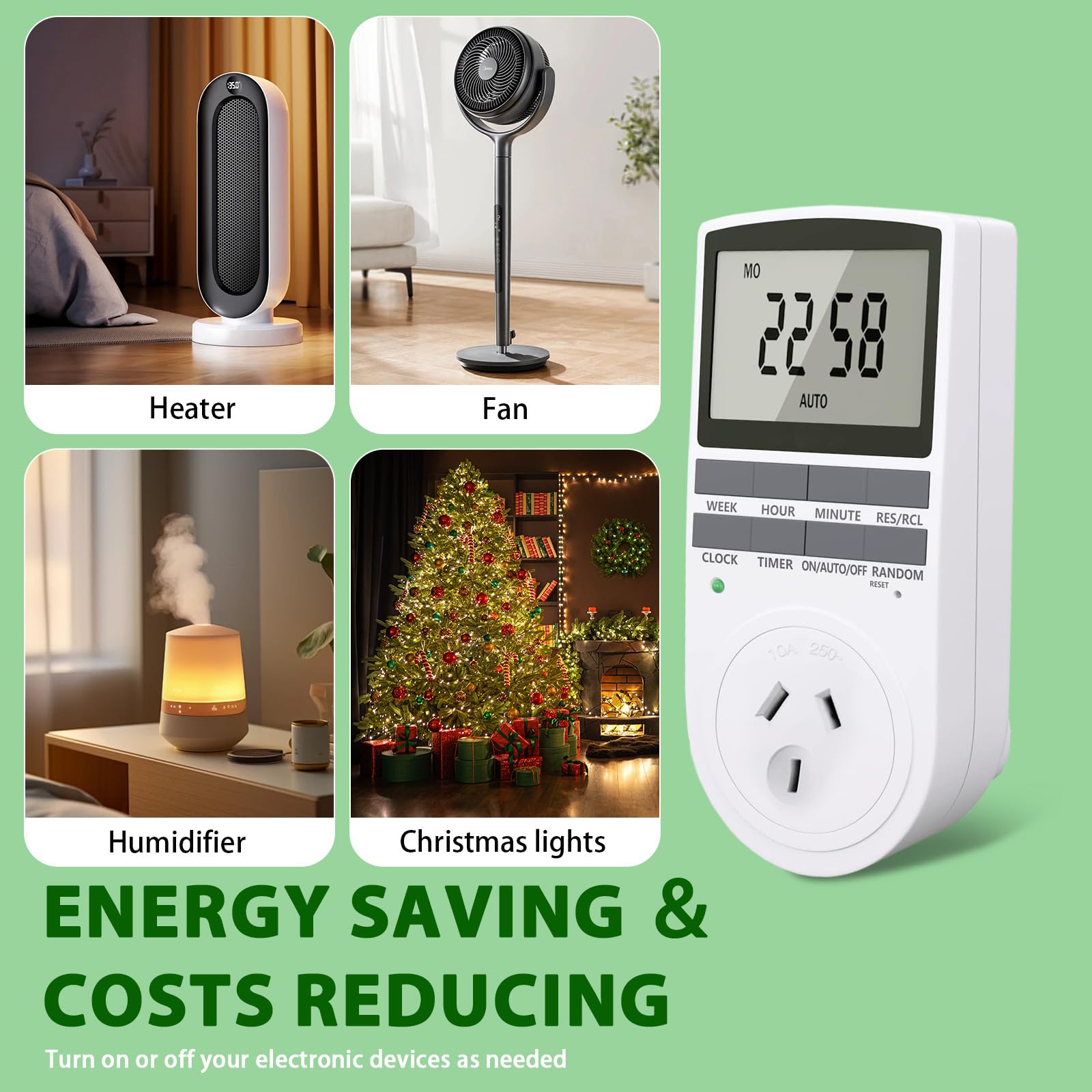

• The Digital Timer Socket has a large, easy-to-read LCD display for quick programming and status checks.
• Simple plug-in design makes the Digital Timer Socket ready to use in any standard 240V outlet with no wiring required.
• 8-key timer function allows the Digital Timer Socket to be programmed with multiple on/off cycles.
• 16 different day-group settings let the Digital Timer Socket control loads on specific days such as weekdays, weekends or custom patterns.
• Hour, minute and week settings give the Digital Timer Socket precise control with a minimum switching interval of 1 minute.
• Summer and winter time modes make the Digital Timer Socket easy to adjust for seasonal changes.
• Random function enables the Digital Timer Socket to vary switch times slightly, ideal for home security and “lived-in” appearance.
• 12/24 hour format can be selected on the Digital Timer Socket to suit your preference.
• Integrated rechargeable NiMH battery lets the Digital Timer Socket retain programs during power interruptions.
• CE certified design ensures the Digital Timer Socket meets safety and performance standards.
• Note: not suitable for fluorescent, low energy or discharge lamps; the Digital Timer Socket is intended for compatible resistive or small inductive loads only.

Specifications

• Product: Digital Timer Socket – programmable plug-in electronic timer
• Voltage: 240V AC, 50Hz
• Installation: Plug-in type
• Rating: 240V AC, 10A, 2400W maximum load
• Minimum Setting Time: 1 minute
• Operating Temperature: -10°C to +40°C
• Accuracy: ±1 minute
• Battery: Built-in NiMH 1.2V rechargeable (non-removable) backup battery, work life > 100 hours
• Display: Large LCD, no backlight
• Timer Groups: 16 programmable day-group combinations

Day Group Combinations

The Digital Timer Socket supports 16 day-group presets, including: MO TU WE TH FR SA SU; MO; TU; WE; TH; FR; SA; SU; MO TU WE TH FR; SA SU; MO TU WE TH FR SA; MO WE FR; TU TH SA; MO TU WE; TH FR SA; MO WE FR SU. These allow the timer to control loads on weekdays only, weekends only or custom repeating patterns.

Programming & Use

• Press the WEEK key to select the desired day group before programming the timer.
• Use HOUR and MINUTE keys to set switch-on and switch-off times on the timer in 1-minute steps.
• Choose 12-hour or 24-hour format according to your preference on the Digital Timer Socket.
• Use the RANDOM function when you want the Digital Timer Socket to vary on/off times slightly for improved security.
• Press RESET/RECALL to clear or recall stored programs on the Digital Timer Socket as needed.

Packaging Contents

• 1 × programmable digital timer socket
• 1 × User Manual

Ideal for household lighting control, radios, aquariums, and general appliances, this Digital Timer Socket is a simple way to automate everyday devices and save energy while adding security and convenience to your home.
