Petrol Engine 7.5hp 2:1 reduction

Product Description
$209.99
Maximum quantity available reached.

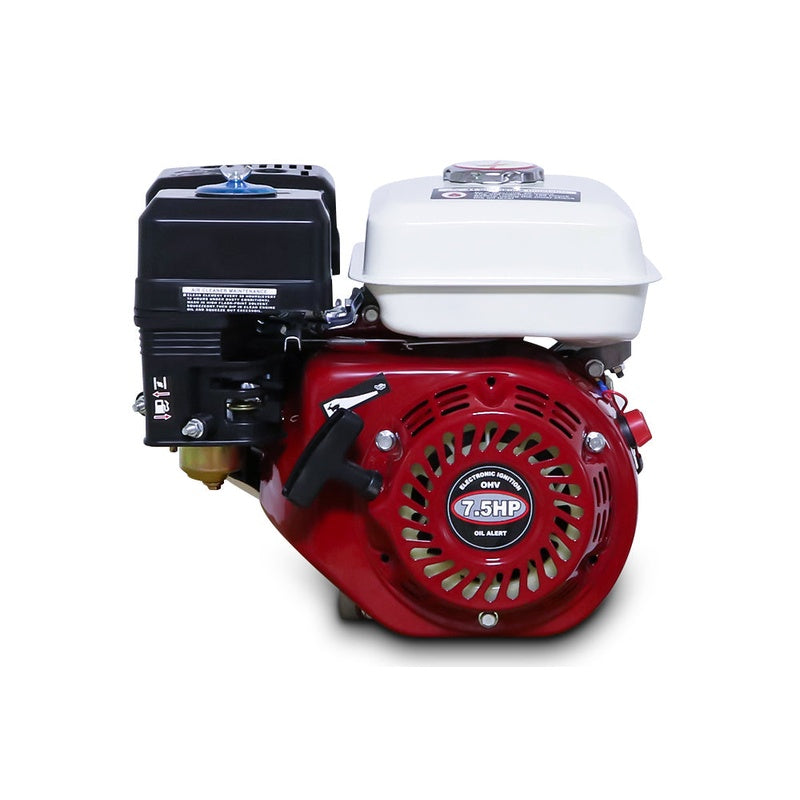

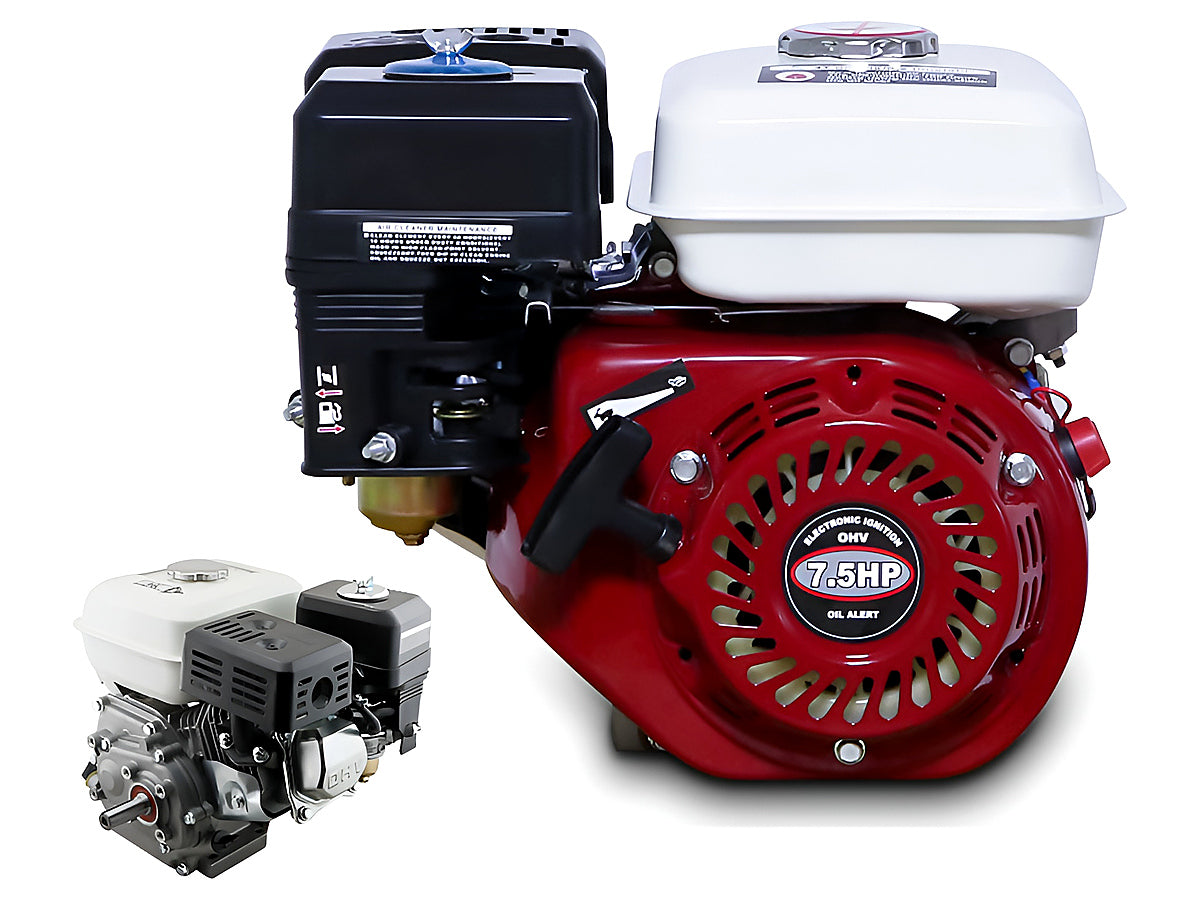

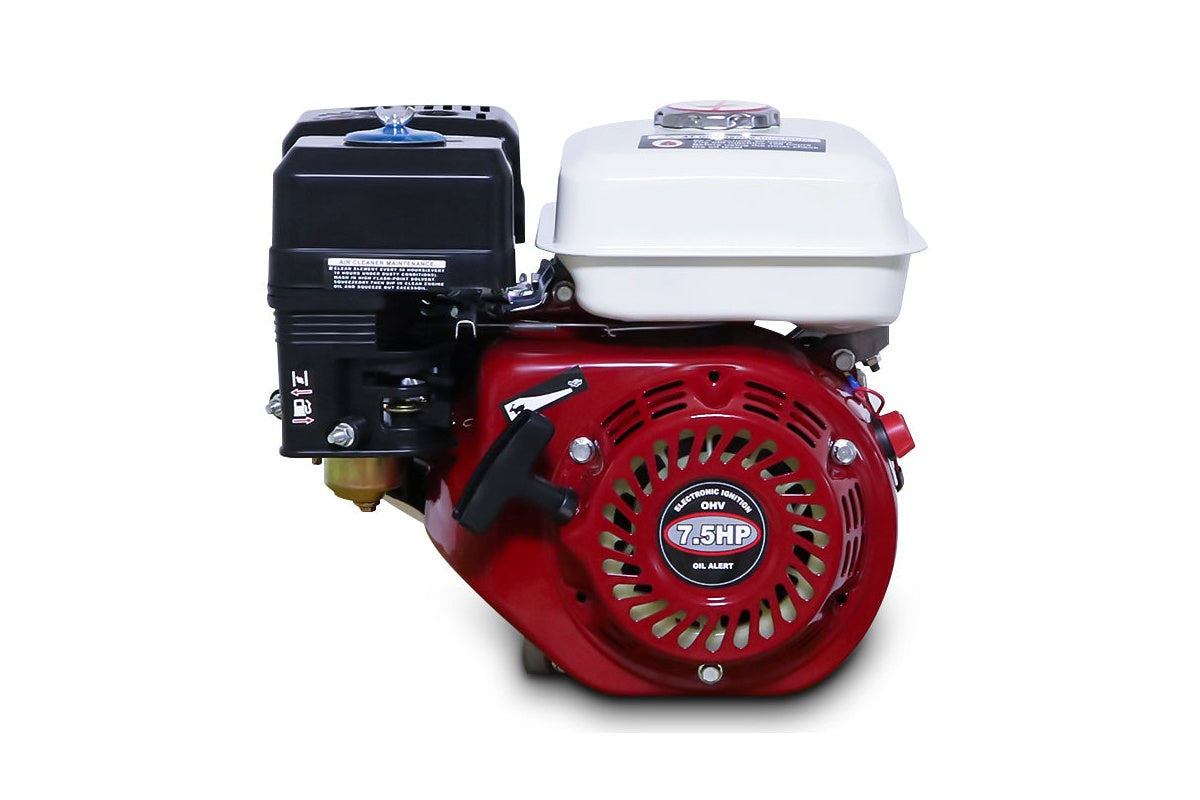

4 Stroke 196cc 7.5hp 3.6L Gasoline Engine Portable replacement Honda Engine With a 2:1 Reduction Gearbox (Fitted) 3.6L

Reduces the motor speed by half for the require a slower than normal speed.

Gasoline Engine with it's powerful 7.5 HP 196cc engine.
The 4-stroke single-cylinder engine features a fuel tank capacity of 3.6L.
The 37cm by 31.5cm engine with a height of 33cm has the ability to reach massive power output of 2.5KW and a max torque of 12.4N @ 2500rpm.
Ideal for Log Splitters, Water Blasters, Plate Compactors, Concrete vibrator, Go karts Rotary hoe.

Specs:

2:1 reduction gearbox that effectively reduces the motor speed by half for uses that require a slower than normal speed
20mm keyed horizontal shaft.
Engine type: 4-stroke single cylinder . air-cooled
Bore stroke: 68mm x 54mm
Shaft length x diameter 50mm x 20mm
Keyway size: 4.78 x 34mm
Displacement: 196ml
Motor maximum power output: 7.5hp/3600rpm that reduces to 1800 maximum rpm with the 2:1 reduction gearbox
Max .torque: 12.4n.m/2500rpm
Ignition system: non-contact transistorized ignition (tci)
Max power 2.5kw
Start mode: recoil hand-operated
Fuel tank capacity: 3.6l
Fuel consumption: 290g/hp-hour (395 g/kwh)
Engine oil capacity: 0.6l
Net weight : 16kg approx

Mounting patter:
Distance between the 4 x base plate of motor bolt holes. lengthwise: 164mm from centre hole to centre hole ( bolt hole 10mm)
Widthwise: 77mm from centre hole to centre hole (With an elliptical hole 10mm x 14mm to allow for adjustment

Rotation Mode: Viewed as counterclockwise from the end of the output shaft
Air Filter Type Semi-dry, oil bath, foam filter core
Ignition mode: Transistorized magneto

Vendor : Grabstore
