Electric Motor 3HP Single Phase 1400RPM

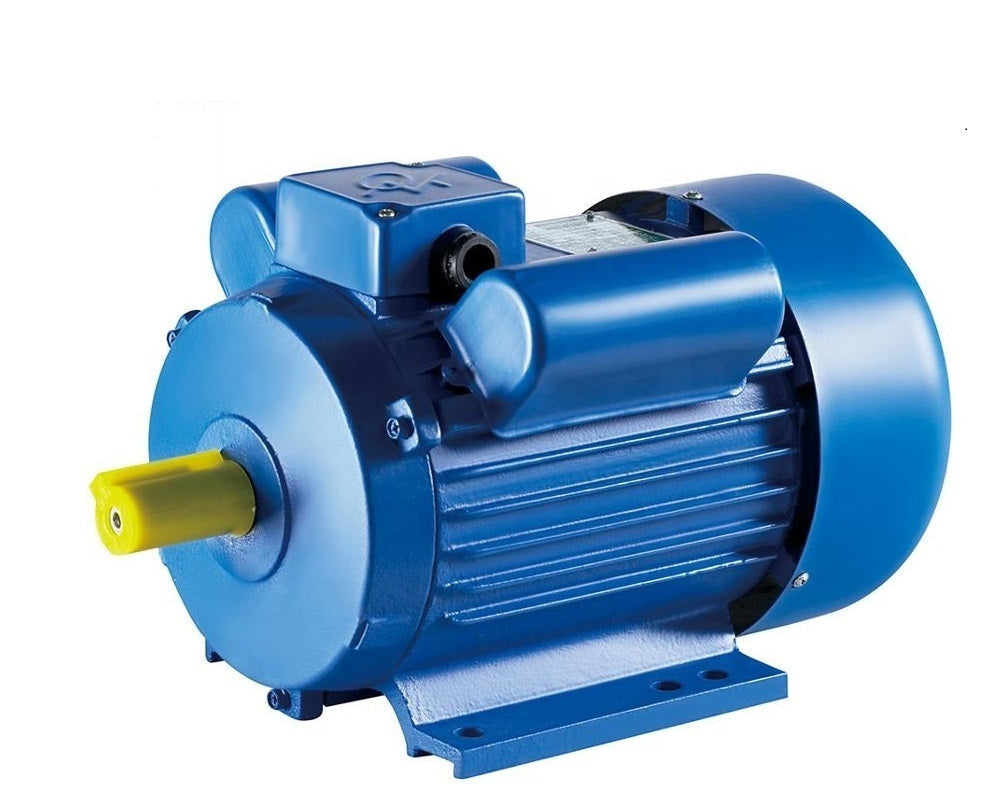

Single Phase Electric Motor 3HP 2.2kW 230V, 1400rpm, Dual Capacitor, Cast Iron Housing

A heavy-duty single-phase motor with a dual-capacitor (capacitor start, capacitor run) design. It delivers strong starting torque from a standard 230V supply, which suits workshops, farms and sites without three-phase power.

Specifications

• Power: 2.2kW (3.0HP)
• Voltage / Frequency: 230V / 50Hz
• Rated Current: 13.5A
• Speed: 1400rpm

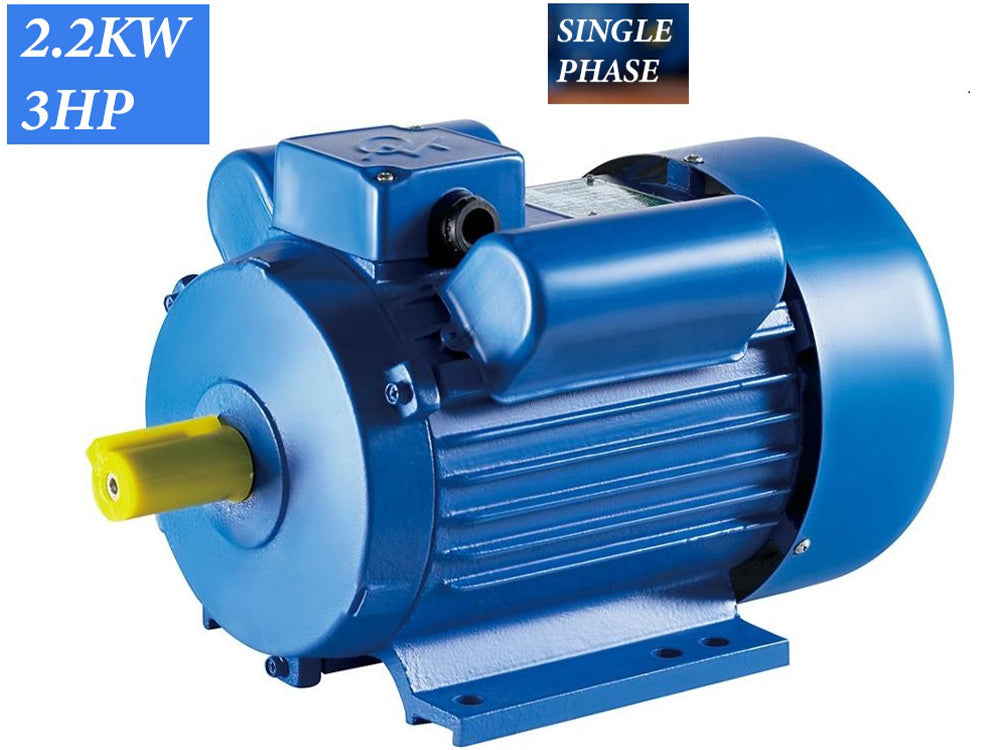

• Starting Capacitor: 200µF / 230V
• Protection Class: IP44
• Insulation Class: B

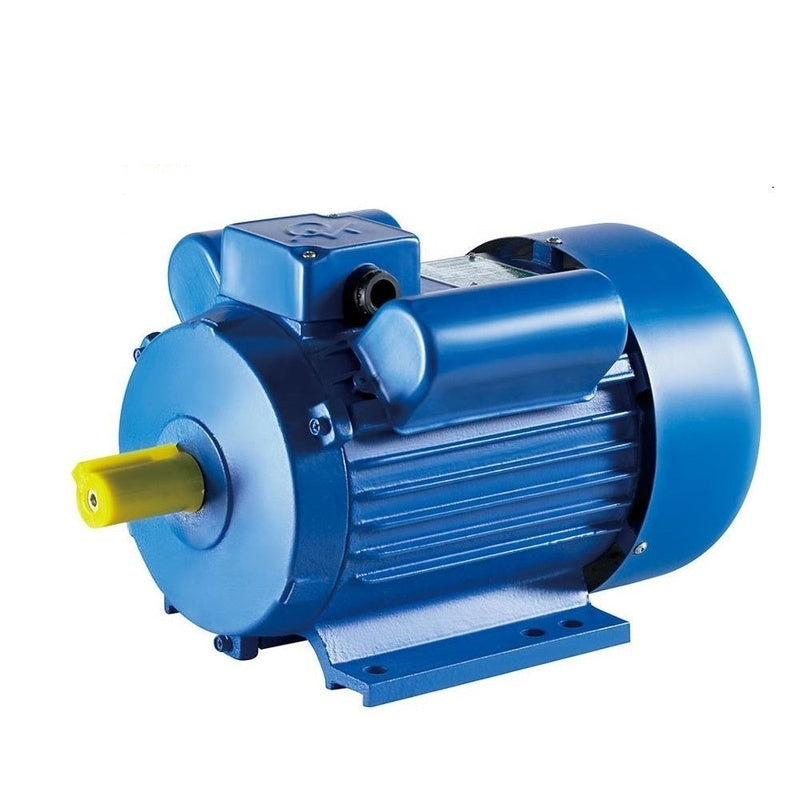

• Housing: Cast iron

Dimensions

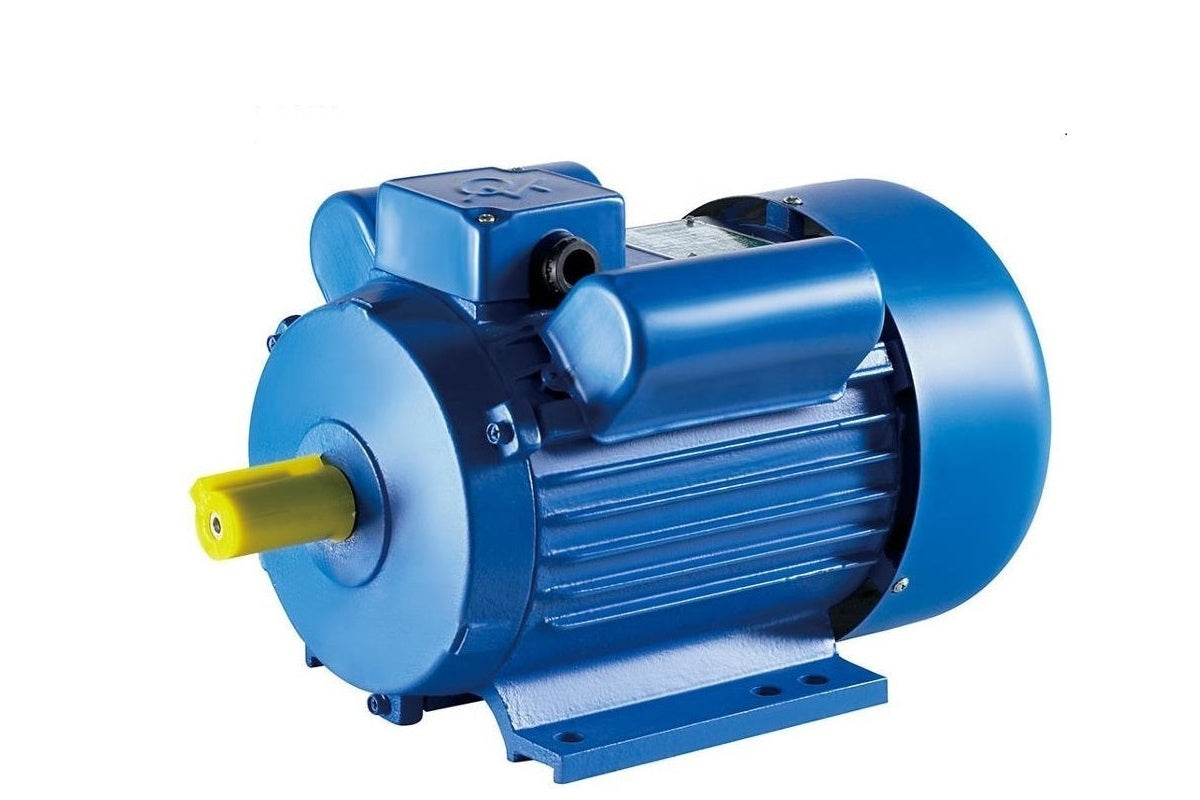

• Shaft Diameter: 24mm
• Shaft Length: 50mm
• Keyway Width: 8mm
• Baseplate: 152mm W x 174mm L
• Mounting Holes: 100–125mm front to rear, 140mm across
• Overall Body Size (excluding shaft): 295mm L x 200mm W x 225mm H

Applications
Air compressors, water pumps, fans, blowers and small machinery where only single-phase power is available.
