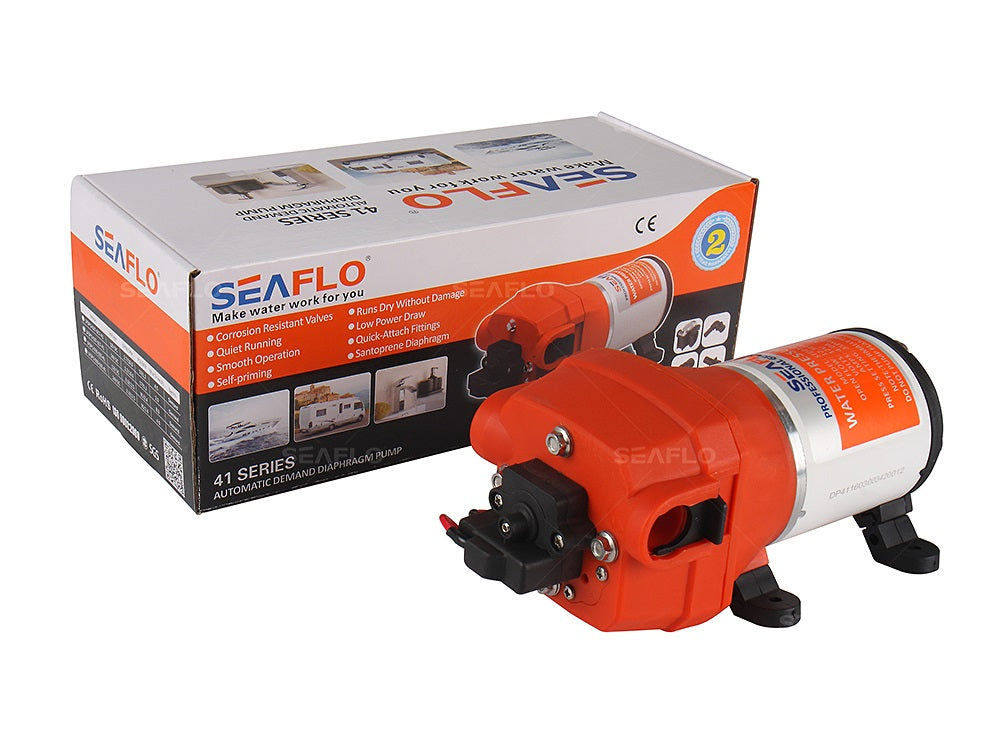

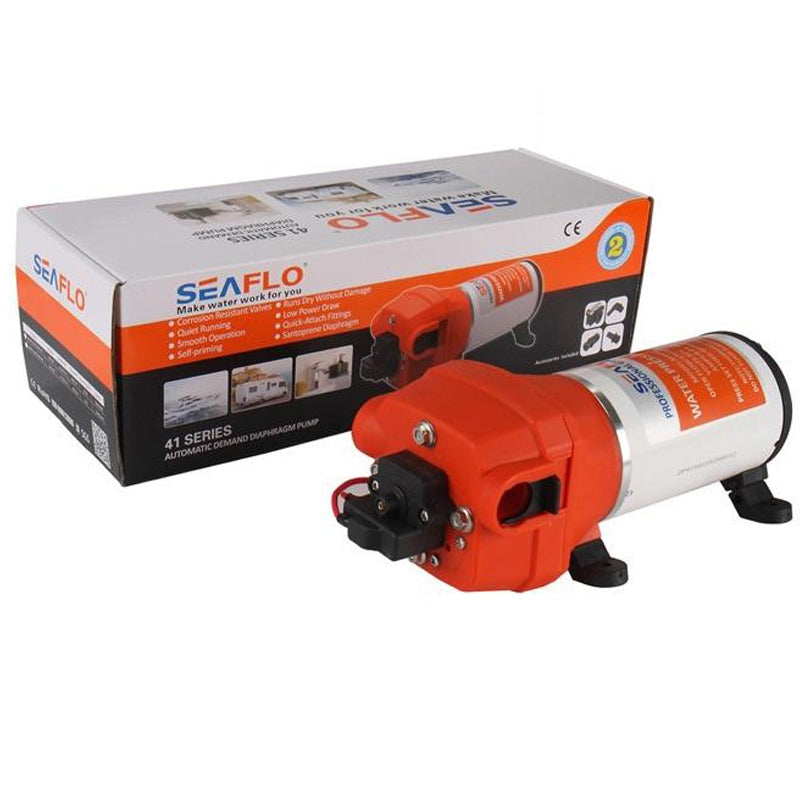

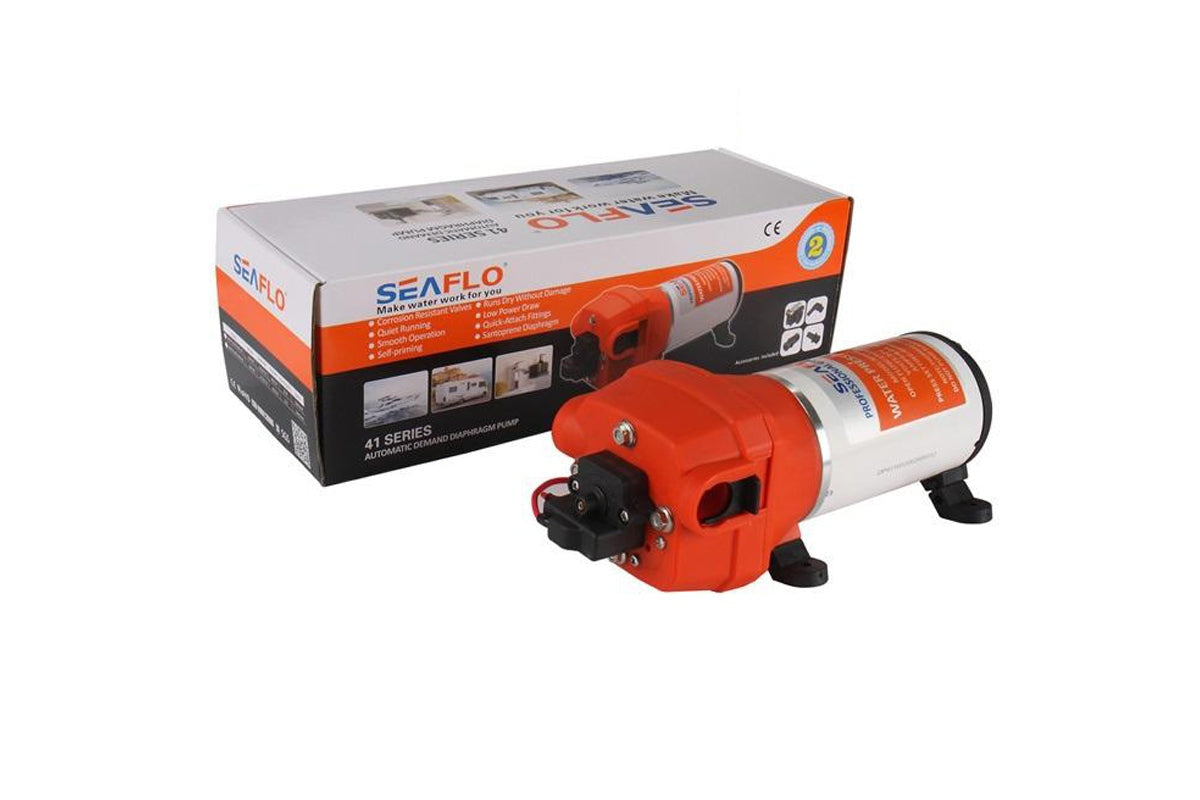

The SEAFLO 41 Series Diaphragm Pumps are engineered to deliver high-volume water flow with minimized pump cycling, courtesy of their advanced quad-chamber diaphragm and internal bypass system. These pumps are specifically designed to operate efficiently without the need for an accumulator tank and can support up to five outlets. Ideal for integration with holding tank water systems, they are perfect for use in boats, RVs, or remote cabins. With a capacity of up to 4.5 gallons per minute, these pumps are suitable for systems with up to five fixtures. The 41-Series pumps are self-priming and can run dry without incurring damage, ensuring reliable performance with low current consumption. Featuring an automatic demand water system, the built-in pressure switch activates and deactivates the pump as faucets are opened and closed. Installation, servicing, and winterization are simplified with quick snap-in port fittings.
Product Features:
- Supports up to 4 fixtures

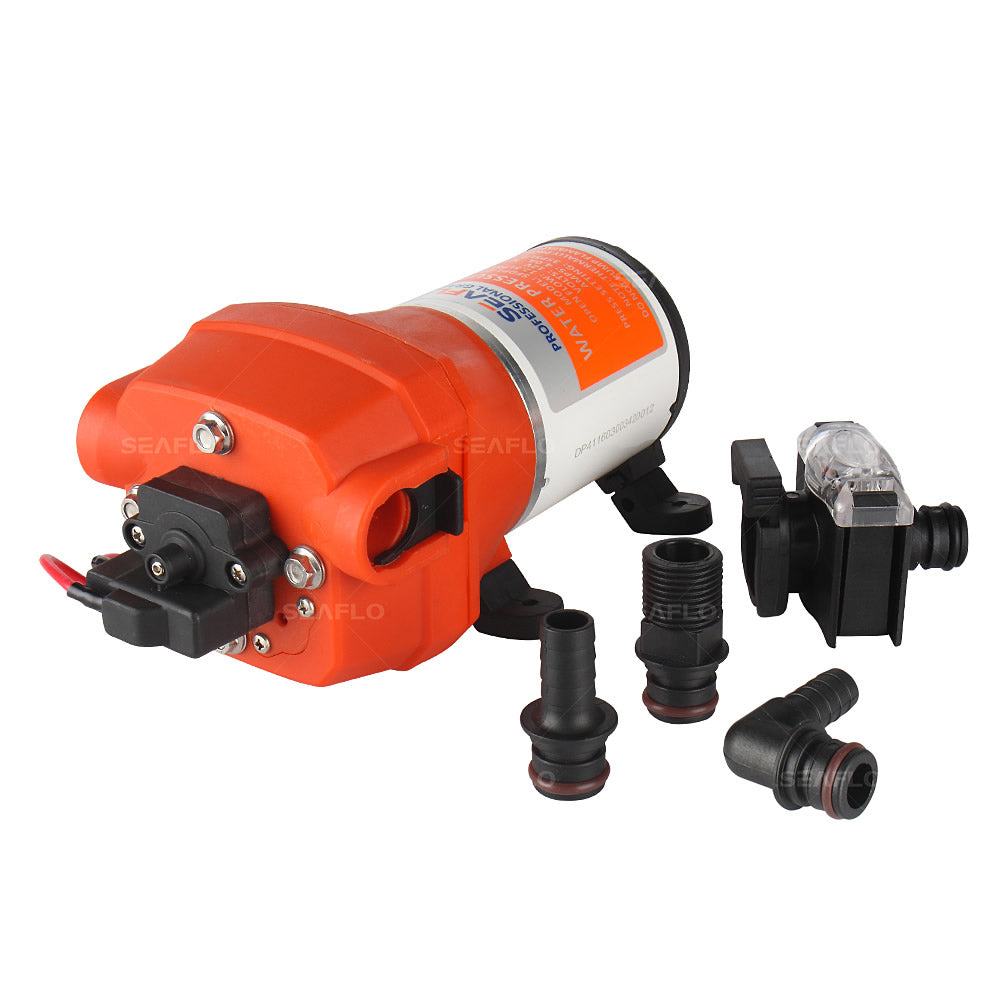

- Quick connect fittings
- Self-priming capability
- Safe to run dry
- 16AWG, 4.5 ft long leads
- Compatible with both fresh and saltwater
- 1-year warranty
- Complies with RoHS, SGS, and ISO standards
Typical Applications: Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water Systems.
Pump Specifications:
- Type: 4 chamber positive displacement diaphragm pump, self-priming, capable of being run dry
- Liquid Temperature: 140°F (60°C) Max.
- Priming Capabilities: 6 feet (1.8 m) suction lift
- Max Pressure: 40 PSI (2.8 bar)
- Inlet/Outlet Ports: Quick Attach
- Weight: 5.0 lbs (2.30 kg)
- Model: SFDP1-045-040-41
- Voltage: 12V
- Open Flow GPM/LPM: 4.5 / 17.0
- Control Type: Switch & Bypass
- Max Draw: 12.13
- Shut-off Pressure (PSI/BAR): 40 / 2.8
- Valves: EPDM
- Diaphragm: Santoprene
- Ports: QUICK ATTACH
- Wire Connections: 2-Pin/Leads
Experience the efficiency and reliability of the SEAFLO 41 Series Diaphragm Pumps today. Enhance your water system with this robust solution. Order now and enjoy seamless water flow management!
