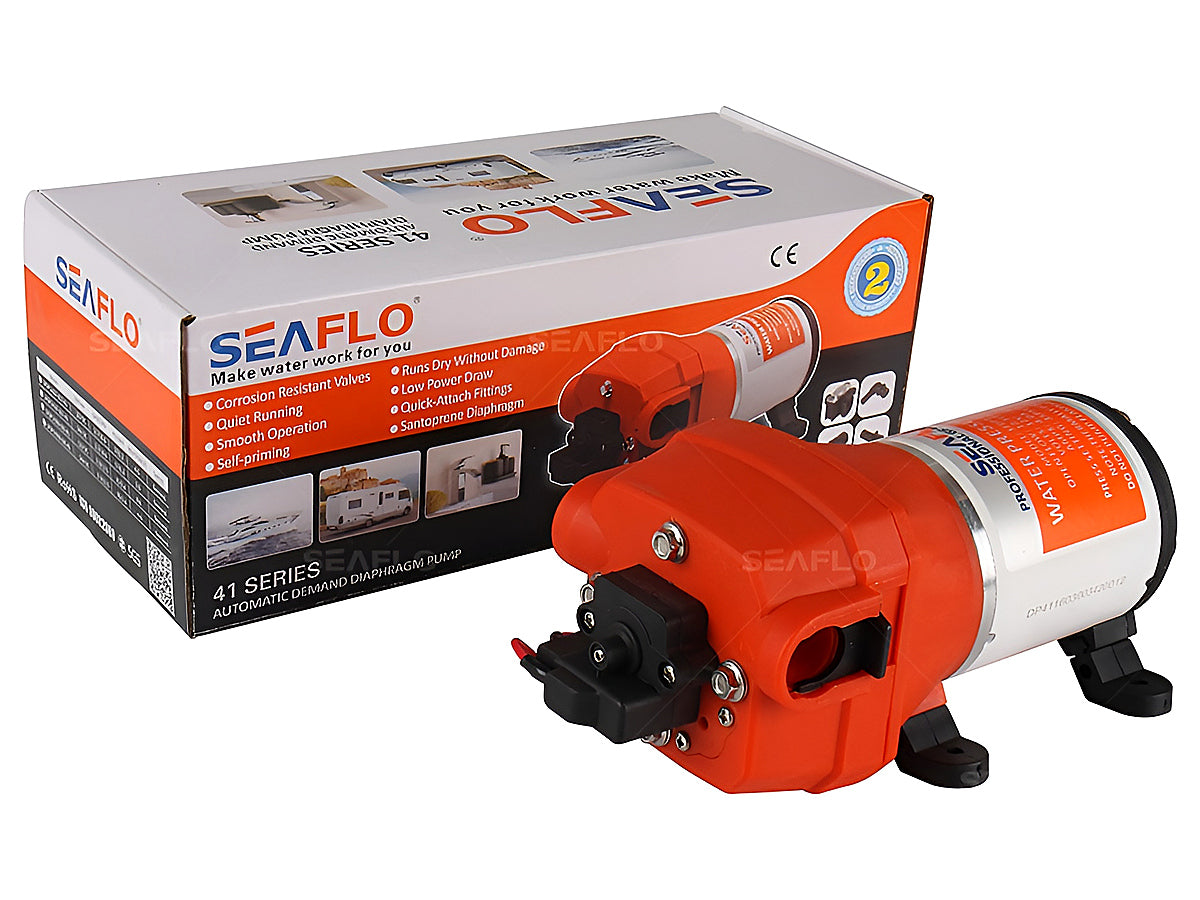

Seaflo High Water Pressure 12V 40Psi Diaphragm Pump Fl-40

Product Description
$112.99
Maximum quantity available reached.

SEAFLO 41 Series Diaphragm Pumps

The 41-Series pump provides high volume water flow with reduced pump cycling, thanks to the quad? chamber diaphragm and internal bypass. These models are designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 4.5 gallons per minute, suitable in a system of up to five fixtures. The 41-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed. They're easy to install service and winterize with quick snap-in port fittings.

MORE FEATURES & BENEFITS
-Can supply up to 4 fixtures
-Quick connect fitting
-Self priming
-Run dry safe -16AWG,4.5＂long Leads
-Can be use for Fresh & Salt Water
- 1 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards

TYPICAL APPLICATIONS
Marine, RV, Agricultural Spraying, General Industial, Filtration, Beverage Processing, Solar Water System.

PUMP:

Type
4 chamber positive

displacement diaphragm
pump, self priming, capable of being run dry

Liquid Temperature
140°F (60°C) Max.

Priming Capabilities
6 feet (1.8 m) suction lift

Max Pressure
40 PSI (2.8 bar)

Inlet/Outlet Ports
Quick Attach

Weight
5.0 lbs (2.30 kg)

Model: SFDP1-045-040-41
Voltage: 12V
Open Flow GPM/LPM: 4.5 / 17.0
Control Type: switch & By pass
Max Draw: 12.13
Shut-off Pressure （PSI/BAR): 40 / 2.8
Valves: EPDM
Diaphragm: Santoprene
Ports: QUICK ATTACH
Wire Connections: 2-Pin/Leads

Vendor : SEAFLO
