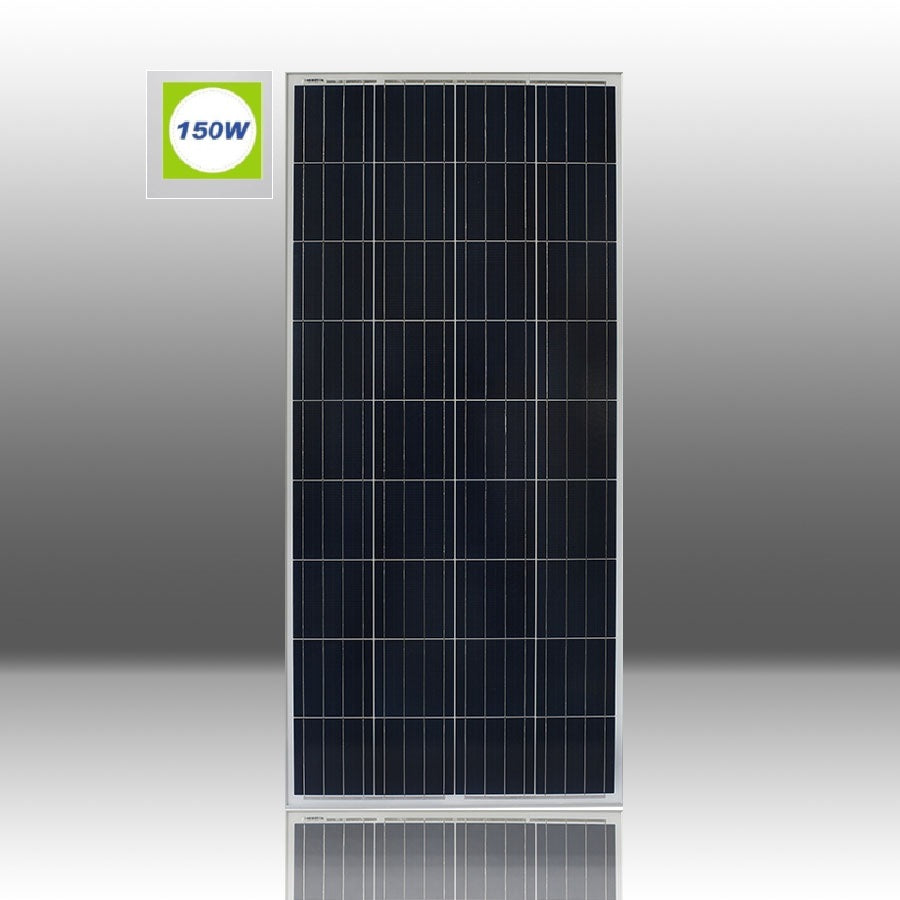

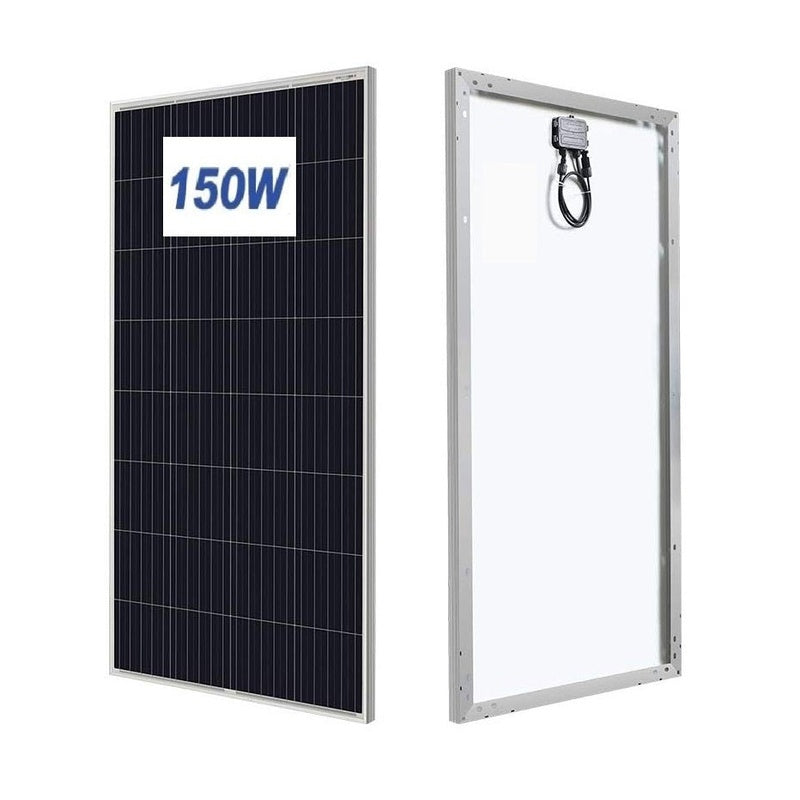

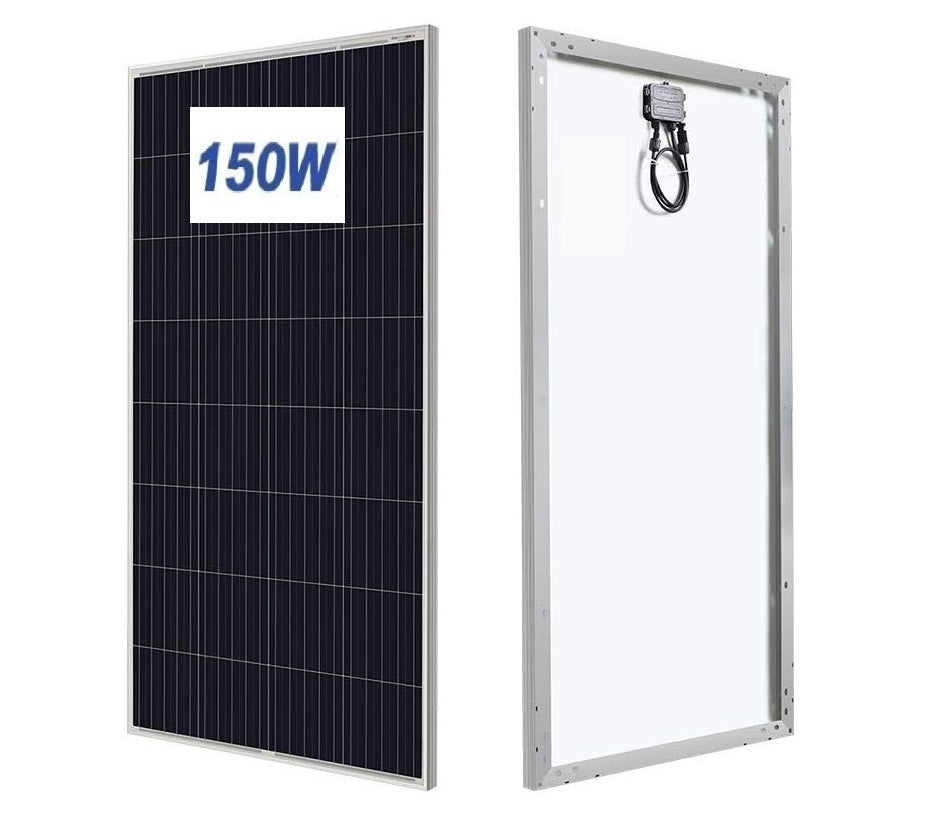

150W SOLAR PANEL
150W Polycrystalline Solar Panel Photovoltaic – Solar Panel for Boat, Caravan, RV and Home Solar System
High-efficiency 150W Polycrystalline Solar Panel designed for reliable off-grid power. This Solar Panel is ideal for boats, caravans, motorhomes, cabins, and home solar systems. Built with a strong aluminium frame and toughened glass, this Solar Panel is designed for durability and long-term outdoor performance.
Solar Panel Specifications
Maximum Power (Pmax): 150W
Maximum Power Voltage (Vmp): 18.0V
Maximum Power Current (Imp): 8.33A
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 9.17A
Power Tolerance: ±3%
Maximum System Voltage: DC 1000V
Cable Length: 1m
Weight: 9.85 kg
Solar Panel Size: 1480 × 680 × 35 mm

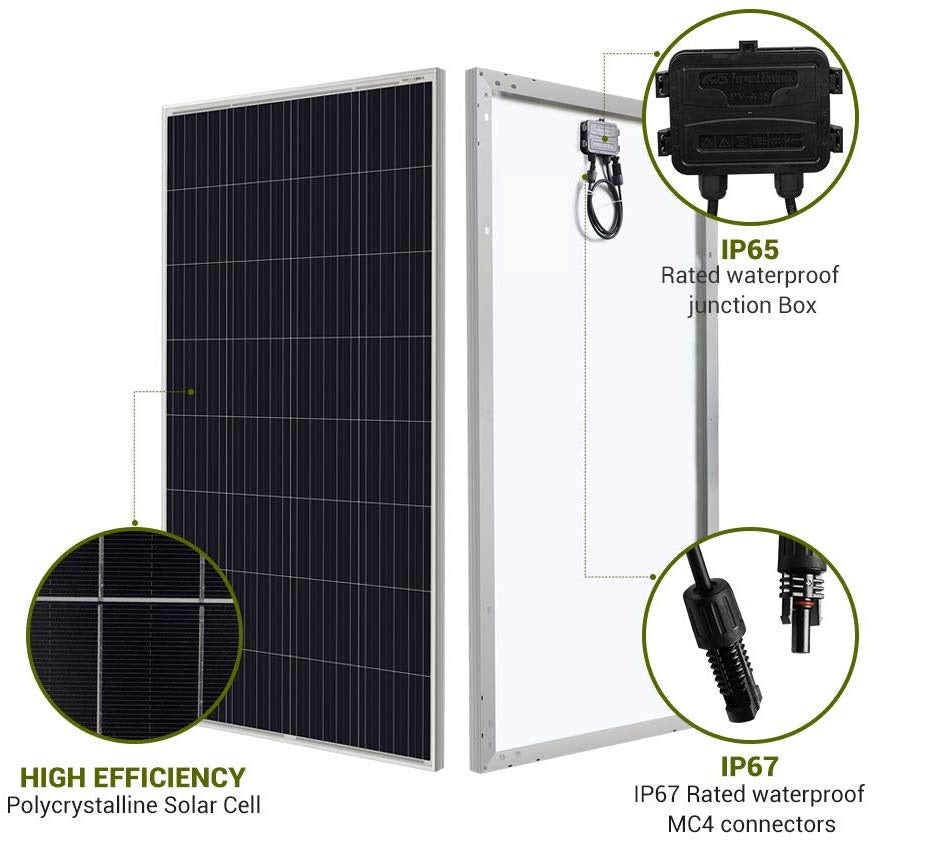

Solar Panel Features
Lightweight Solar Panel design
Rigid anodised aluminium alloy frame
Toughened glass protection
High efficiency photovoltaic Solar Panel performance
Reliable Solar Panel for outdoor installations
Solar Charge Controller Specifications
Charging Settings
-
Equalization:
14.4V (Sealed Battery)
14.2V (Gel Battery)
14.6V (Flooded Battery)
Float Charge: 13.7V (default, adjustable)
Discharge Stop: 10.7V (default, adjustable)
Discharge Reconnect: 12.6V (default, adjustable)
Operating Temperature: -35°C ~ +60°C
Solar Panel Applications
This Solar Panel can be used in many solar power applications including:
Solar Panel for Power Stations
Solar Panel for Solar Power Generation Systems
Solar Panel for Street Lights
Solar Panel for Garden Lights
Solar Panel for Caravan and RV Solar Systems
Solar Panel for Boats and Marine Use
Solar Panel for Solar Cars
Solar Panel for Off-Grid Solar Systems
Solar Panel for many other solar energy applications
Package Includes
Note: Wiring is included as shown in the photo. No extra wiring is included. You can purchase MC4 cable for Solar Panel separately from us if required.
