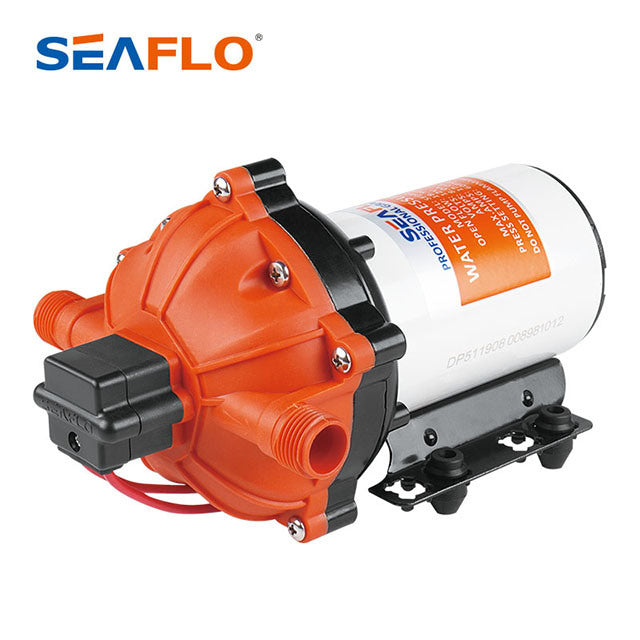

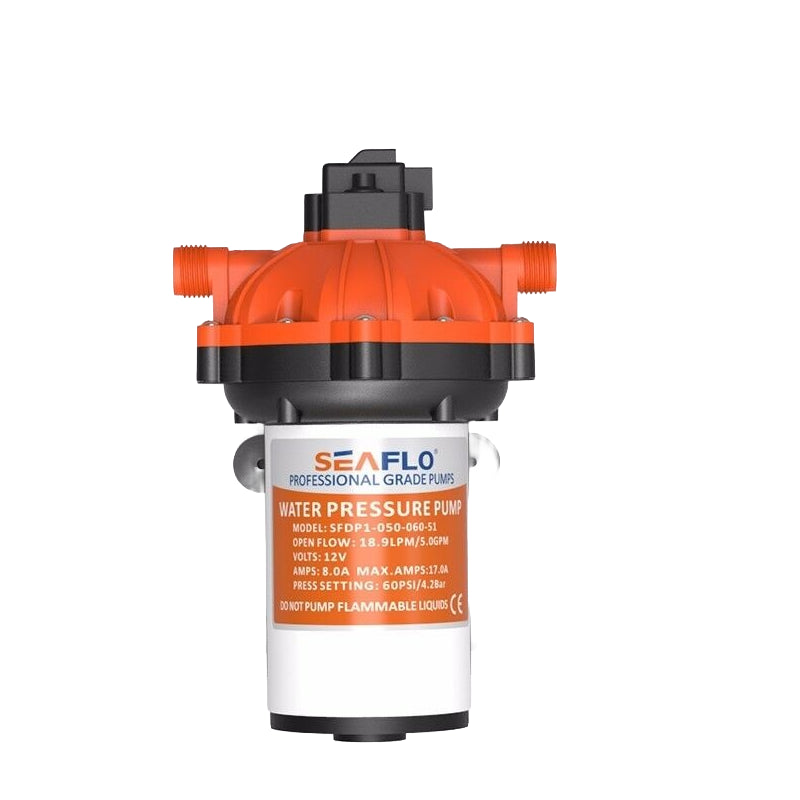

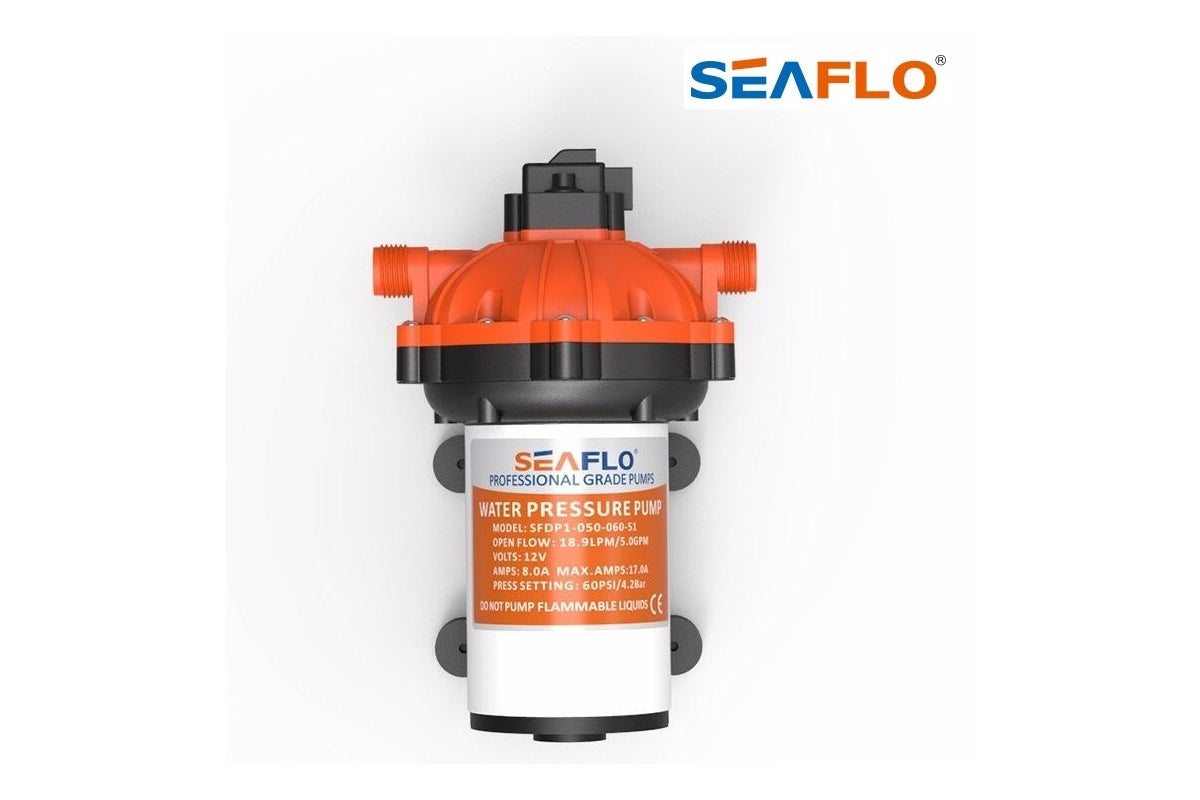

SEAFLO Water Pump SFDP1-050-060-51
60PSI Diaphragm Pump

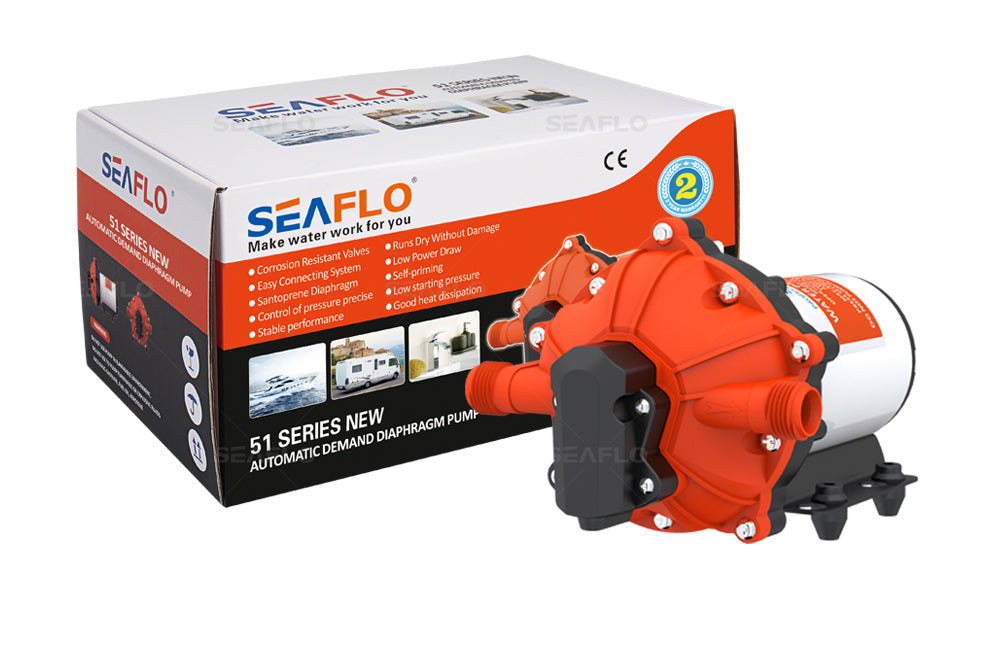

Seaflo 51 Series Automatic Diaphragm Pump
The 51 NEW Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 51-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed. They are easy to install service and winterize.
MORE FEATURES & BENEFITS
-Can supply up to 4 fixtures
-Precise pressure control and stable performance
-Good sealing performance,waterproof and dustproof
-Low starting pressure,reduces cycling
-Good heat dissipation -Run dry safe
-Can be use for Fresh&Salt Water
- Meets or exceeds RoHS, SGS, and ISO standards
TYPICAL APPLICATIONS
Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water System.
PUMP

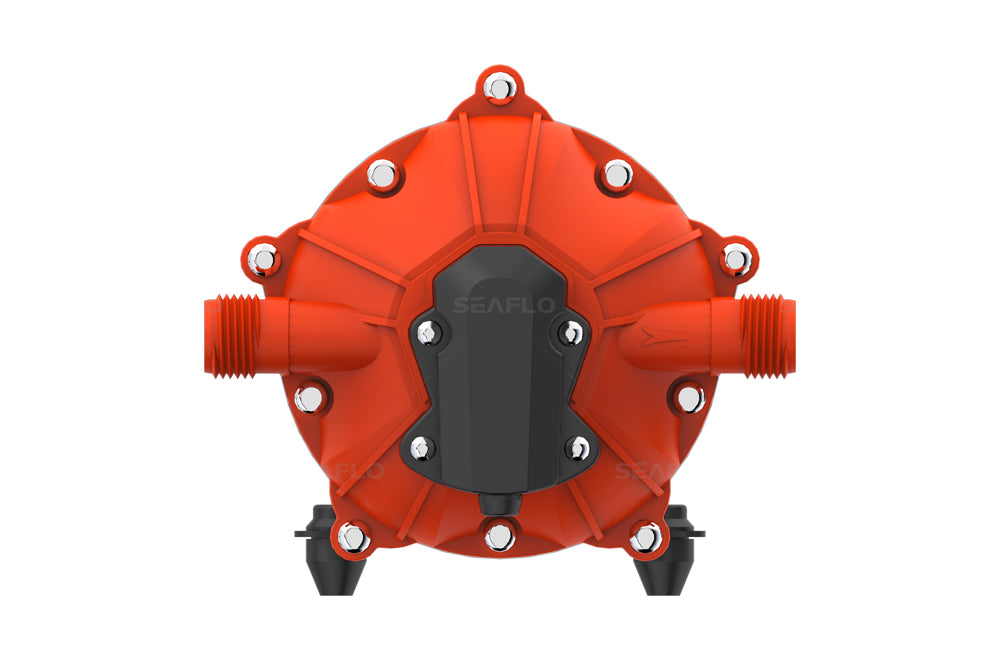

Type: 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type: Pressure switch
Max Recommended: Temperature 60° C（140° F）
Priming Capabilities: 6 feet (1.8 m) suction lift
Re-start Pressure:
Shut-on Pressure 20 PSI ：20 PSI ±3 PSI
Shut-off Pressure 60 PSI ：60 PSI ±3 PSI

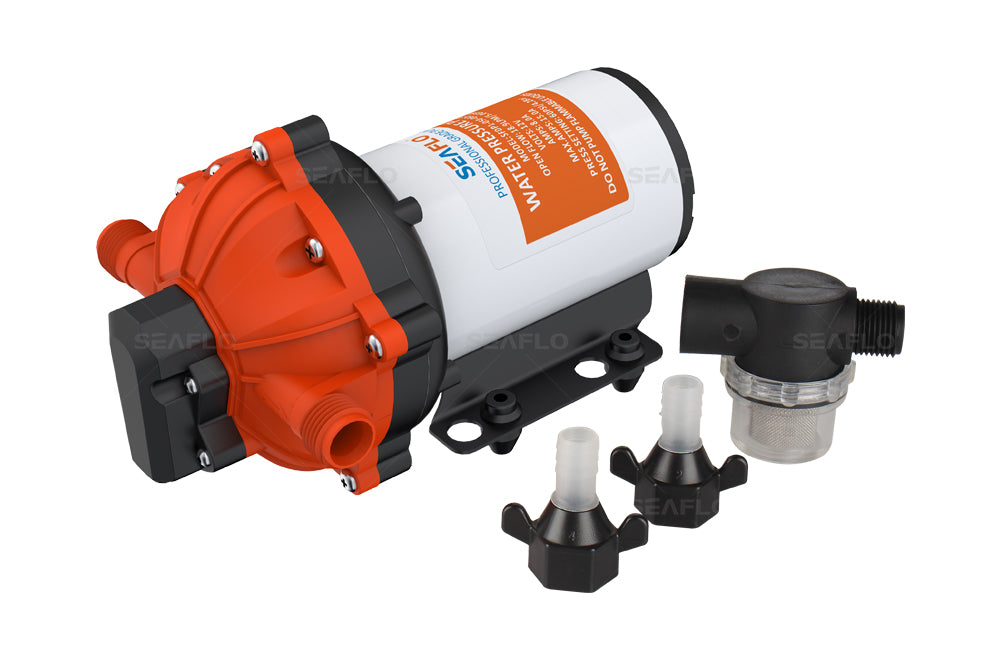

Inlet/Outlet Ports: 1/2"-14 MNPT
Weight: 6.1 lbs (2.8 kg)
MOTOR
Leads: 14 AWG, 13" (33 cm) long with 2-Pin connector / Leads
Duty Cycle: Continuous
Max.Amp Draw: 15.0A
Fuse: 25.5 A
Voltage: 12V
Open Flow (GPM/LPM): 5.0 / 18.9
Control Type: switch
Shut-off Pressure (PSI/BAR): 60 / 4.2

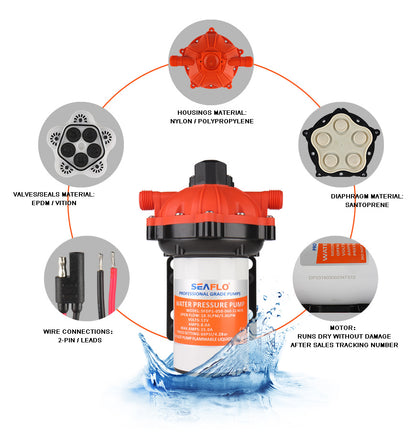

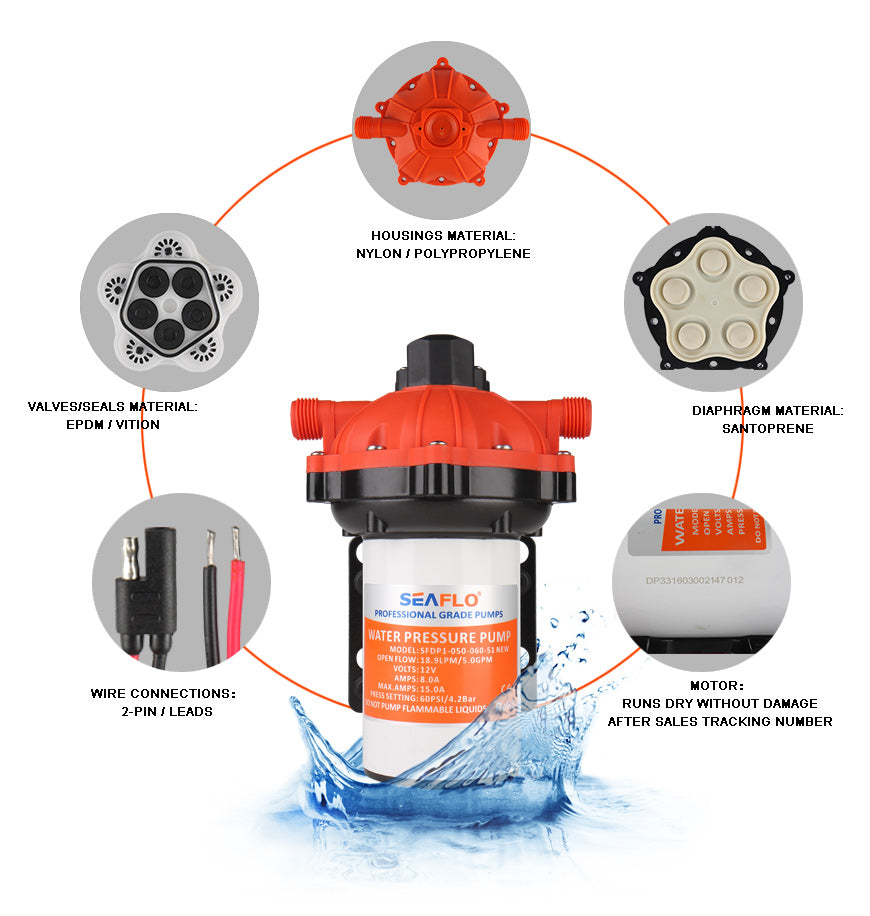

Valves: EPDM
Diaphragm: Santoprene
Ports : 1/2"-14 MNPT
Wire Connections: 2-Pin/Leads
