Solar Panel

Product Description
$221.99
Maximum quantity available reached.

150W SOLAR PANEL

Solar Panel Dimensions:1480x680x30mm

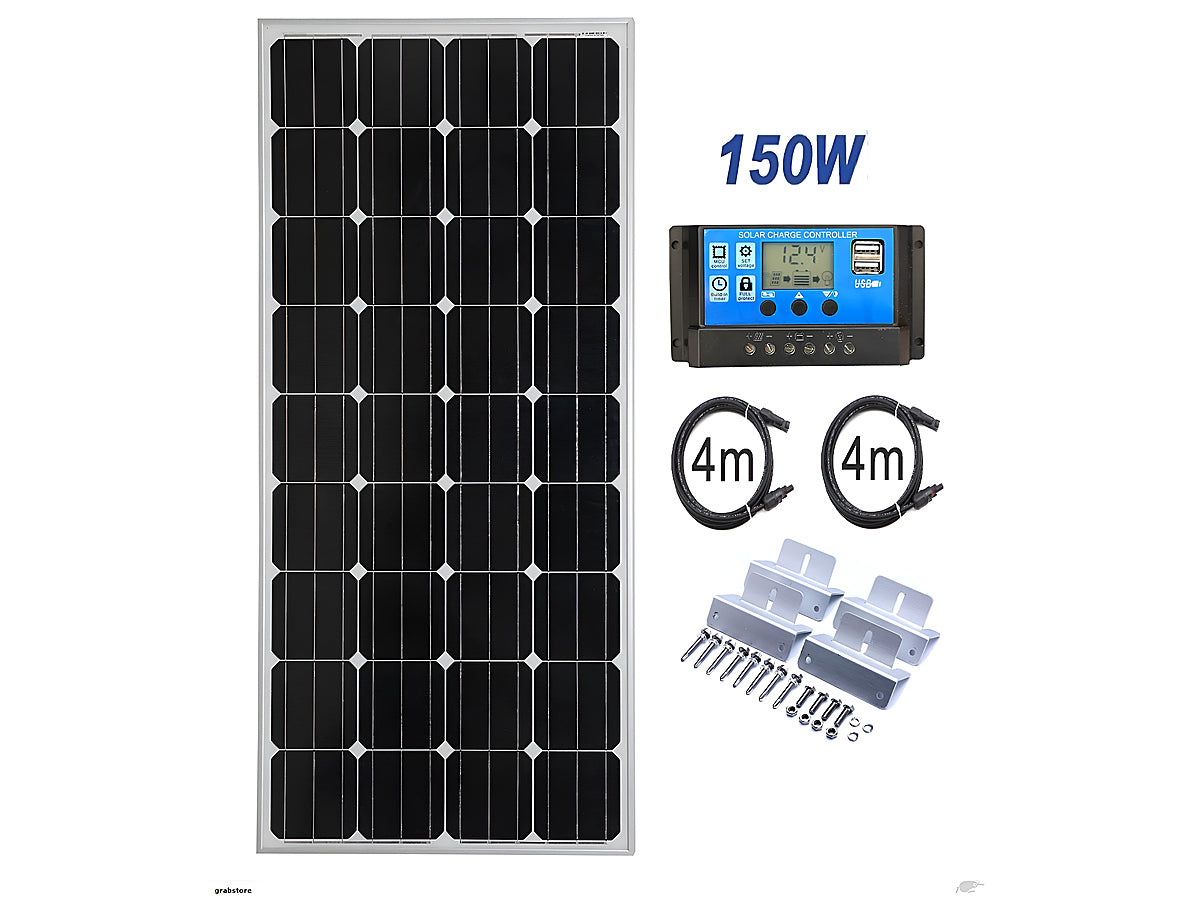

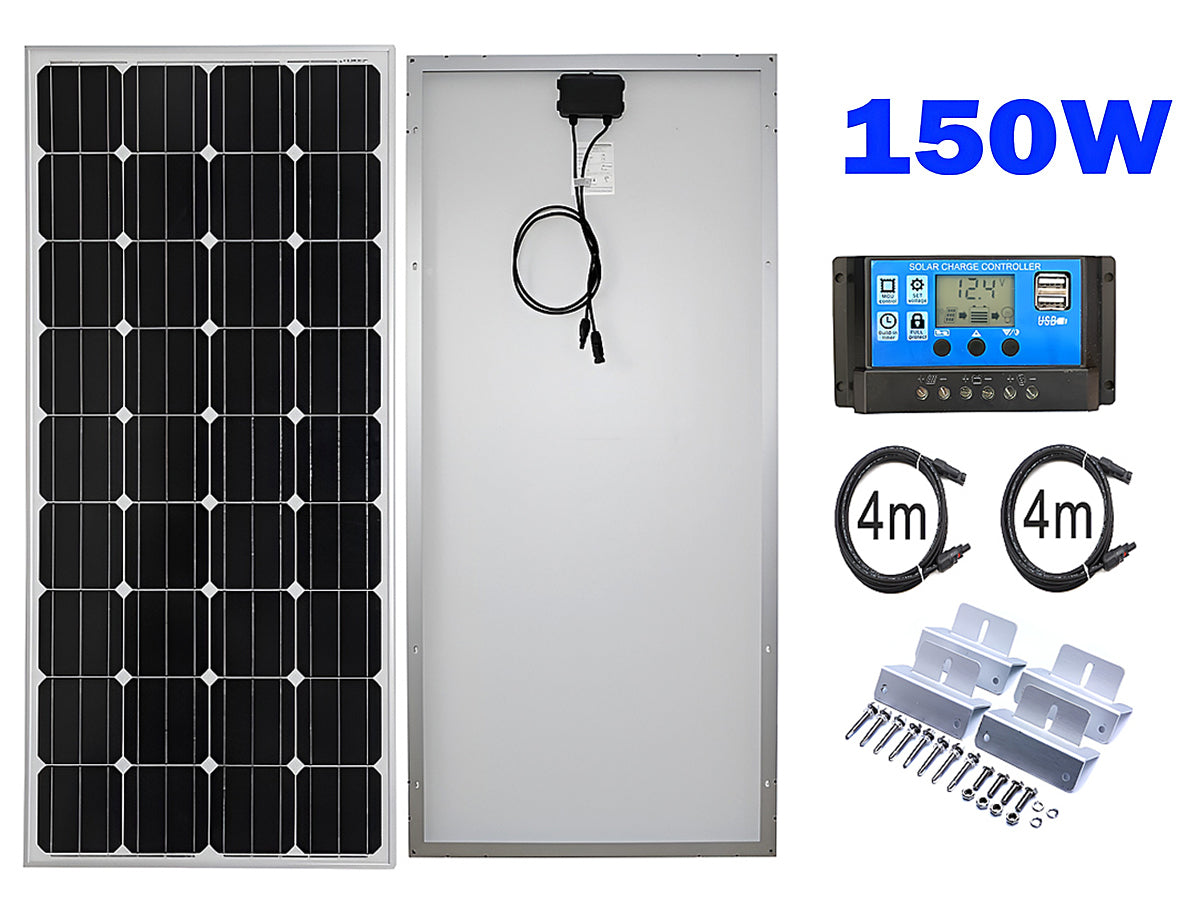

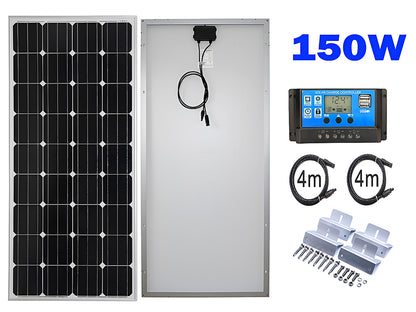

Package Includes:
1 x 150w Mono-Crystalline Solar Pane

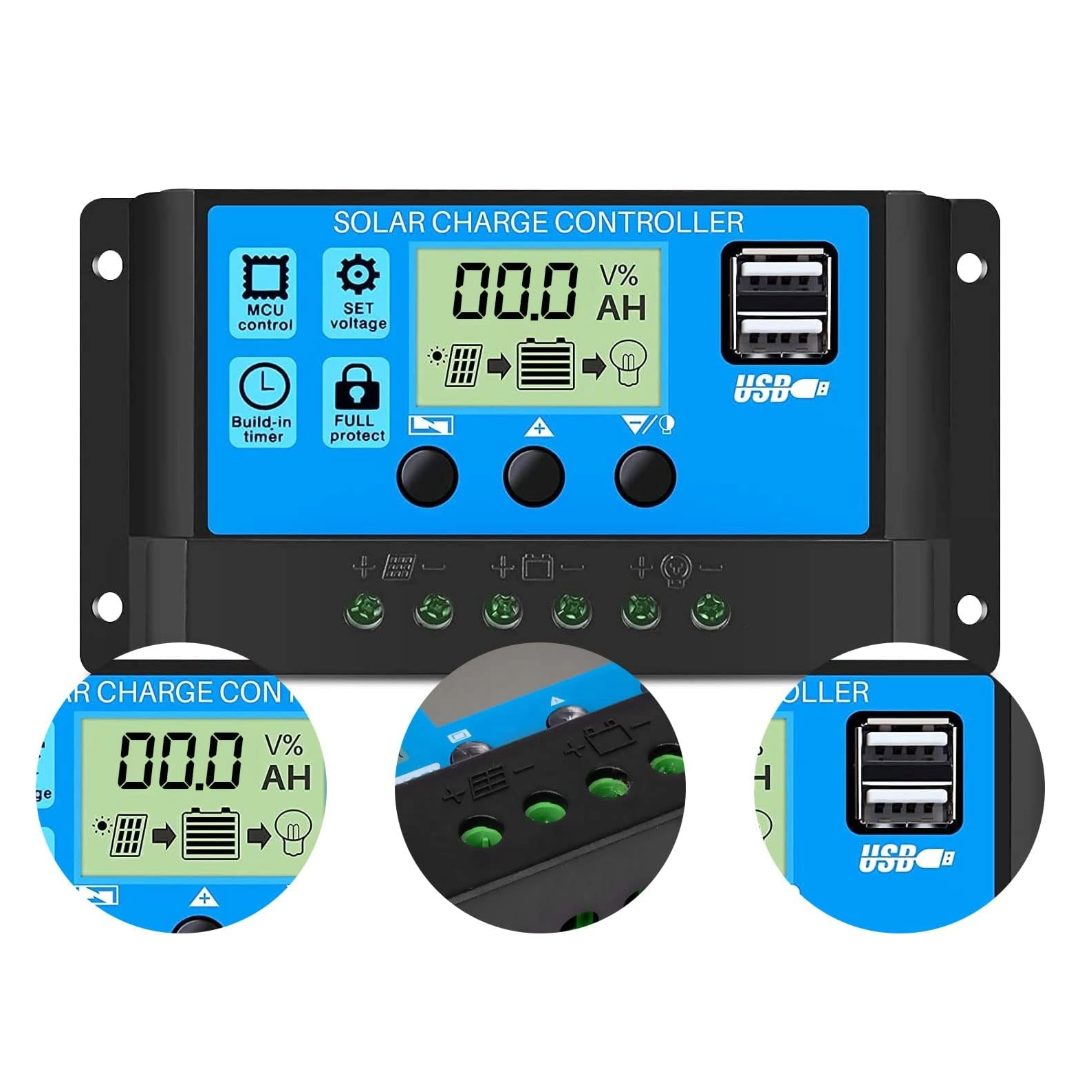

1 x PWM 12V/24V Auto Switch Charge Controller
2 x MC4 cables

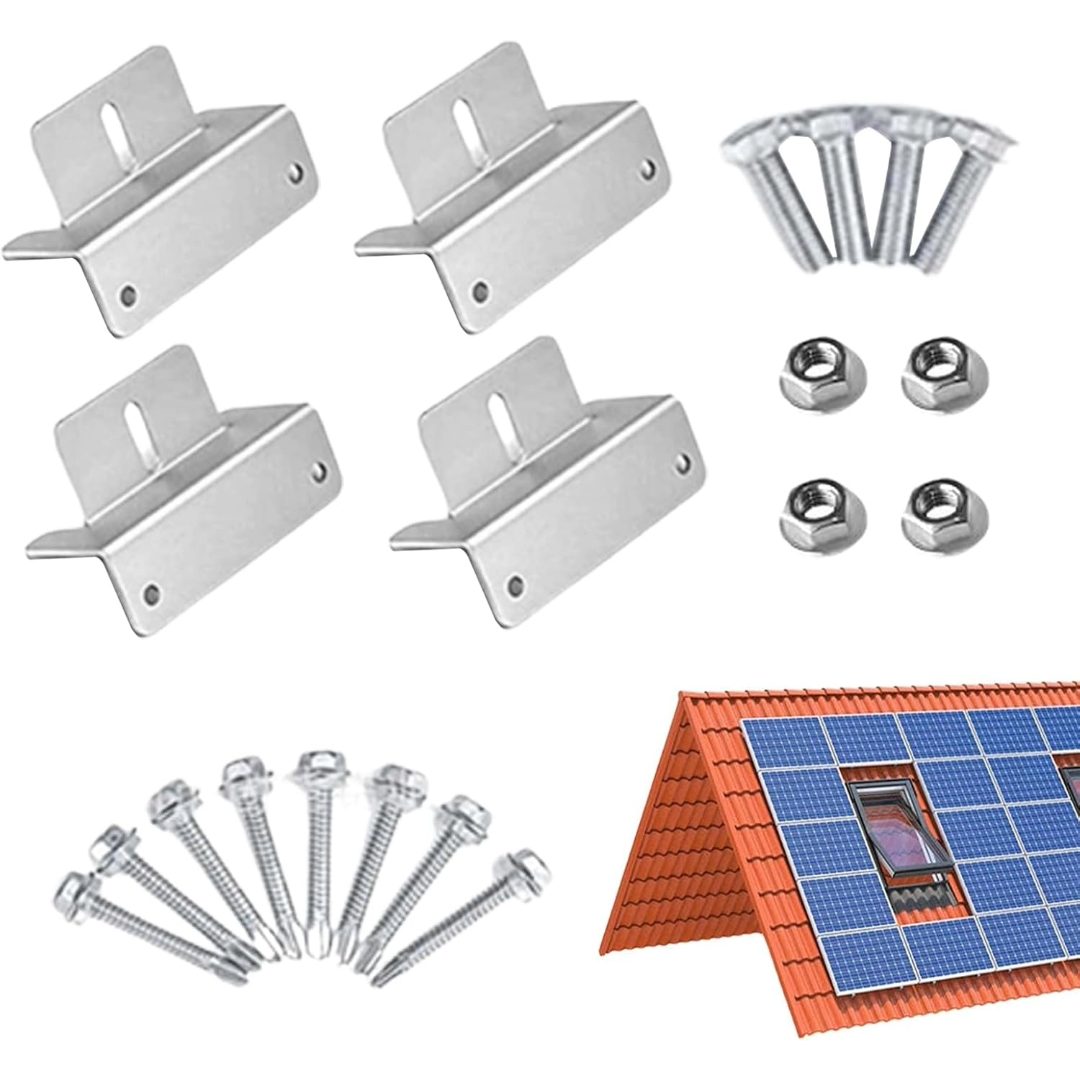

1x Solar Mounting Kit

150w Mono-Crystalline Solar Panel Photo-voltaic for boat caravan home

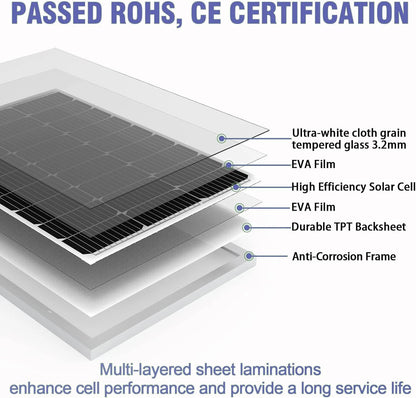

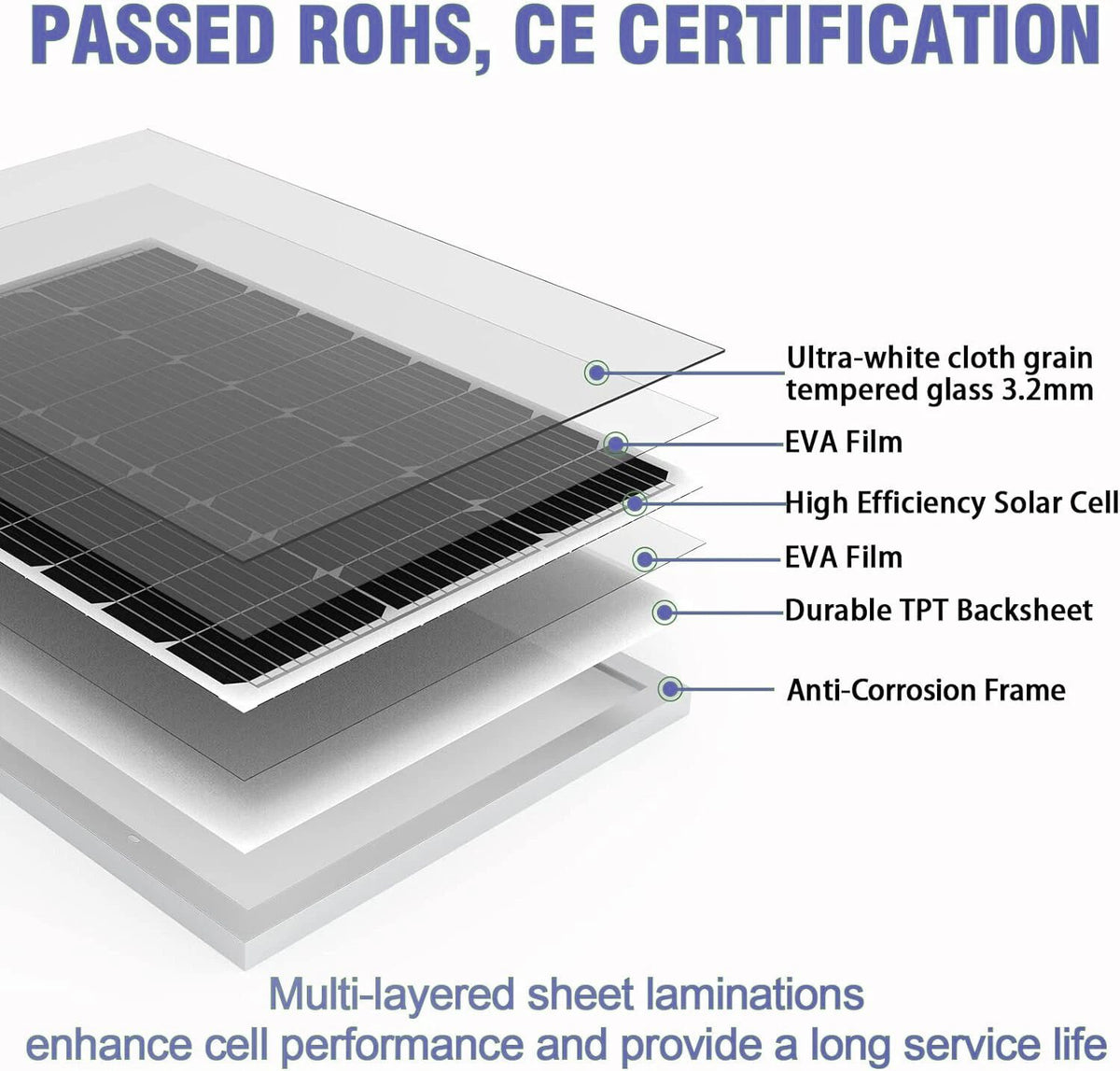

The low reflective properties of the 3.2mm Solar Panel safety/tempered glass front allows for Solar Panel maximum light absorption, while the low-iron Solar Panel content of the glass gives it more transparency than other types of Solar Panel glass for maximum solar production. A corrosion-resistant anodized aluminium frame surrounding the solar panel adds strength and allows for easy mounting.

The Solar Panel junction box attached to the back of the solar panel has a weather tight seal with an Ingress Protection rating of 65, a built-in Solar Panel bypass diode in the junction box provided added protection to panels connected in series during partial shading on an array. This solar panel is also supplied with 900mm of cable for each positive/negative with the standard MC4 solar panel connectors crimped onto each cable.


Solar Panel Description:
Maximum Power (Pmax): 150W Solar Panel
Maximum Power Voltage (VMP): Solar Panel 18.0V
Maximum Power Current (IMP): Solar Panel 8.33A
Solar Panel Open Circuit Voltage (VOC): 21.60V
Short Circuit Current (ISC): 9.17A
Weight: Solar Panel 9.85KG
Size: 1480*680*35mm
Power Tolerance: +/-3%
Maximum System Voltage: DC1000V
Lightweight designed Solar Panel with rigid anodised aluminium alloy frame and toughened glass

Solar Panel made of High-Efficiency PV Cells
Solar Panel Appearance Consistency

Solar Panel Frame:
Conventional frame
Silver frame Solar Panel



Solar Panel Applications:
Solar Panel can be used for Power Stations, Generation Systems, Street Lights, garden Lights and many other application.
