150W SOLAR PANEL

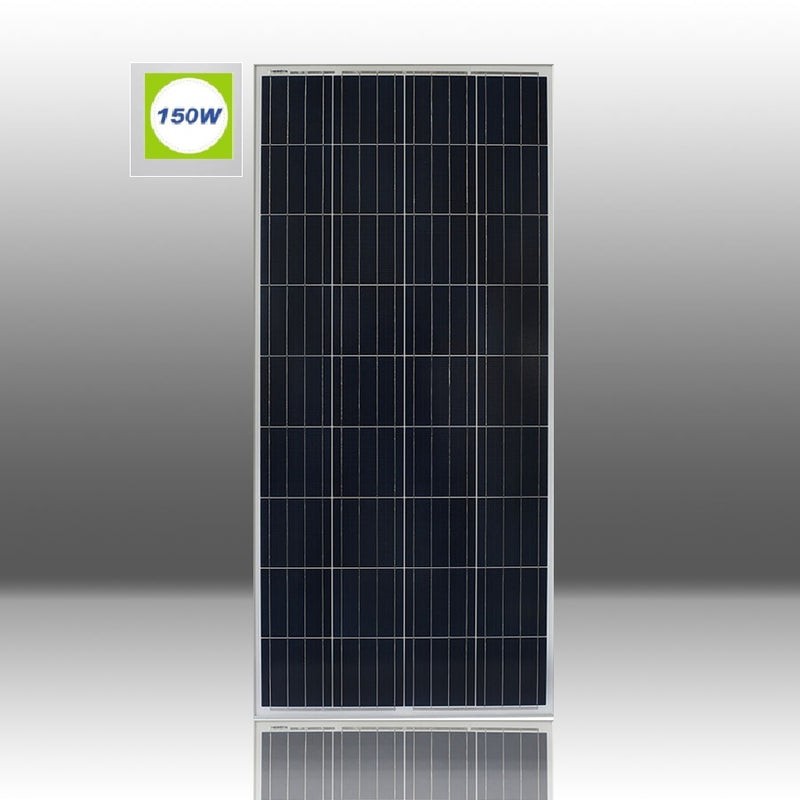

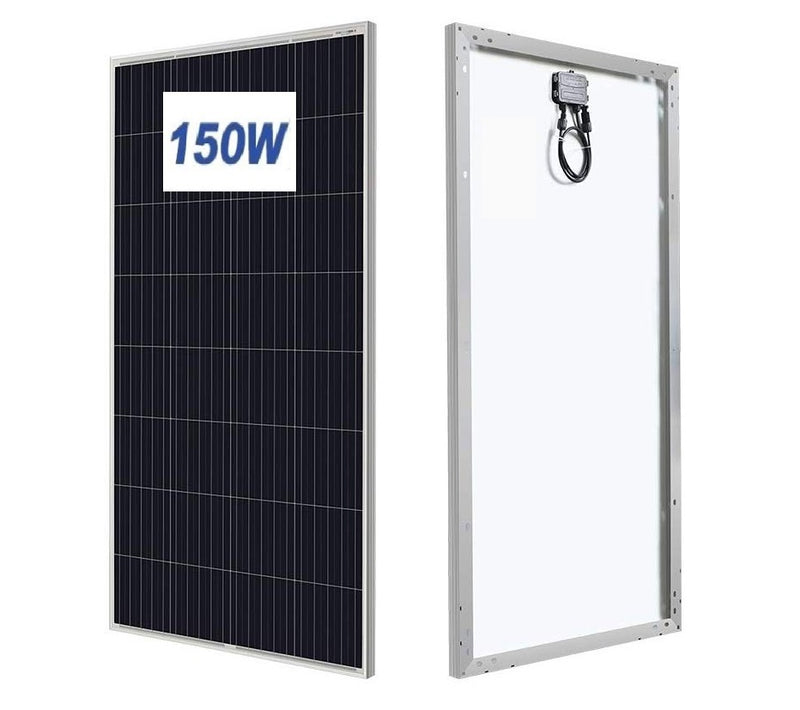

150W Polycrystalline Solar Panel Photovoltaic – Solar Panel for Boat, Caravan, RV and Home Solar System

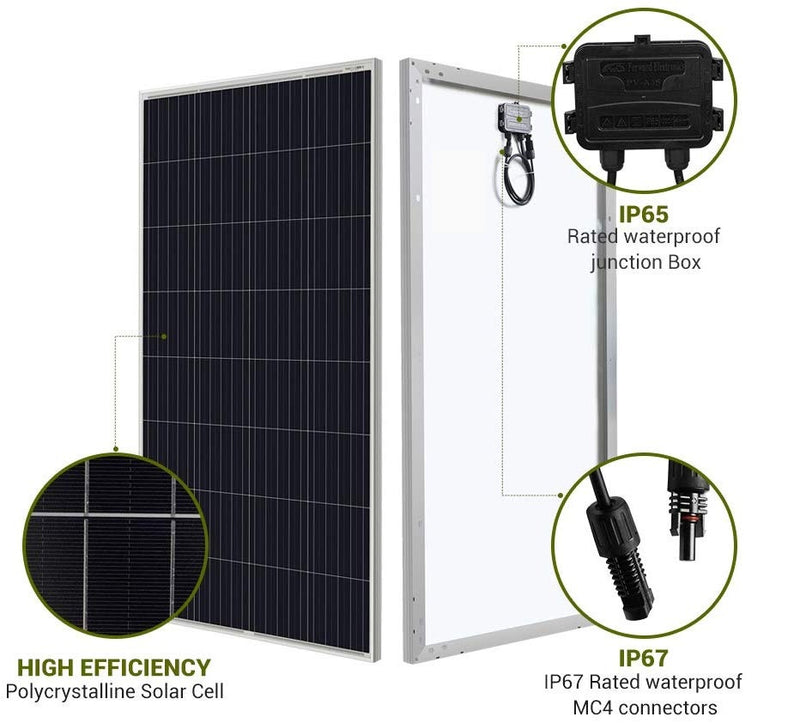

High-efficiency 150W Polycrystalline Solar Panel designed for reliable off-grid power. This Solar Panel is ideal for boats, caravans, motorhomes, cabins, and home solar systems. Built with a strong aluminium frame and toughened glass, this Solar Panel is designed for durability and long-term outdoor performance.
Solar Panel Specifications
-
Maximum Power (Pmax): 150W
-
Maximum Power Voltage (Vmp): 18.0V
-
Maximum Power Current (Imp): 8.33A
-
Open Circuit Voltage (Voc): 21.6V
-
Short Circuit Current (Isc): 9.17A
-
Power Tolerance: ±3%
-
Maximum System Voltage: DC 1000V
-
Cable Length: 1m
-
Weight: 9.85 kg
-
Solar Panel Size: 1480 × 680 × 35 mm
Solar Panel Features
-
Lightweight Solar Panel design
-
Rigid anodised aluminium alloy frame
-
Toughened glass protection
-
High efficiency photovoltaic Solar Panel performance
-
Reliable Solar Panel for outdoor installations
Solar Charge Controller Specifications
-
Battery Voltage: 12V / 24V Auto
-
Charging Current: 30A
-
Discharging Current: 30A
-
Max Solar Input:
-
50V (for 24V battery)
-
25V (for 12V battery)
-
Charging Settings
-
Equalization:
-
14.4V (Sealed Battery)
-
14.2V (Gel Battery)
-
14.6V (Flooded Battery)
-
-
Float Charge: 13.7V (default, adjustable)
-
Discharge Stop: 10.7V (default, adjustable)
-
Discharge Reconnect: 12.6V (default, adjustable)
Operating Temperature: -35°C ~ +60°C
Solar Panel Applications
This Solar Panel can be used in many solar power applications including:
-
Solar Panel for Power Stations
-
Solar Panel for Solar Power Generation Systems
-
Solar Panel for Street Lights
-
Solar Panel for Garden Lights
-
Solar Panel for Caravan and RV Solar Systems
-
Solar Panel for Boats and Marine Use
-
Solar Panel for Solar Cars
-
Solar Panel for Off-Grid Solar Systems
-
Solar Panel for many other solar energy applications
Package Includes
-
1 × High Efficiency 150W Polycrystalline Solar Panel
Note: Wiring is included as shown in the photo. No extra wiring is included. You can purchase MC4 cable for Solar Panel separately from us if required.
