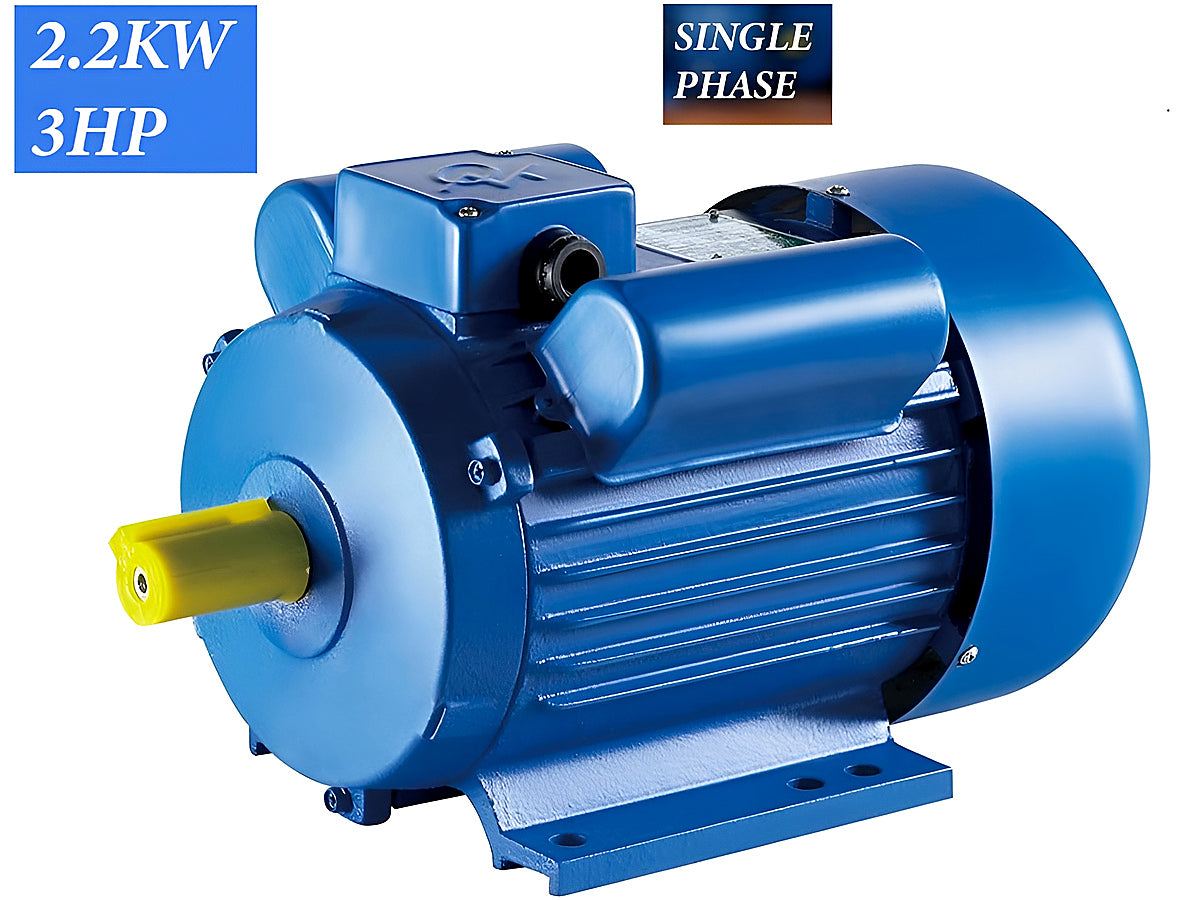

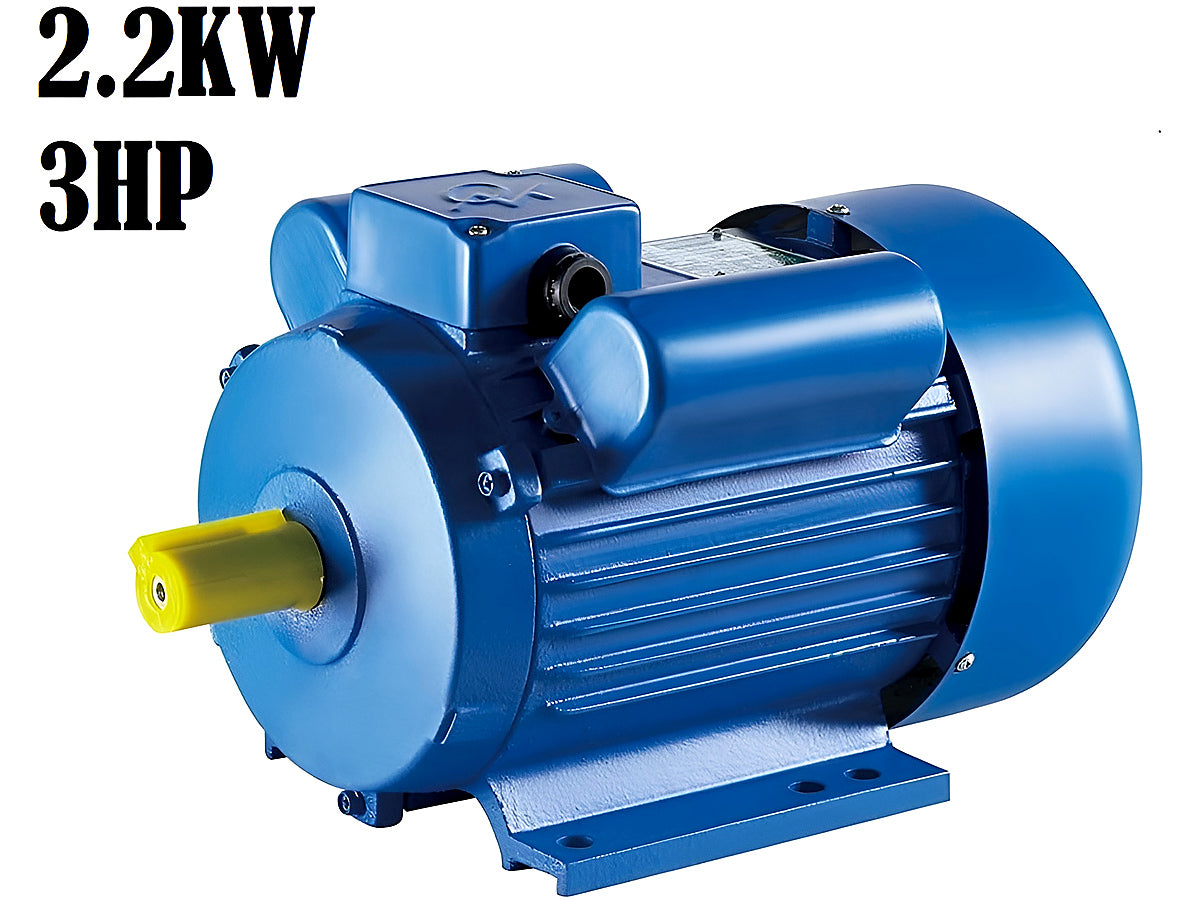

• Electric Motor 3HP 22KW showing cast iron housing side view
  • Close-up of Electric Motor 3HP 22KW shaft with 24mm diameter
1 4

Electric Motor 3HP 2.2KW

Electric Motor 3HP 2.2KW

$220.49 NZD
$220.49 NZD $286.99 NZD
24% OFF
Ships in 1-2 working days!
  • Fast Shipping
  • Secure Checkout
  • Easy Return
  • Fast Reply
Description

Single Phase Electric Motor 3HP 2.2kW 230V, 1400rpm, Dual Capacitor, Cast Iron Housing

A heavy-duty single-phase motor with a dual-capacitor (capacitor start, capacitor run) design. It delivers strong starting torque from a standard 230V supply, which suits workshops, farms and sites without three-phase power.

Specifications

  • Power: 2.2kW (3.0HP)
  • Voltage / Frequency: 230V / 50Hz
  • Rated Current: 13.5A
  • Speed: 1400rpm
  • Starting Capacitor: 200µF / 230V
  • Protection Class: IP44
  • Insulation Class: B
  • Housing: Cast iron

Dimensions

  • Shaft Diameter: 24mm
  • Shaft Length: 50mm
  • Keyway Width: 8mm
  • Baseplate: 152mm W x 174mm L
  • Mounting Holes: 100–125mm front to rear, 140mm across
  • Overall Body Size (excluding shaft): 295mm L x 200mm W x 225mm H

Applications
Air compressors, water pumps, fans, blowers and small machinery where only single-phase power is available.
