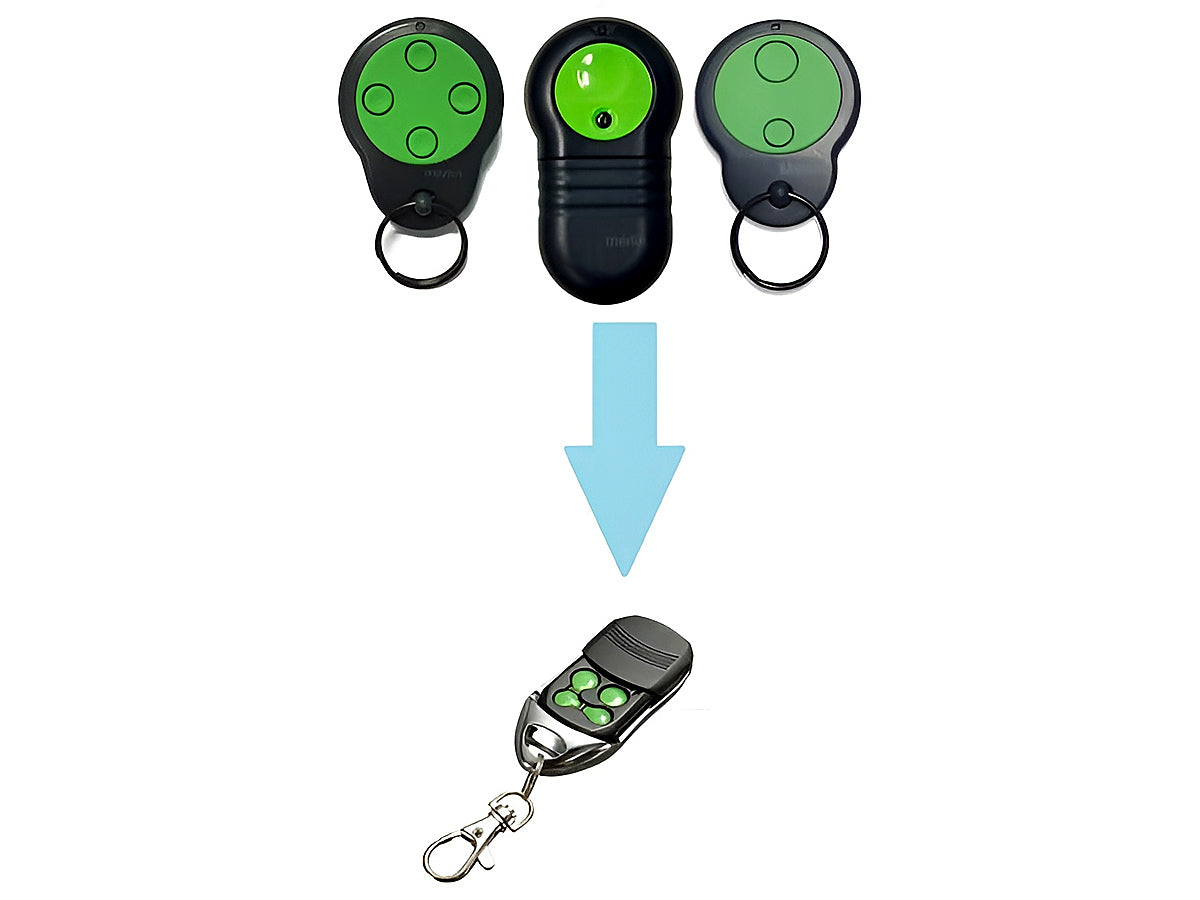

Merlin M842 M832 M844 Garage Remote Replacement

Merlin M842 M832 M844 Garage Remote Replacement remote

Material: ABS & Metal
Color: Green、Black & Chrome

4 Channel: like the picture show
Transmitter Frequency: 433.92 MHz
Size: 53 x 32 x 12mm / 2.04" x 1.26" x 0.47"(LxWxH)

Feature:
Red LED Indicator
Slim Design
Long Range
Compact Pocket Size
Four (4) buttons to operate 4 different garage doors
Original code hopping technology with 100% security
Batteries included
Metal key chain included

Compatibility:
Merlin M832
Merlin M842
Merlin M844
230T
430R

Description :
Garage Door Remote Key Control For Merlin M832 M842 M844 230T 430R

Features :

One to one key copy.
Each key password alone save.
Can continuous repetitive copy use one million times.
Privacy is strong.

Specification :

Working voltage : DC12V (27A battery including)
Material : ABS & Metal
Color : Black & Chrome Green
Operating current : < 8mA
Working frequency : 433MHz
mode : ASK (AM)
power : <100mW
Emission distance : 50 to 100 m (proof)
The encoding type : Self Copy
The working temperature : -10°C to +50°C
Copy chip remote : Merlin M832, Merlin M842, Merlin M844, 230T, 430R etc.
Dimension LxWxH : 70mm x 33mm x 15mm

Operation method :
1. Clear the copy remote controller, Long press the above two keys at the same time and release your hand when the light flash quickly.
2. Press the button of the copyed remote control with one hand, and press the button of the new remote control with the other hand, keep for a few seconds,release when the new remote control lights flash quickly, then the copy succeeds.
3. If all the above operation succeed,the romote control can be used directly. If it can not work,please operate again from Clearing.
4. If you meet misoperation and cancel useful codes,before re-copy, you can press the below two keys at the same time for 2 seconds and release when the lights flash quickly, then the control will be recovered.
