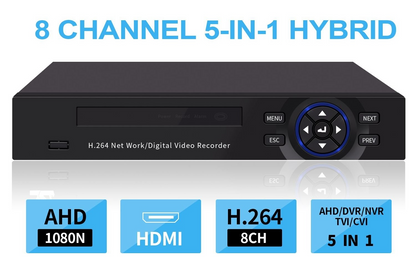

DVR 8CH Digital Video Recorder CCTV Camera System – 5-in-1 Hybrid Surveillance Solution

The DVR 8CH Digital Video Recorder CCTV Camera System offers professional-level surveillance and recording for homes, businesses, and offices. This powerful 5-in-1 DVR 8CH Digital Video Recorder CCTV Camera System supports CVBS, AHD, TVI, CVI, and ONVIF IP camera inputs, providing universal compatibility and stable recording across all modes.

Features

• 5-in-1 Hybrid Design: The DVR 8CH Digital Video Recorder CCTV Camera System supports 1080P NVR, 1080N AHD, 960H Analog, TVI, and CVI formats for flexible setup.
• Full HD Recording: Capture sharp video footage in 1080N/720P/960H/D1 resolution with smooth playback at up to 30fps.
• Multiple Outputs: Supports HDMI and VGA connections for simultaneous display on different monitors.
• Remote Access: Easy P2P setup with QR code scanning using the free XMEYE app for iOS and Android.
• Multi-Language Support: Includes English, German, French, Spanish, Italian, Japanese, and more.
• ONVIF Support: Seamlessly connects with IP cameras following the ONVIF standard.
• Advanced Recording Modes: Choose from Manual, Timing, Alarm, or Motion Detection recording modes.
• Network Connectivity: Supports ONVIF, HTTP, DHCP, PPPOE, DDNS, SMTP, FTP, RTSP protocols for smooth network integration.

Specifications

• Record Resolution: Full 1080N / 720P / 960H / D1
• Signal System: PAL / NTSC
• Frame Rate: 1-30fps
• Outputs: HDMI / VGA synchronous output
• HDD: 1 SATA port (Supports up to 3TB)
• USB: 2 x 2.0 ports
• Audio Input/Output: RCA 4 / RCA 1
• Browsers: IE, Safari, Chrome, Firefox
• Backup: Network / USB / HDD

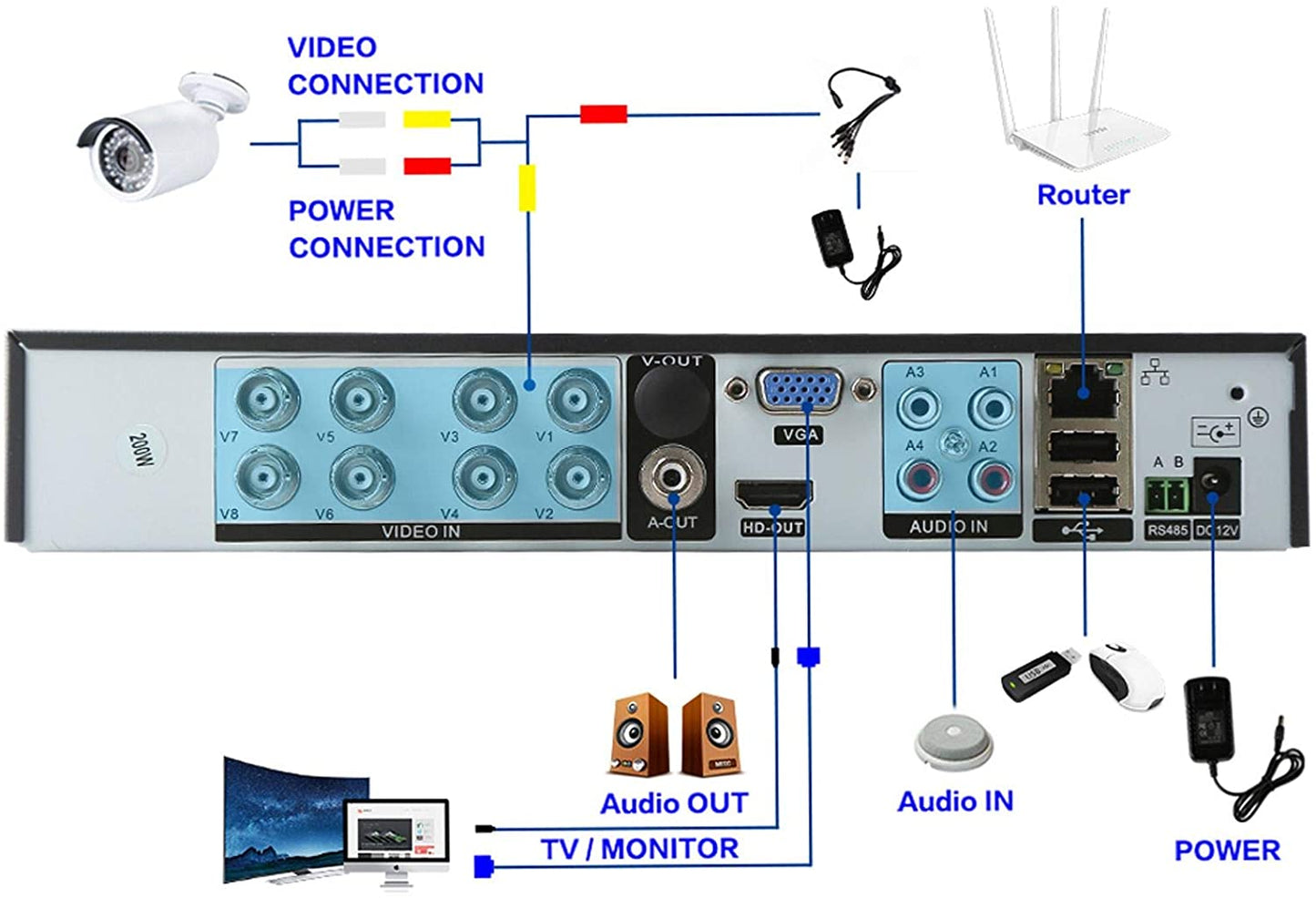

Easy P2P Setup

• Step 1: Connect DVR to cameras and monitor.
• Step 2: Connect DVR to internet for remote viewing.
• Step 3: Download XMEYE app on your phone.
• Step 4: Scan QR code and start live view instantly.

Package Content

• 1 x 8CH 1080N AHD DVR (No HDD)
• 1 x DC12V/2A Adapter
• 1 x Mouse
• 1 x User Manual

The DVR 8CH Digital Video Recorder CCTV Camera System offers strong performance, multiple format compatibility, and easy setup, making it a top choice for secure, reliable video surveillance.
