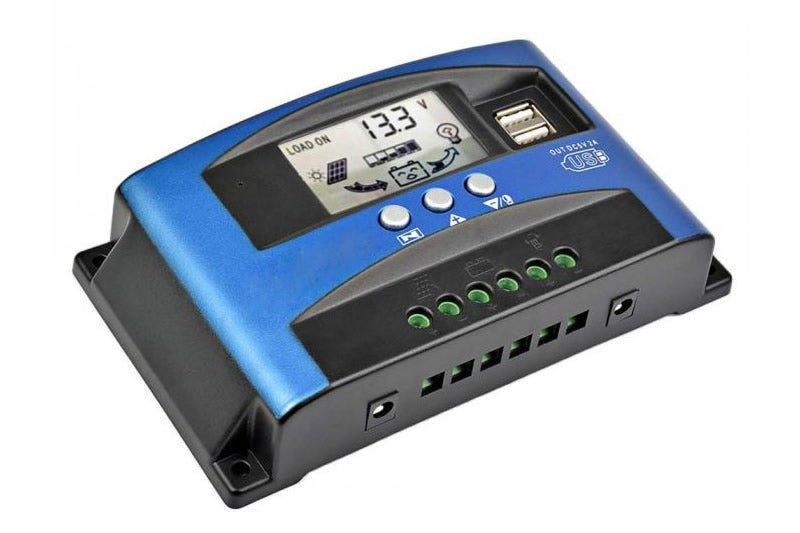

Solar Controller

Product Description
$34.99
Maximum quantity available reached.

Solar Controller Features:

Features:

1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,
discharge current accurate real-time display, power generation at a glance.
2. Automatic focusing PWM tracking charging, high charging efficiency, non-stop detection
during charging, bidirectional focusing tracking.
3. Large-screen LCD display, adjustable charging and discharging parameters. ultra-wide charge
and discharge adjustable, as long as you understand the characteristics of the battery set its
corresponding charging parameters, you can charge a battery. When the output is off, the time
can be adjusted, which is more convenient. (on the market, there is no point adjustment)
4. A complete three-phase charge management, effectively protect the battery, the battery is more
durable.
5. Solar Controller has Built-in overheating, over current short circuit, open circuit protection, reverse connection
protection,when the fault is eliminated, the PWM solar charge controllerautomatically recovers, does not damage
the device.
6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.
PWM Solar Charge Controller


Specs
1. Rated voltage: 12/24V
2. Rated current: 30A
3. Max. PV Voltage: 50V
4. Max. PV input power: 390W(12V) / 390W(24V)

Function:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the PWM solar charge controller will automatically cut off the load from the system. If the voltage of the battery is back to normal and the load will restart working.


Package Includes:
1 x Solar Panels Battery Charger Solar Controller PWM
1 x User Manual
