Solar Controller 20A

Product Description
$13.19
Maximum quantity available reached.

20A Solar Panel Charge Controller Intelligent Regulator 12V/24V Auto Big LCD Solar Controller with 5V Dual USB Output for Home PV System

Solar Controller Features:
The multi-functional LCD display dynamically displays all the operating data and a working condition can be conveniently switched working modes and parameter configuration.

Solar Controller Dual MOSFET Reverse current protection, low heat production.
Built-in short-circuit protection, open-circuit protection, reverse protection, overload protection, more safety for using, suitable for home, industrial, commercial etc.
12V/24V auto work; LCD screen display; Two USB output; Easy operation interface.

With Dual USB Output Solar Charge Controller
With USB charge caution Solar Charge Controller
With DC function Solar Charge Controller

1.Floating charge Voltage(HVD 13.3V-15V)
2. Recovery after under Voltage(LVD 11V-13.5V)
3.Under Voltage protection (RVD 9V-12.3V)
4.Load Mode(24hours,1-23hours,0hour)
5.Battery Option (GEL, LEAD-ACID, FLOODED)


Solar Controller description

Solar Controller Battery voltage: 12V/24V auto

Charge current: 20A

Discharge current: 20A

Max Solar input: <50V

Equalization: B01 sealed 14.4V

B02 Gel 14.2V

B03 flood 14.6V

Float charge: 13.7V(default,adjustable)

Discharge stop: 10.7V(defaul,adjustable)

Discharge reconnect: 12.6V(defaul,adjustable)

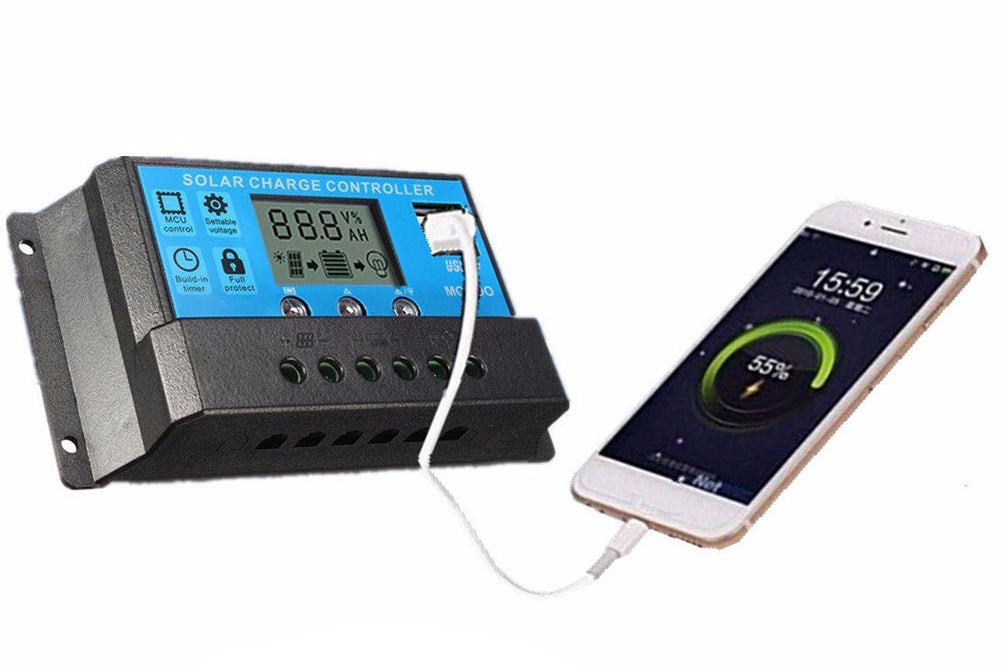

Solar ControllerUSB output: 5V/3A

Self-consume: <10mA

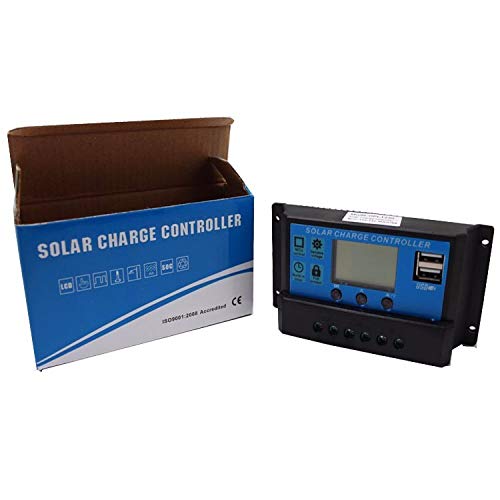

Package:
30A Solar Charge Controller
English User Manual
