Solar Power Controler MPPT 50A

Product Description
$374.99
Maximum quantity available reached.

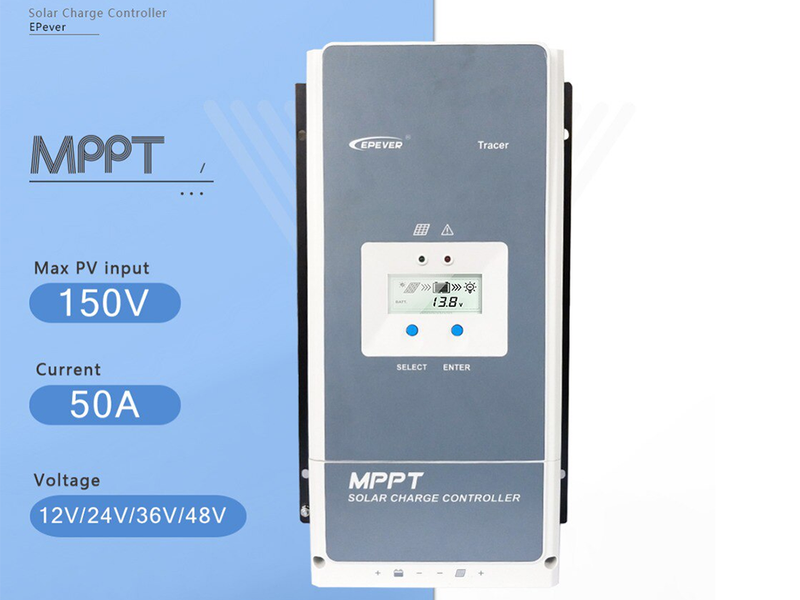

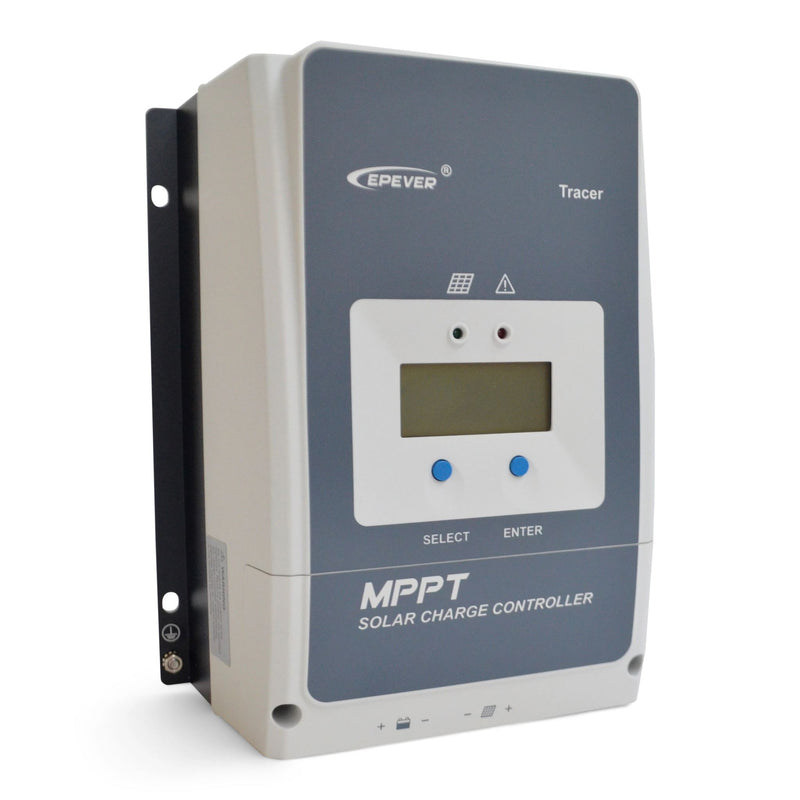

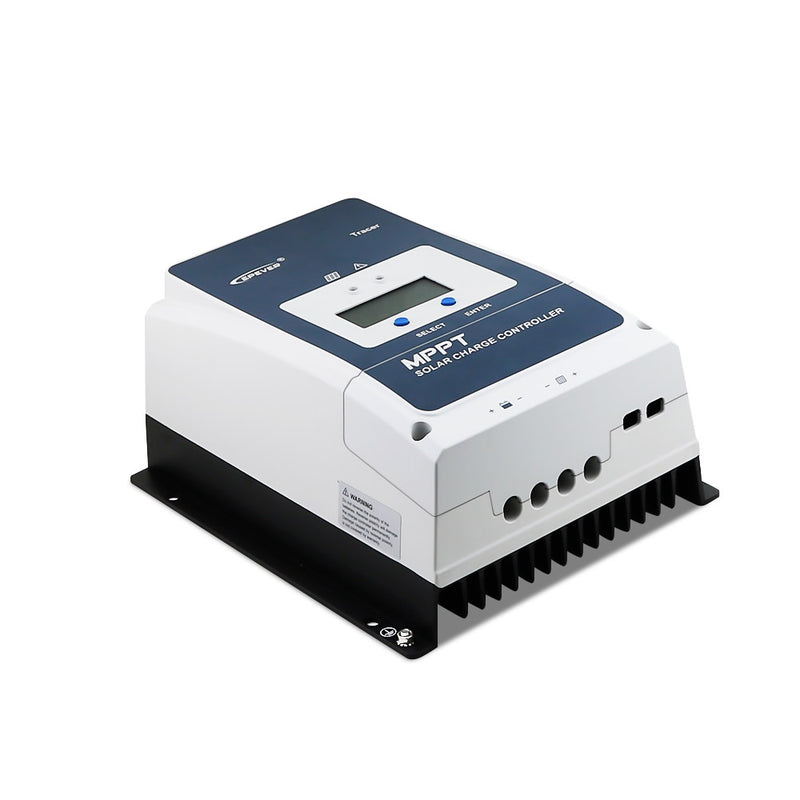

50A Tracer MPPT Solar Charge Controller Regulator

50A upgrade Tracer 5415AN MPPT Solar Charge Controller 12V 24V Auto Work Tracer AN series

Specification
Multiple load control modes: manual control, lighting ON/OFF, light On+Timer
Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%
Wide MPPT operating voltage range.
12/24VDC automatically identifying system voltage.

Specification:
Nominal System Voltage 12/24/36/48VDC Auto
Battery Input Voltage Range 8V~68V
Battery Type Sealed(Default)/Gel/Flooded/User
Battery fuse 80A/58V
Rated charge current 625W/12V 1250W/24V 1875W/36V 2500W/48V
Max. PV open circuit voltage 150V
MPP Voltage Range (Battery Voltage +2V)~108V
Temperature compensate coefficient -3mV/°C/2V(Default)
Self-consumption 98mA/12V;60mA/24V;50mA/36V;46mA/48V
Grounding Common negative grounding
Relay Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
RS485 interface RS485(RJ45)
LCD backlight time Default:60S,Range:0~999S(0S:the backlight is ON all the time)
Enclosure IP20
Pollution degree PD2
Dimension 261×216×119mm
Mounting dimension 180×204mm
Mounting hole size Φ7
Terminal 6AWG/16mm 2
Recommended cable 6AWG/16mm 2


Electronic protections:
PV reverse polarity protection
PV short circuit protection
PV over current alarm protection
Load short circuit protection
Load overload protection
Controller Overheating protection
Battery overvoltage protection
Battery over discharge protection
Battery reverse polarity protection
MT-50 Features

Automatic identify the controller and display the type, model and relevant parameter data
Real-time energy statistics recording
Longer communication distance based on RS485
More powerful function Via MT50

Diversified load control modes: manual, light ON/OFF, Light ON+ Timer, Time Control
Battery type selection: Gel, sealed, flooded and USER type
Package List:

1 x Tracer 5415AN Solar Charging Controller
1 x User Manual
